MIC200-IR3 IR Flammable Detector Quick Alarm With 3 IR Sensor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Infrared UV Flammable Gas Detector | Gas | Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene |
|---|---|---|---|
| IR Sensor | 3 | Response Spectral Range | 4-5um |
| Viewing Angle Range | 90 ° | Output | RS485,4~20mA |
| High Light | quick alarm ir3 flame detector,ir3 infrared flame detector,quick alarm infrared flame detector |
||
Product Description

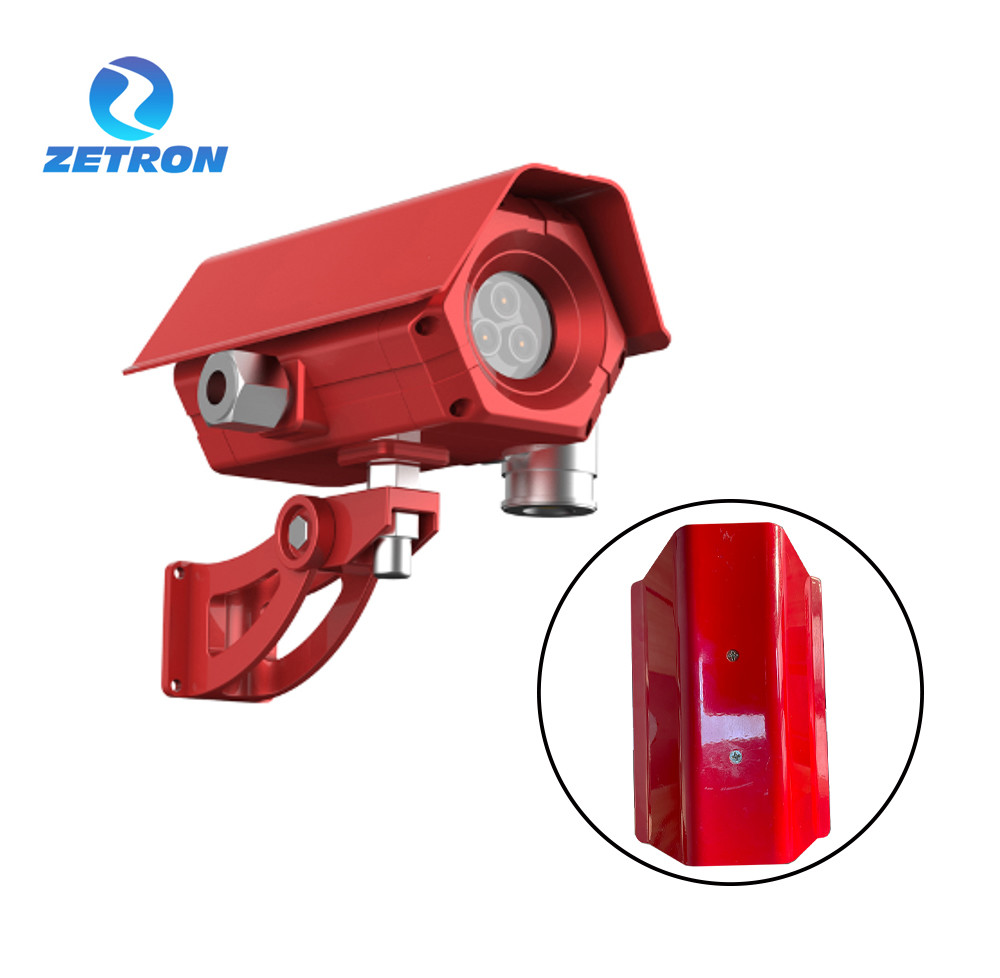

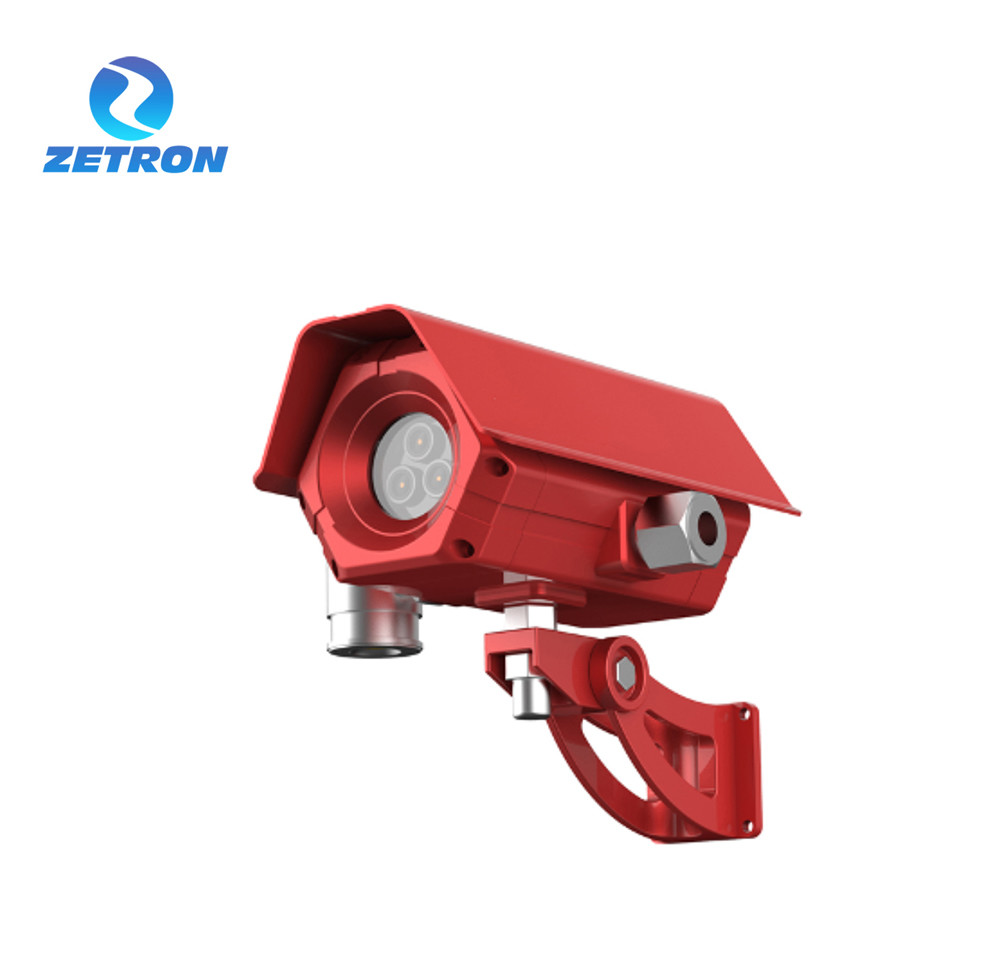

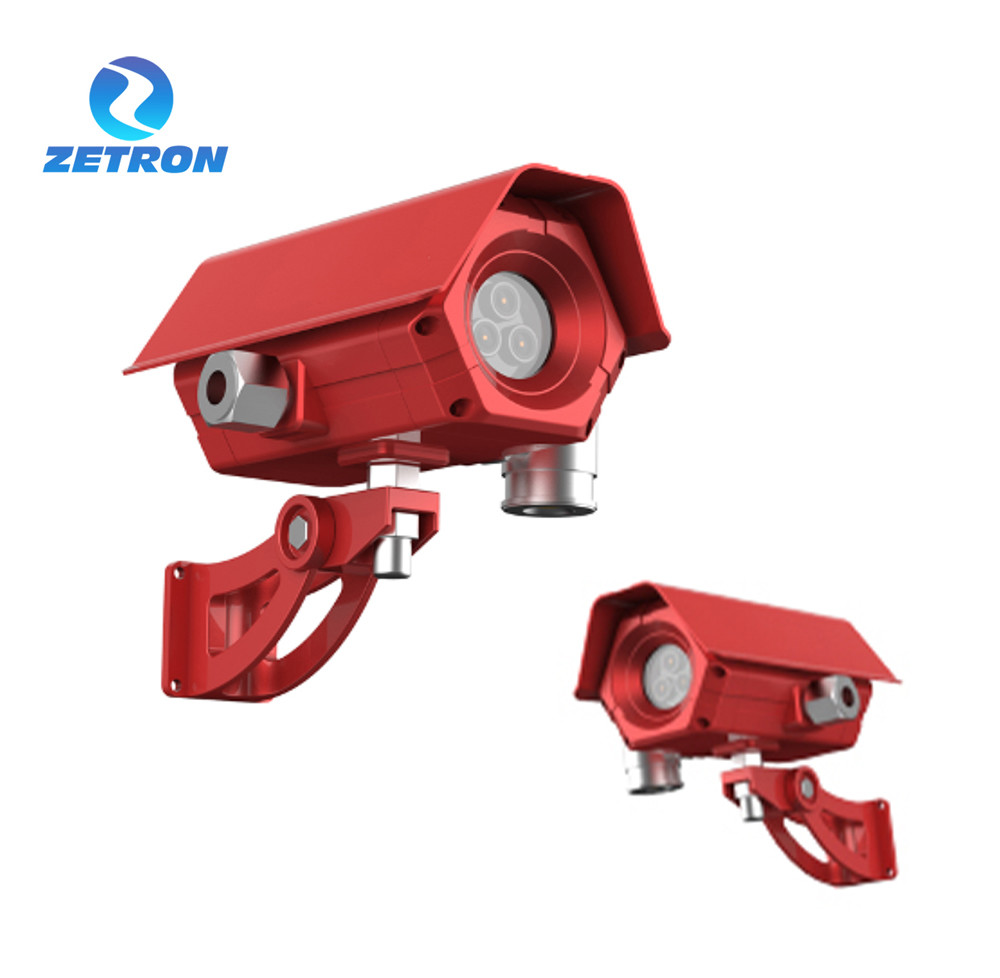

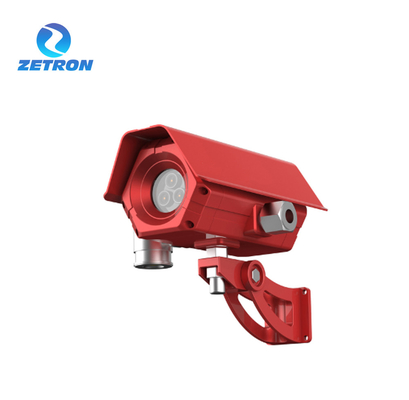

MIC200-IR3 Infrared Flammable Gas Detector
OVERVIEW
The 3-band infrared flame detector is a high-quality and reliable flame detector that uses advanced flame analysis and identification technology. It responds quickly to infrared radiation in fires and has the highest immunity to false alarms. The detector contains three narrowband infrared sensors (4-5 µm) and an optical filter, which is sensitive to the CO2 emission spectrum (4.4 µm). Developed by the principle of three-wavelength infrared detection, with a high degree of immunity to false alarms.
SPECIFICATION
|
Response spectral range
|
4-5um
|
| Viewing angle range |
90 °
|
| Detection distance |
30--50 meters (depends on the burning material)
|
| Ambient temperature |
-10 ~ 55 ℃
|
| Working current | current≤25mA, alarm current≤35mA |
| Explosion-proof grade |
EXdⅡCT6
|
| Protection grade |
IP66
|
| Signal output | 4~20mA three-wire system output |
| Installation method | wall or ceiling |
| Dimensions |
19*16*11 cm
|
| Shell material |
aluminum alloy, surface anticorrosive paint sprayed
|
| Weight | 1.7 Kg |
| Advantages | dustproof, explosion-proof, corrosion-proof |
FEATURES & BENEFITS
- Double bandpass filters that fully compensate for all types of fog, rain and/mist interference
- 100% Solar Immune
- Correct operation under partial obscuration conditions
- Radially symmetrical and bonded window heating delivers good low-temperature performance
- Coaxial optics delivers best-in-class performance and resilience to partial obscuration
- Low power consumption in all conditions
- Higher power and more robust design telescope
- Optional Modbus RS485 multi-drop output
- FM hazardous area and performance Approved
- ExdII CT6 explosion-proof grade, suitable for zone 1 and zone 2 hazardous locations
APPLICATION
• Offshore platforms & vessels
• Downstream chemical processing plants
• Perimeter detection
• Gas transport and pipelines
• Large storage areas & buildings
