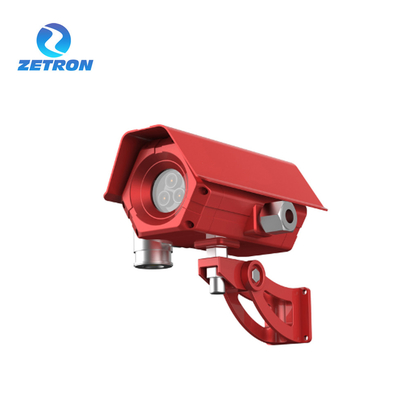

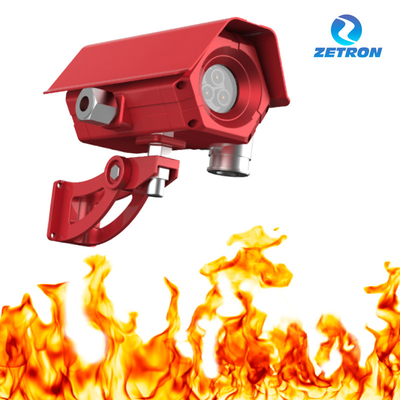

MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring

  • MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring
  • MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring
  • MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC200-IR4
Minimum Order Quantity 1 piece
Price USD 500-- 3000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Infrared Flammable Gas Detector Gas Methane
IR Sensor 4 Response Spectral Range 4-5um
Viewing Angle Range 90° Protection Grade IP66
High Light

open path ir flame detection

,

long distance ir flame detection
Leave a Message
Product Description

MIC200-IR4 Infrared Flammable Gas Detector

OVERVIEW



Developed by the principle of three-wavelength infrared detection, it is highly immune to false positives. It responds quickly to infrared radiation in fires and has the highest immunity to false alarms. The detector contains three narrowband infrared sensors (4-5 µm) and an optical filter. Easy installation, the detection angle can be adjusted 360 °.



FEATURES & BENEFITS
  • Double bandpass filters that fully compensate for all types of fog, rain, and mist interference
  • Higher power and more robust design telescope
  • Radially symmetrical and bonded window heating delivers good low-temperature performance
  • Coaxial optics delivers best-in-class performance and resilience to partial obscuration
  • Fully temperature-compensated solid-state detectors
  • Three-wire current ring and relay are optional
  • Low power consumption in all conditions
  • FM hazardous area and performance Approved
  • Exd II CT6 explosion-proof grade, suitable for hazardous sites in zones 1 and 2
SPECIFICATION



Response spectral range
4-5um
Viewing angle range
90 °
Detection distance
30--50 meters(depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage DC24V
Explosion-proof grade
EXdⅡCT6
Protection grade
IP66
Signal output 4~20mA three-wire system output
Dimensions
19*16*11 cm
Shell material
aluminum alloy, surface anticorrosive paint sprayed
Weight 1.7 Kg
Advantages dustproof, explosion-proof, corrosion-proof





MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring 0

MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring 1MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring 2MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring 3

MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring 4

APPLICATION



• Offshore platforms & vessels (FPSO’s)

• Downstream chemical processing plants

• Large storage areas & buildings
• Gas transport and pipelines
• Perimeter detection



MIC200-IR4 Open Path IR Flame Detection Long Distance Methane Gas Leak 90 Degree Monitoring 5
