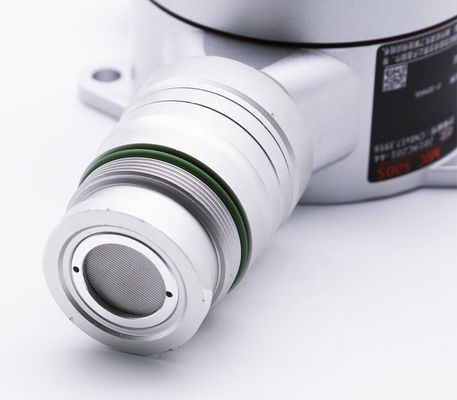

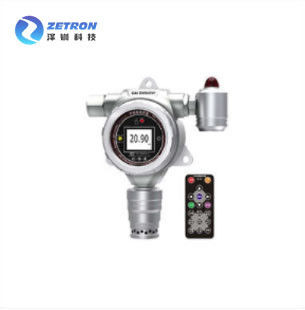

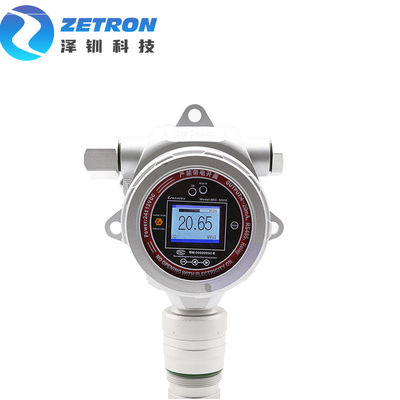

MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500S
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Brand Name Zetron
Model Number MIC500S Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l
Display Method 1.7-inch High-definition Color Screen Protection Level IP65
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

MIC500S Fixed Gas Detector

,

1.7 Inch Screen Fixed Gas Detector

,

HD Color Screen Fixed Gas Analyzer

Leave a Message
Product Description



MIC500S Fixed Toxic And Harmful Gas Detector



OVERVIEW



MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.
MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 0

FEATURES

MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 1

①It can be used in 24 hours continuous online monitoring of single field gas concentration
and the types for detection are more than 500 types.
②There are 7 gas units to display, and the units can be switched freely.
Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.

MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 2

1.7-inch high-definition color screen, display the real-time concentration, and alarm state.
MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 3

MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 4

①It is possible for the real-time monitoring via the wired or remote wireless transmission, and network transmission.
②Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (modbus-RTU) simultaneous output.
③It is possible to select frequency output 200-1000Hz, Hart protocol signal, 1 ~ 5V output,
two-wire system 4 ~ 20mA, SMS alarm, wireless transmission (2 ~5 km or unlimited distance).
④It is compatible with secondary instrument, data acquisition module, PLC, DCS system,
and it is possible to drive the related equipment.


MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 5

①Multiple alarm modes
Alarm types include: concentration alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
②Zero-point automatic tracking; long-term use will not be affected by the zero drift.
③Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
④Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions,
sensor service life due reminder, and function of reminder for the time of next concentration calibration.
⑤Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.


MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 6

Standard configuration includes the infrared remote control, it is possible for one-key operation via infrared remote
control function key, which can achieve the operation without opening the cover under hazardous situations.
such as: the functions like modification of the alarm point, density calibration, zero-point calibration, noise reduction,
restoring the factory setting, and so on.



MIC500S Online Fixed Gas Detector With 1.7 Inch High Definition Color Screen 7
■Integrated sound & light alarming device, split-type sound & light alarming device,
■Wireless transmission
①It is possible to transfer data wirelessly to the cell phone, remote monitoring center,
monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize
the functions of data analysis, storage, printing or the like on the computer.
■ Pretreatment system
①Room temperature and high humidity pretreatment system
②High temperature and high humidity pretreatment system
③High temperature and high humidity and high dust pretreatment system
■Installation type accessories
①wall mounting bracket;
②mounting clips for fixation on the pipes (1/2", 3/4" pipe);
③stainless steel threaded welding seat or flange to be installed on the pipeline
(it is necessary to mark the flange or pipe size, such as DN50, DN15 ...);
④Rain cover;
⑤24VDC or 220AC sampling pump (sampling distance is 10 m);
⑥vacuum pump (sampling distance is greater than 40 m);
⑦24V switching power supply;
⑧pressure reducing valve;
⑨flow meters.



APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
