Fast Response Fixed Multi Gas Detector O2 CO CO2 CH4 In Situ Laser Process Gas Analyzer

  • Fast Response Fixed Multi Gas Detector O2 CO CO2 CH4 In Situ Laser Process Gas Analyzer
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number GasTDL-3100
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range O2: (0~5)%VOL(100% Can Be Customized） CO: (0~100)%VOL CO2: (0~100)%VOL CH4: (0~20)%VOL Measurement Component O 2 , CO, CO 2 , CH 4 *
Ex-proof Grade Exd II CT6 Resolution 0.01% VOL
Working Temperature (-20~+60)℃ Power Supply 24V DC, 24W
Highlight

ISO9001 Fixed Multi Gas Detector

,

CH4 Fixed Multi Gas Detector

,

TDL-3100 Laser Process Gas Analyzer
Leave a Message
Product Description

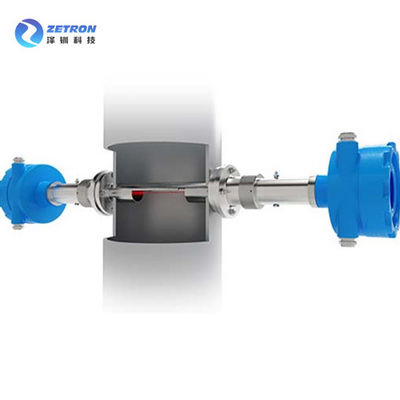

In-situ Laser Process Gas Analyzer



OVERVIEW



In-situ laser process gas analyzer GasTDL-3100 is a high-performance laser gas analyzer based on tunable diode laser absorption spectroscopy technology (TDLAS).
With a cross-stack design, GasTDL-3100 can be used for industrial process gas control; The response time is fast, which is generally calculated in seconds in in-situ measurement. It can avoid the time delay caused by sampling measurement. The gas component concentration can be reflected online and in real time.



FEATURES

• Adopts TDLAS technology, no cross-interference from other gas
• In-situ installation, no need for sampling or pretreatment system
• Fast response time(T90≤4s), can reflect the gas concentration in real time
• Real-time online measurement, the gas concentration is not easy to be distorted, and the measurement accuracy is high
• Good adaptability in harsh measurement environments such as high temperature, high dust, high moisture, high corrosion, high flow rate, etc.
• Explosion-proof design, high safety factor
• Simple structure, no consumables or moving parts, maintenance-free

SPECIFICATION



Measurement Component O 2 , CO, CO 2 , CH 4 *
Measurement Principle TDLAS
Measurement Range O2: (0~5)%VOL(100% can be customized)
CO: (0~100)%VOL
CO2: (0~100)%VOL
CH4: (0~20)%VOL
Precision ≤±1%F.S.
Repeatability ≤±1%F.S.
Drift ≤±1%F.S.
Resolution 0.01% VOL
Response time T 90 ≤4s
Working Parameter
Ex-proof Grade Exd II CT6
Installation Method In-situ Installation
Working Temperature (-20~+60)℃
Power Supply 24V DC, 24W
Purge Gas Source (0.3~ 0.8) Mpa Industrial N2
Interface Signal
Communication RS485,RS232
Analog signal 2 channels 4~20mA output
3 relay outputs



APPLICATION



Metallurgy Blast furnace ironmaking Blast furnace gas analysis CO, CO 2 , O 2 , CH 4
Safety control of blast furnace coal injection O 2 , CO
Hot blast stove flue gas analysis O 2 , CO
Converter steelmaking Converter gas recycle O 2 , CO
Converter gas safety control About 2
Carbon determination of converter flue gas CO, CO 2 , O 2
Coking production Electric coke catching safety control CO, O 2
Analysis of Coke Dry Quenching (CDQ) Circulating Gas CO, CO 2 , O 2
Coke oven gas analysis H 2 S, NH 3
Other Gas calorific value analysis CO, CH 4
Boiler flue gas analysis CO, O 2
Petrochemical Oil refining Catalytic Cracking (FCC) regeneration
flue gas analysis		 CO, CO 2 , O 2
Hydrogen production from alkanes CO, CO 2 , CH 4
Sulfur recovery About 2
Ethylene cracking Reactor outlet, etc. CO, CO2 etc
EO / EG Process gas O2, C2H4 etc
ON Process gas About 2
PP Process gas About 2
Ethylbenzene/styrene monomer/PS Process gas O2, CO/ CO2 trace water in Benzene
PTA Oxidation reactor control CO, CO 2 , O 2
Coal gas Process gas About 2
Methanol/synthetic ammonia/urea Process gas O2, CO, CO2, NH3 etc
Carbon ratio of urea to ammonia NH 3 , CO 2
Chlor-alkali/PVC Trace water in Cl2 H 2 O
Trace water in EDC H 2 O
Synthetic cycle gas O2, CO2, C2H4 etc
Oxychlorination process O2, CO2, C2H4 etc
VCM tail gas recycle About 2
Hydrogen peroxide Oxidation process About 2
Acid production with Sulfuric Oxidation process About 2
TDI Water gas About 2
Environmental protection Flue Gas Emission Analysis of flue gas from waste incineration HCL, HF, CO, CO2, O2
Flue gas denitration process control NH3, NO, NO2
Combustion process control O 2 , CO, CO 2
Cement Cement Production Control of the combustion process at the inlet and outlet of the rotary kiln O 2 , CO, CO 2
Coal injection (mill, pulverized coal silo) safety monitoring O 2 , CO
Combustion control of preheater and cyclone heater O 2 , CO, CO 2
Electricity Thermal power generation Combustion control O 2 , CO
Coal injection (mill, pulverized coal silo) safety monitoring O 2 , CO
