Portable Syngas Flue Gas Analyzer CO CO2 CH4 H2 O2 CnHm Lightweight

  • Portable Syngas Flue Gas Analyzer CO CO2 CH4 H2 O2 CnHm Lightweight
  • Portable Syngas Flue Gas Analyzer CO CO2 CH4 H2 O2 CnHm Lightweight
  • Portable Syngas Flue Gas Analyzer CO CO2 CH4 H2 O2 CnHm Lightweight
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-3100P
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component CO, CO2, H2, O2, CH4, CnHm, C2H2 And C2H4 Working Temperature (0~+50)℃
Size 410*150*290mm Weight 5kg
High Light

CnHm Flue Gas Analyzer

,

Lightweight Flue Gas Analyzer

,

Portable Syngas Analyzer
Leave a Message
Product Description

Portable Infrared Syngas Analyzer



OVERVIEW



Portable Infrared Syngas Analyzer—Gasboard 3100P is the portable version of Gasboard-3100. With its small size, high accuracy, short response time, simple operation, rechargeable lithium battery power supply system, Gasboard-3100P is an ideal measurement solution for direct sampling from pipe at industrial site and gas-bag sampling analysis in laboratory, etc.

Syngas analysis technology from Cubic-Ruiyi instrument is protected by Patent Cooperation Treaty (PCT).

Gasboard syngas series analysis instruments can be used for measurement of the concentration of up to 8 gases such as CO, CO2, H2, O2, CH4, CnHm, C2H2 and C2H4 simultaneously, and calculate the gas heating value (caloric value) and N2 balance automatically. It is the best tool to help you:

To check whether the gas is still being produced to decide the feedstock cycle and the best ratio.

To check the quality of the gas being produced prior to use in some industrial process.

To check the quality of the gas and optimize the gasification technical process.



FEATURES

• Modular sensor design ensures easy operation and maintenance.
• Compact and robust design with light weight, convenient for different sites usage.
• With LCD display to indicate all data index and tactile keypad easy for operation.
• Equipped with sample gas flow meter and needle valve to regulate the inlet gas flow
• With constant temperature enclosure for NDIR and TCD sensors to avoid influence by temperature fluctuation and improve the measurement accuracy.
• With function of auto-zeroing, efficiently decrease the calibration frequency.
• In-built sampling pump for low pressure application.
• External safety filter to protect analyzer from impurities
• Internal rechargeable Li-ion battery for over 4hrs full function operation
• Internal data logger for up to 1500 sets of data and RS232 COM port for data output.
• New generation modular syngas analyzer has equipped with a Bluetooth module. Assist with a smartphone APP software, it can realize remote control, data download, and remote online diagnosis function in the near future.　　
• Online Heating Value calculation in real time, freely switchable between MJ / m³ or kcal / m³, and between HHV or LHV.



SPECIFICATION



General Parameter
Measurement CO, CO2, CH4, H2, O2, CnHm
  N2 & calorific value calculation
Technology CO,CO2.CH4 CnHm (NDIR)
  O2 (ECD), H2(TCD)
Range CO 0-30%, CO2 0-25%, CH4 0-10%
  H2 0-30%, O2 0-25%,CnHm 0-5%
  Measurement range can be customized
Resolution CO, CO2. CH4H2. O2, CnHm 0.01%
Precision CO, CO2. CH4 H2.O2 CnHm ≤2% FS
Repeatabilty CO, CO2, CH4, H2, O2, CnHm≤1%
Flow 0.7-12 L/min
Inlet pressure 2KPa-50KPa
Sampling gas condition No water vapor, no dust, no tar
Response time(T90) <15s (NDIR)
Communication interface RS-232
Power supply built-in rechargeable lithium batter
Working Environment
Working temperature 0 to 50 ℃
Relative humidity ≤95% non condensing
Ambient pressure 86-108 kРа
Dimensions
Size 410mm(L) 150mm(W) 290mm(H)
Weight 5kg



APPLICATION

Gasboard syngas series analysis instruments is widely used in various applications from lab research scale to industrial scale, including energy production field, steel making processes, chemical conversion and oil & gas explore applications.
　
Energy production:
• Biomass or coal gasification /pyrolysis
• Waste to Energy
• Plasma gasification
　　
Steel making
• Blast furnace
• Converter
• Coking
• Direct iron ore smelting reduction processes
• Heat treatment

Chemical conversion:
• Hydrogen,
• Methanol,
• Ammonia
• and other chemicals
　　
Oil & gas explore applications
• Natural Gas
• Coal Bed Gas
• Biomethane
• Mud logging

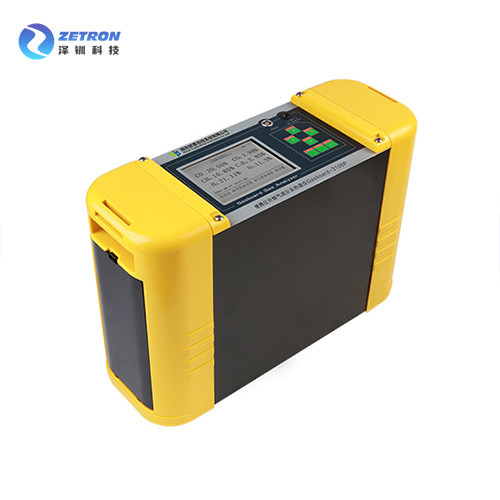

Portable Syngas Flue Gas Analyzer CO CO2 CH4 H2 O2 CnHm Lightweight 0

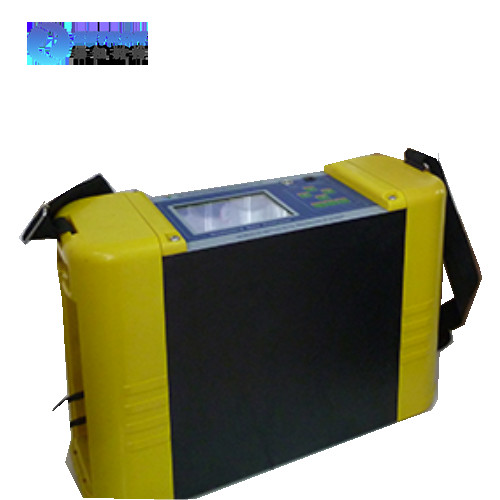

Portable Syngas Flue Gas Analyzer CO CO2 CH4 H2 O2 CnHm Lightweight 1
