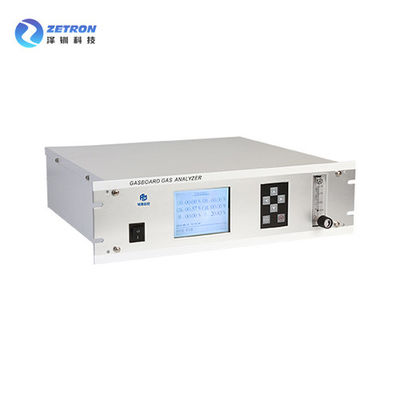

Online Infrared Syngas Analyzer CO CO2 H2 O2 CH4 CnHm C2H2 C2H4 Coal Gas Analyzer

  • Online Infrared Syngas Analyzer CO CO2 H2 O2 CH4 CnHm C2H2 C2H4 Coal Gas Analyzer
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard 3100 & 3100 PRO
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component CO CO2 H2 O2 CH4 CnHm C2H2 C2H4 Working Temperature (0~+50)℃
Size 483*457*132mm Weight 12kg
Highlight

Online Infrared Syngas Analyzer

,

C2H4 Coal Gas Analyzer

,

C2H2 Coal Gas Analyzer
Leave a Message
Product Description

Online Infrared Syngas Analyzer

OVERVIEW



Syngas(synthesis gas), which is also called as coal gas or producer gas, is a kind of combustible gas mixture of nitrogen, carbon monoxide, and hydrogen, mainly generated by passing air with steam over burning coke or coal in a gasifier and used as fuel for different industries like steel making, cement, power plant, and other high fuel consumption industries.
Syngas analysis technology from Cubic-Ruiyi instrument is protected by Patent Cooperation Treaty (PCT).
Gasboard syngas series analysis instruments can be used for measurement of the concentration of up to 6 gases such as CO, CO2, H2, O2, CH4, CnHm, C2H2 and C2H4 simultaneously, and calculate the gas heating value (caloric value) and N2 balance automatically. It is the best tool to help you:
• To check whether the gas is still being produced to decide the feedstock cycle and the best ratio.
• To check the quality of the gas being produced prior to use in some industrial process.
• To check the quality of the gas and optimize the gasification technical process.



FEATURES



• Modular sensor design ensures easy operation and maintenance.
• Standard 19’’ 3U industrial enclosure design, easily to be integrated into different kind of industrial systems.
• With LCD display to indicate all data index and tactile keypad easy for operation.
• Integrated RS232/RS485 digital output and 4-20mA analog output, easy to be acquired by project center controlling system and satisfy the continuous monitoring demand.
• Equipped with sample gas flow meter and needle valve to regulate the inlet gas flow and internal gas filter to protect the gas sensor from impurities.
• With constant temperature enclosure for NDIR and TCD sensors to avoid influence by temperature fluctuation and improve the measurement accuracy.
• With function of auto-zeroing with in-built auto-zero pump, efficiently decrease the calibration frequency.
• New generation modular syngas analyzer has equipped with a Bluetooth module. Assist with a Smartphone APP software, it can realize remote control, data download, and remote online diagnosis function in the near future.
• Adopt international advanced NDIR and TCD gas analysis technology.
• Can measure the concentration of CO, CO2, CH4, H2, O2, CnHm simultaneously.
• CnHm gas has no interference with CH4 measuring result.
• Precisely measure CO content in high concentration CO2
• H2 reading by patented Thermal Conductivity Detecting technology, with compensation for the interference effects of the CO, CO2 ,CH4 measured.
• No effect from flow fluctuation on H2 reading
• Online Heating Value calculation in real time, freely switchable between MJ / m³ or kcal / m³, and between HHV or LHV.



SPECIFICATION



Infrared Detector(NDIR Dual-beam)
Gas Lowest Range Highest Range Low Range Resolution High Range resolution  Accuracy
CO  0-5% 0-100% 0.001% 0.01% ≤1%FS
CO2 0-5% 0-100% 0.001% 0.01% ≤1%FS
CH4 0-5% 0-100% 0.001% 0.01% ≤1%FS
CnHm 0-5% 0-20% 0.001% 0.01% ≤1%FS
C2H2 0-5% 0-20% 0.001% 0.01% ≤1%FS
C2H4 0-5% 0-20% 0.001% 0.01% ≤1%FS
Thermal Conductivity Detector(TCD)
H2 0-10% 0-100% 0.01% 0.01% ≤3% FS
Electrochemical Detector(ECD)
O2 0-25% 0.01% 0.01% ≤3% FS
Gas flow   0.7 to 1.2 L/min
Inlet pressure 2kPa-50kPa
Sampling gas requirement  No dust, no water, no tar
Response time <10s(NDIR)
Warm-up time 800 seconds (auto-zeroing cycle during the last 120 seconds)
Communication port RS232
Output 4-20mA
Power supply 220 v + 44 v AC 50 hz + 1 hz



APPLICATION

Gasboard syngas series analysis instruments is widely used in various applications from lab research scale to industrial scale, including energy production field, steel making processes, chemical conversion and oil & gas explore applications.
Energy production:
• Biomass or coal gasification /pyrolysis
• Waste to Energy
• Plasma gasification
Steel making
• Blast furnace
• Converter
• Coking
• Direct iron ore smelting reduction processes
• Heat treatment
Chemical conversion:
• Hydrogen,
• Methanol,
• Ammonia
• and other chemicals
Oil & gas explore applications
• Natural Gas
• Coal Bed Gas
• Biomethane
• Mud logging

Online Infrared Syngas Analyzer CO CO2 H2 O2 CH4 CnHm C2H2 C2H4 Coal Gas Analyzer 0

Online Infrared Syngas Analyzer CO CO2 H2 O2 CH4 CnHm C2H2 C2H4 Coal Gas Analyzer 1
