CDM Project Flue Gas Analyzer Multiple Sampling Points Online Biogas Monitoring System

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-9060
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component CH4, CO2, O2, H2S Inlet Pressure 2kPa-50kPa
Work Temperature -15℃ To + 45℃ Gas Flow 0.7-1.2L / Min
Size 700*450*220mm Weight 5kg
High Light

CDM Project Flue Gas Analyzer

,

Multiple Sampling Points Flue Gas Analyzer

,

Cdm Project Online Biogas Monitoring System

Leave a Message
Product Description

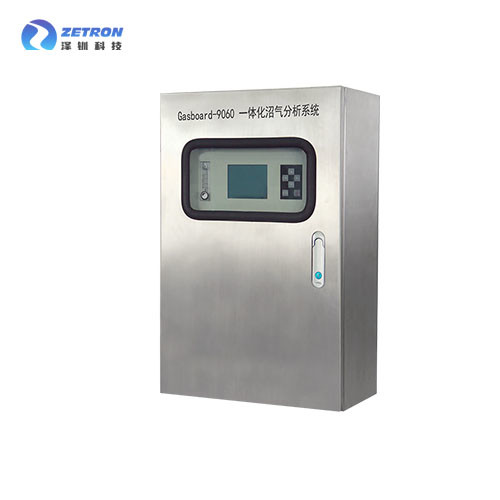

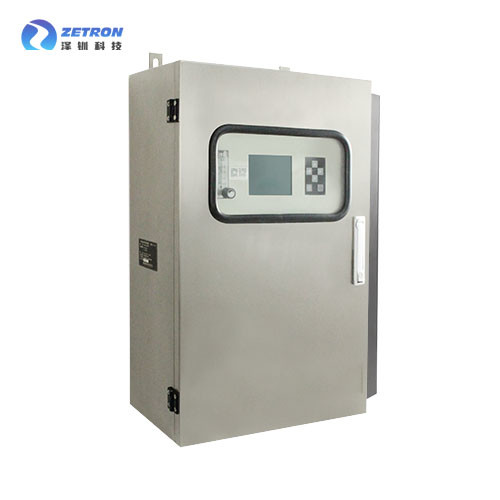

Online Biogas Monitoring System

OVERVIEW



Gasboard-9060 Online Biogas Monitoring System is designed to measure the concentration of CH4 ,CO2 ,H2S and O2 continuously in different biogas applications. It consists of four parts: Gas sampling and conditioning unit, Gas analysis unit, Control unit for auto drain and Data transmission, multiple sampling points is supported. Automatically proceed sampling, analyzing, drainage and so on process. Realized unattended operation 7*24hrs biogas monitoring.



FEATURES



• Gasboard-9060 measures CH4, CO2 and O2 gases for continuous monitoring
• The modular sensor design enables users easy on serviceability and onsite maintenance
• Supports multiple sampling points
• Optional heater or cooler is available applied to different applications condition.
• Adopts self-developed H2S modular with auto air purge to applied to high/ low H2S monitoring.
• Free maintenance gas conditioning unit and corrosion resistant design.
• Equipped with 7 inch touch screen to display real time data timely.
• Comprehensive technical proposal, installation and after-sales services.



SPECIFICATION



Infrared Detector(NDIR Dual-beam)
Gas Technology Measure Range Resolution Precision Repeatability
CH4 NDIR 0-100% 0.01% ≤±2%FS ≤±2%FS
CO2 NDIR 0-50% 0.01% ≤±2%FS ≤±2%FS
O2 ECD 0-25% 0.01% ≤±3%FS ±2%FS
H2S ECD 0-9999ppm 1ppm ≤±3%FS ±2%FS
Mechanical specifications
Dimensions H700 x W450 x D220 mm
Material Stainless steel, plate thick 2 mm
Installation part 4 brackets for wall mounting



APPLICATION



Biogas plants, landfill sites, water treatment, sludge digestion, biomethane production, CDM project ,anaerobic digestion and other fermentation processes.
