1.2L/min OEM Flue Gas Analyzer CEMS Continuous Emission Monitoring System

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-9050B
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component SO2, NO, CO, CO2 And O2 Inlet Pressure 2kPa-50kPa
Gas Flow 0.7-1.2L/min Work Temperature -15℃ To + 45℃
Size 400*485*132mm Weight 18kg
High Light

1.2L/min Flue Gas Analyzer

,

OEM Flue Gas Analyzer

,

CEMS Continuous Emission Monitoring System

Leave a Message
Product Description

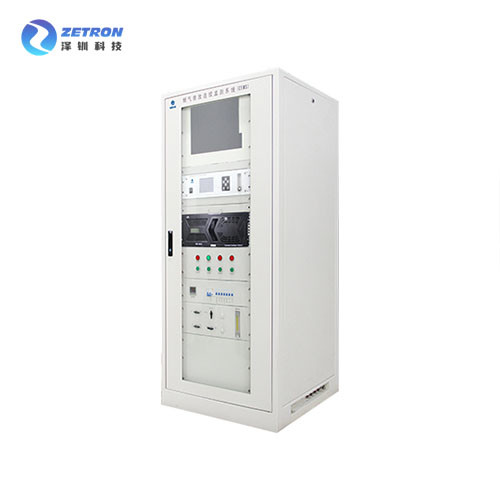

Continuous Emission Monitoring System (CEMS)

OVERVIEW



The continuous emission monitoring system is based on innovative micro-flow NDIR technology to measure the SO2, NO, CO, CO2 and O2 (ECD or paramagnetic) five gases at the same time. Eliminate the ambient’s temperature influence on measurement value and less interference of water vapor on SO2 and NO measurement. It has excellent prolonged stability and less cross interference.



FEATURES



• The system continuously monitors the gaseous pollutants by heating extraction method.
• Sampling probe has large filtering area, the filter easy to replace.
• Pretreatment system using imported devices which effectively waterproof, dust-proof, anti-corrosion.
• PLC data acquisition system is fully functional, intuitive and easy to operate.
• A variety of data output.
• The analyzer can be flexibly selected according to field requirements.
• Analysis system cabinet modular design and easy to operate.
• The analysis system has stability and high reliability, so it can reduce the daily maintenance costs.
• This model have rich features, it can achieve automatic sampling, purging, calibration, fault diagnosis, alarm, etc.



SPECIFICATION



General Parameter
Range SO2:0-2000ppm
  NO: 0-2000ppm
  CO: 0-5000ppm
  CO2: 0-25%
  O2:0-25%
  (Measurement range can be customized.)
Technology SO2, NO, CO, CO2(Micro-flow NDIR)
  O2 (ECD or Paramagnetic)
Gas Flow 0.7 1.2 L/min
Inlet Pressure 2kPa-50kPa



APPLICATION



Power plants, steel plants, cement plants, aluminum smelters, non-ferrous metal smelters, phosphate fertilizer plants, nitric acid plants, sulfuric acid plant, petrochemical plants, chemical fiber plant of large industrial coal-fired chimney and other industrial application emission gas monitoring.
