NH3 Sensor Fixed Ammonia Gas Detector Real Time Monitoring Remote Control IP65
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fixed Gas Monitoring System | Gas | NH3/ Ammonia |
|---|---|---|---|
| Ingress Protection | IP65 | Power | 24v Switching Power Supply |
| Explosion-proof Mark | ExdⅡCT6, Certificate Number: CNEx15.1283 | Repeatability | +/- 2% FSD Typically |
| Size | 23.3*20.5*6.5 Cm | Weight | 1Kg |
| High Light | IP65 Fixed Ammonia Gas Detector,Real Time Fixed Ammonia Gas Detector,IP65 Fixed Gas Monitoring System |
||
Product Description

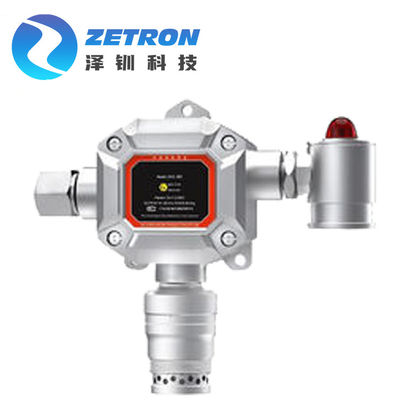

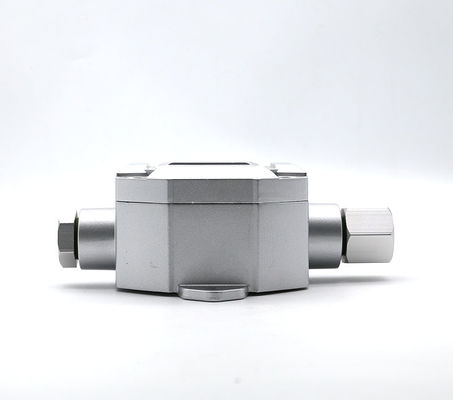

MIC300 Fixed Gas Monitoring System
Single Gas | Remote Control | Alarm
OVERVIEW
MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Simple to install service and calibrate, MIC300 requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.
Simple calibration procedure.
Easily integrated into a control system.
FEATURES & BENEFITS
◼︎ Fast and efficient gas detection function
It can be used in 24 hours continuous online monitoring of single field gas concentration and the types for detection are more than 500 types.
◼︎ Diversified communication methods
It is possible for the real-time monitoring via the wired or remote wireless transmission, and network transmission.
Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (modbus-RTU) simultaneous output.
It is compatible with secondary instrument, data acquisition module, PLC, DCS system, and it is possible to drive the related equipment.
◼︎ Powerful and convenient humanized function
Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
Multiple alarm modes, and multi-directional and three-dimensional indication alarm states, includes: 2 sets of relay switch output, sound & light alarm (optional configuration).Alarm types include: concentration alarm, and failure alarm.
Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
Zero-point automatic tracking; long-term use will not be affected by the zero drift.
Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
Broad operating temperatures: -40～+70℃, and temperature compensation is supported.
Intrinsically safe circuit design, explosion-proof, with Level II lightning protection, and anti-static capabilities. Meet the national standard, and it is resistant to the high-intensity pulse surge current. With the function of preventing the reverse connection. It is compliant with EMI, and EMC standards.
◼︎ ◼︎ ◼︎ ◼︎ Optional Items ◼︎ ◼︎ ◼︎ ◼︎
◼︎ Wireless transmission
It is possible to transfer data wirelessly to the cell phone, remote monitoring center, monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize the functions of data analysis, storage, printing or the like on the computer.
◼︎ Pretreatment system
Room temperature and high humidity pretreatment system
High temperature and high humidity pretreatment system
High dust pretreatment system
◼︎ Accessory for connection with computer for monitoring
Free upper-level host software, RS485 / RS232 converter
For laptop without RS232 interface, USB / RS232 converting and connecting cable is needed, if the network transmission is needed, TCP / IP converter will be further needed.
SPECIFICATION
|
Gas
|
Toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. | ||||
| Detection range |
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 100%LEL, 20%, 50%, 100%Vol can be selected; and other ranges can be customized.
|
||||
| Resolution | 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 1000 ppm or more), 0.1% LEL, 0.01%Vol | ||||
| Detection principle | Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Sensor can be customized
|
||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years;
Infrared principle: 5 ~ 10 years;
Thermal conductivity: 5 years
|
||||
| Allowable error | ≤±3% F.S (other or higher precision levels can be customized) | ||||
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
|
Response time
|
T90≤30 seconds | Recovery time | ≤30 seconds | ||
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular) | ||||
| Working voltage | 12 ~ 30VDC direct current
the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
|
||||
| Power supply reference | 24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
|
||||
| Working method | Fixed type installation, online detection, diffusion type measurement | ||||
| Protection level | IP65 | ||||
| Explosion-proof mark | ExdⅡCT6, certificate number: CNEx15.1283 | ||||
| Exterior dimensions | 233×205×65mm (L×H×W) | ||||
| Weight | 1.0 Kg | ||||
| Standard accessories |
Manual, qualification certificate, warranty card, outer packaging box
|
||||
APPLICATION
All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas,Cannabis & Hemp Oil, Breweries and so on.
