Multi Stage Dust Removal Boiler Emission Monitoring System 800W Low Nitrogen Reform

  • Multi Stage Dust Removal Boiler Emission Monitoring System 800W Low Nitrogen Reform
Place of Origin China
Brand Name Zetron
Certification CE , ISO13485, ISO9001
Model Number Gasboard-9082
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component NO, CO, CO2, O2 Resolution 0.1ppm
Work Temperature (5~+50)°C Communication RS232 / RS485
Power Supply 220V AC, 50Hz, 800W Response Time 30s
Inlet Pressure 2kPa-50kPa Display LCD Display
High Light

800W Boiler Emission Monitoring System

,

ISO9001 Boiler Emission Monitoring System
Leave a Message
Product Description

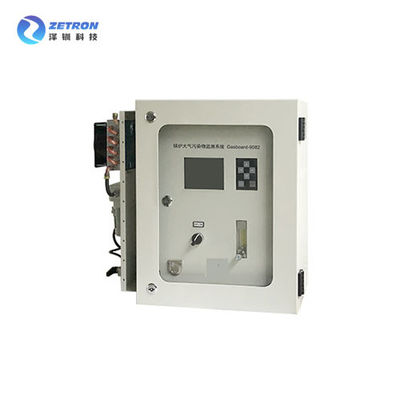

Boiler Emission Monitoring System (Basic Rev.)

OVERVIEW



Based on long-life ECD technology and NIDR gas analysis technology, equipped with integrated, automated sampling and pre-processing unit and control unit, Gasboard-9082 can simultaneously measure the gas concentration of NO, SO2, O2, CO and CO2 in flue gas. It conforms to the methodologies and design features as outlined by national and local environmental protection departments.



FEATURES



• Multi-stage dust removal and dehumidification for stable performance
• Pre-treatment system with built-in flow meter, filter, cooler to process the sample gas to ensure the reliability of the analysis system
• Easy operation
• Auto sampling, drainage, fault handing to achieve 24 hours unattended
• The measurement range is as low as 100mg/m3, meeting national environmental protection standards and ultra-low emission monitoring needs
• Data can be transmitted to the upper centralized control system through RS-232 or RS-485, 4-20mA output interface, providing real-time basis for remote monitoring and process adjustment
• Sound and light alarm output (optional sound and light alarm), timely remind faults and super-discharge information

SPECIFICATION



General Parameter
Measurement NO,O2,CO,CO2
Technology NO,CO,O2: ECD
  CO: NDIR
Range NO: 0-100mg/m
  СO2,O2:0-25%
  CO:0-5%
Precision ≤+3% FS
Response Time ≤30s
Working temperature 5-50℃
Electrical parameter
Communication RS-232,RS-485, 4-20mA
  Sound and light alarm output
Power AC 220V+20%,50±1Hz
Functional Configuration
With data storage function(can store up to one vear of historical data)
LCD display



APPLICATION



Boiler emission gas monitoring, low-nitrogen reform environmental monitoring, energy efficiency monitoring, nitrogen oxide concentration monitoring in low-nitrogen burner exhaust, nitrogen oxide monitoring in exhaust gas from VOCs treatment project of combustion method.
