Low Nitrogen Burner Exhaust Boiler Emission Monitoring System 0.1ppm 2kPa - 50kPa

  • Low Nitrogen Burner Exhaust Boiler Emission Monitoring System 0.1ppm 2kPa - 50kPa
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-9082
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component NO, CO, CO2, O2 Inlet Pressure 2kPa-50kPa
Resolution 0.1ppm Work Temperature (5~+50)°C
Communication RS232/RS485 Power Supply 220V AC, 50Hz, 800W
Response Time 30s Display LCD Display
High Light

0.1ppm Boiler Emission Monitoring System

,

2kPa Boiler Emission Monitoring System

,

50kPa Boiler Emission Monitoring System
Leave a Message
Product Description

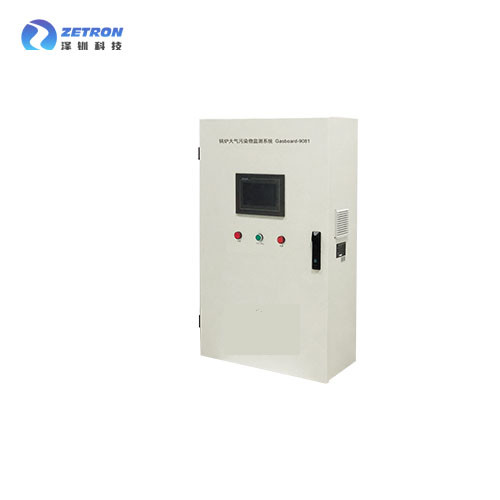

Boiler Emission Monitoring System(Basic Rev.)

OVERVIEW



　It adopts international leading UV DOAS technology, NDIR technology and long-life ECD technology, and is equipped with an integrated and automatic sampling pretreatment unit and control unit, Gasboard-9081 is suitable to simultaneously measure NO, SO2,O2, O2, CO and CO2 concentration in flue gas. It is an on-line monitoring device dedicated to boiler emission and energy efficiency control, which meets the emission regulatory requirements of national and local environmental protection departments.



FEATURES



Multi-stage dust removal and dehumidification for stable performance
Pre-treatment system with built-in flow meter, filter, cooler to process the sample gas to ensure the reliability of the analysis system
Easy operation
Auto sampling, drainage, fault handing to achieve 24 hours unattended
The measurement range is as low as 100mg/m3, meeting national environmental protection standards and ultra-low emission monitoring needs
Data can be transmitted to the upper centralized control system through RS-232 or RS-485, 4-20mA output interface, providing real-time basis for remote monitoring and process adjustment;
Sound and light alarm output (optional sound and light alarm), timely remind faults and super-discharge information

SPECIFICATION



General Parameter
Measurement NO,O2.CO,CO2,SO2(Optional)
Technology NO SO.UV-DOAS
  CO,ECD
  CO,CO2:NDIR
Range NO,SO2:0-100mg/m3
  CO,O2: 0-25%
  CO,0-5%
Resolution NO SO.: 1mg/m3
  CO CO2, O2: 0.01%
Predision NO SO,CO,CO, ±1%FS
  O2: ±2% FS
Zero/Span drift NO,SO,≤1% FS/ 24h
  CO,CO.O2, ≤2% FS/24h
Response Time ≤30s
Electical parameters
Communication RS 232,RS 485, 4-20mA
  Sound and light alarm output
Power AC 220V20%,50t1Hz
Functional Configuration
With data storage function(can store up to one year of historical data
USB download
7 inch touch screen to display and operation



APPLICATION



Boiler emission gas monitoring, low-nitrogen reform environmental monitoring, energy efficiency monitoring, nitrogen oxide concentration monitoring in low-nitrogen burner exhaust, nitrogen oxide monitoring in exhaust gas from VOCs treatment project of combustion method.
