High Precision Remote Gas Detector , IP65 0 - 5PPM Fixed Ozone Gas Detector Light Sound Alarm

  • High Precision Remote Gas Detector , IP65 0 - 5PPM Fixed Ozone Gas Detector Light Sound Alarm
  • High Precision Remote Gas Detector , IP65 0 - 5PPM Fixed Ozone Gas Detector Light Sound Alarm
Place of Origin China
Brand Name Zetron
Certification CE
Model Number ZDT-O3
Minimum Order Quantity 1 piece
Price USD 200-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Precision LCD Display Light Sound Alarm 0-5 Ppm O3 Remote Ozone Sensor Fixed Gas Detector Ingress Protection IP65
Enclosure Material Junction Box: Marine Grade Alloy Sensor Housing: 316 Stainless Steel Power 24VDC(11～30VDC)
Humidity 10 ～ 95%RH Response Time ≤30S（T90）
Size 215*140*93mm (L*H*W) Weight 1.5 Kg
High Light

IP65 Remote Gas Detector

,

5PPM Remote Gas Detector

,

5PPM Oxygen Gas Detector
Leave a Message
Product Description

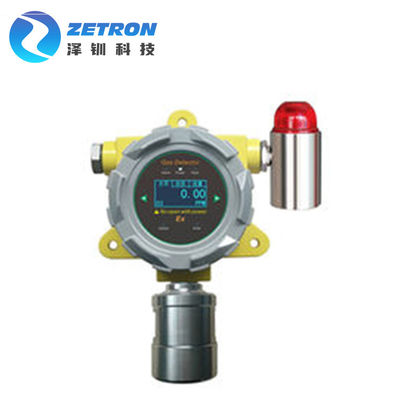

Remote Ozone Gas Detector



OVERVIEW



Remote Ozone Detector is suitable for continuous online detection of ozone concentration in various industrial environments and special hazardous environments. It displays results on the LCD screen and outputs various standard signals. It is easy to operate and is suitable for all kinds of dangerous places.



HiYi High Precision Remote Gas Detector , 0-5PPM Ozone Gas Detector Light Sound Alarm 0



FEATURES & BENEFITS



  • 1.54 inch industrial-grade OLED screen, shown in a direct, simple and visual way
  • O3 sensor import from Switzerland, with stable performance
  • 4-20mA,RS485,433M,Wireless Communication. signal output are selectable
  • With alarm function, alarm value can be set by user
  • With full range temperature compensation and data correction function , Improved the detection accuracy and stability
  • With Over-voltage protection, Reverse connection protection and with function of resistance of the static, electromagnetic interference
  • English operation menu, simple and useful



SPECIFICATION



Test range 0-5；0-20；0-50；0-100；0-200PPM (Selectable)
Resolution 0.001PPM(0-5PPM),0.01PPM(0-20；0-50；0-100；0-200PPM)
Detection precision ≤±2％ Linearity error ≤±1%
Response time ≤30S(T90) Zero draft ≤±1%(F.S/Year)
Release ≤60S Repeatability ≤±1%
Working voltage 24VDC(11～30VDC) Working pressure Normal atmosphere±10%
Operating temperature 20 ～ 50℃ Operating humidity 10 ～ 95%RH,Non-condensing
Level of protection IP65 Explosion-proof grade Exd ib IIC T6 Gb
Explosion-proof grade Diffusion type, circulation type (Selectable)
Alarm method Audible and visual alarm(Optional)
Dimension and weight 215*140*93mm
1.5Kg		 Electrical interface M20*1.5
Housing material Die-casting Aluminum
Standard accessories Carrying case,use manual,Certificate,Calibration cover, magnetic rod



APPLICATION



1. Petrochemical industry
2. Industrial production
3. Electric power
4. Tunnel engineering
5. Environmental monitoring
6. Biological, Pharmaceutical,Brewing fermentation
7. Agricultural production,Fire,Gas
