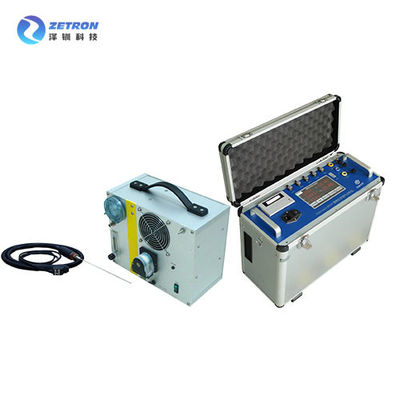

Micro Flow Flue Gas Analyzer 2um Filter Element 220V 330W SO2 NO CO CO2 O2 Measurement

  • Micro Flow Flue Gas Analyzer 2um Filter Element 220V 330W SO2 NO CO CO2 O2 Measurement
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-3800P
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component SO2, NO,CO,CO2,O2 Filter Element 2um
Power Supply 220V Power Consumption 330W
Environmental Temperature -40℃—140℃ Pump Sampling Pump And Peristaltic Pump
High Light

2um Flue Gas Analyzer

,

220V Flue Gas Analyzer

,

Flue Gas Oxygen Analyser
Leave a Message
Product Description

Boiler Emission Monitoring System(Basic Rev.)

OVERVIEW



　It adopts international leading UV DOAS technology, NDIR technology and long-life ECD technology, and is equipped with an integrated and automatic sampling pretreatment unit and control unit, Gasboard-9081 is suitable to simultaneously measure NO, SO2,O2, O2, CO and CO2 concentration in flue gas. It is an on-line monitoring device dedicated to boiler emission and energy efficiency control, which meets the emission regulatory requirements of national and local environmental protection departments.



FEATURES



• Integrate heated sampling probe and sampling hose.
• Built-in heated filter, prevent sampling loss.
• Max working temperature 200℃.
• Smart design, safe and reliable.
• Filter element: 2 um
• Length: 3m
• Power supply: 220V
• Power consumption: 330W
• environmental temperature: -40℃—140℃

Gas analyzer features:
• Innovative micro-flow NDIR technology.
• Measure SO2, NO,CO,CO2,O2 and optional temperature, pressure and flow.
• Less interference of H2O for SO2 and NO measurement.
• Built-in zero pump and auto zero calibration with fresh air.
• Optional printer.
• Calculation of Lambda and combustion efficiency.
• Touch screen.
• USB output.

Gas conditioning system features:
• Efficient peltier dehumidifiers for humidity measurement of low concentrations.
• PID temperature control.
• Needle valve flow control.
• Built-in sampling pump and peristaltic pump.

SPECIFICATION



General Parameter
Measurement SO2, NO, CO, CO2, O2
Technology SO2, NO, CO, CO2 (Micro-flow NDIR)
Range O2 (Electrochemical)
  SO2: 0-2000ppm
  NO: 0-2000ppm
  CO: 0-5000ppm
  CO2: 0-25%
  O2: 0-25%
  (Note: measurement range can be customized.)
Resolution SO2, NO, CO: 1ppm
  CO2, O2: 0.01%
Precision SO2, NO, CO, CO2, ≤±2%
  O2≤±3%
Repeatability SO2, NO, CO, CO2, O2 ≤±1%
Zero/Span drift SO2, NO, CO, CO2≤±2%
  O2≤±3%
Response time (T90) <10s (NDIR)
Warm-up time 30 minutes
Communication Interface RS232|Work temperature
Relaive humidity 5-85%
Ambient prestsure 86-108kPa
Power supply AC 220V 50Hz±1Hz



APPLICATION



Combustion and emission control research or certification of Continuous Emission Monitoring System (CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
