Portable Infrared Flue Gas Analyzer Dual Beam Micro Flow 0.1μm with LCD Display

  • Portable Infrared Flue Gas Analyzer Dual Beam Micro Flow 0.1μm with LCD Display
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard 3800Plus
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component SO2, NO,CO,CO2,O2 Power Supply 220V
Flow Rate ≤60L/h Dust Accuracy 0.1μm
Display LCD Color Blue
High Light

Infrared Flue Gas Analyzer

,

0.1μm Flue Gas Analyzer

,

LCD Display Flue Gas Analysis
Leave a Message
Product Description

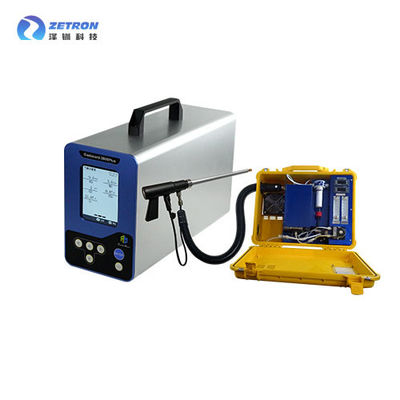

Portable Infrared Flue Gas Analyzer

OVERVIEW



It is new portable type to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO are measured by unique dual beam micro-flow infrared sensors and O2 is measured by long life time electrochemical sensor, with optional gas temperature, velocity, combustion efficiency, air coefficient, etc.



FEATURES



　　1. Unique dual beam NDIR micro-flow technology effectively solves the moisture interference to ensure intensity ratio of measurement signal and reference signal is not affected by the ambient temperature and pressure. Its stable performance is very suitable for low-concentration flue gas component monitoring.
　　2. Non-dispersive NDIR and long life time electrochemical technology to ensure no cross-interference between the measurement gases, its high measurement accuracy and sensor life is longer.
　　3. It is equipped with integrated sampling probe, heating tube, and imported gas conditioning device removes dust and moisture.
　　4. Automatic calculation of air coefficient and combustion efficiency.
　　5. Automatic storage of measurement data.
　　6. Dot matrix printer and USB communication interface to print real-time and historical data, or directly export the stored data to the USB flash drive.

SPECIFICATION



General Parameter
Measurement SO2,NO, CO, CO2,O2
Technology SO2,NO, CO: Dual beam micro-flow NDIRtechnology
  CO2: NDIR technology
  O2: long life time ECD technology
Range S02, NO: (0-500-2000)mg/m
  CO (0-5000)mg/m
  CO2,O2: (0-25) %
  (Note: Measurement range can be customized)
Resolution SO2, NO, CO: 1mg/m3
  CO2,O2 : 0. 01%
Precision SO2, NO, CO: 1mg/m3
Repeatability < 2%
Stability <2%S/24h
Response time (T90) 30s
Warm up time 5min
Communication interface USB, or Dot matrix printer
Power supply AC 220 v + 10%, 50 hz
Inlet gas flow (0.7-1.2)L/min
Display LCD display
Working Environment
Work temperature 0-50 ℃
Relative humidit 5-85%
Ambient pressure 86-108kPa
Dimensions
Size 275mm*470mm*175mm
Weight 7.2 kg



APPLICATION



Flue gas desulfurization and denitrification system monitoring, industrial chimney and other pollution source emissions monitoring, coal-fired boiler energy-saving monitoring, energy efficiency testing and pollution emission monitoring, university and science research project for flue gas composition monitoring.
