Commercial / Industrial Ultrasonic Biogas Flow Meter 0-2000kpa IP65
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measurement Component | SO2, NO, CO, CO2, HC And O2 | Power Supply | 220V |
|---|---|---|---|
| Protection Class | IP65 | Work Pressure | 0-2000kpa |
| Highlight | Ultrasonic Biogas Flow Meter,IP65 Biogas Flow Meter,2000kpa Biogas Flowmeter |
||
Product Description

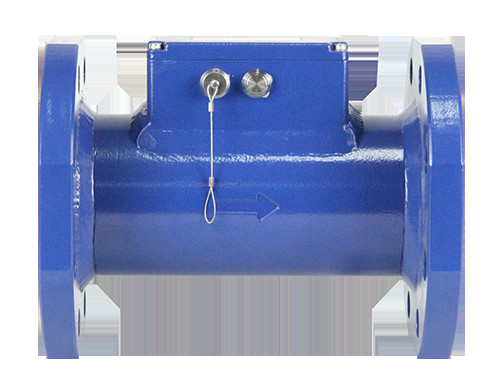

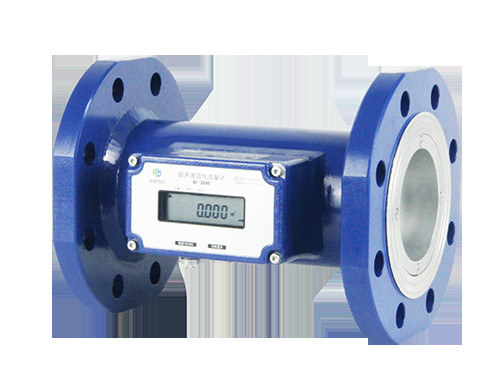

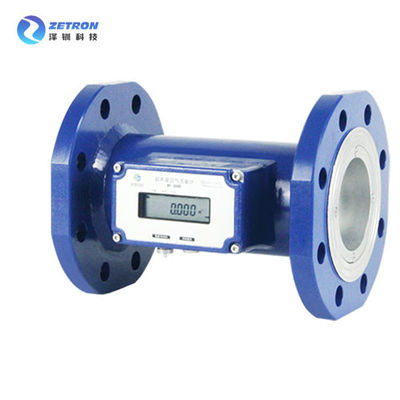

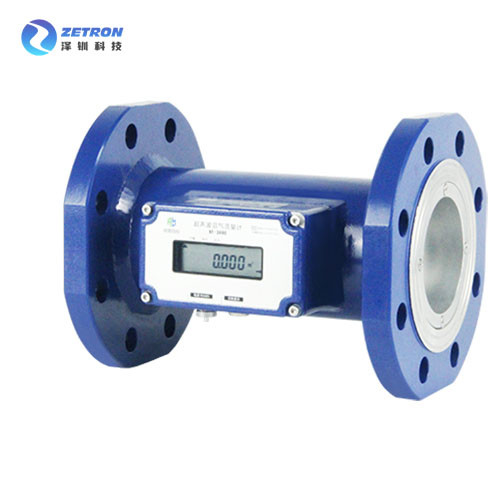

Ultrasonic Biogas Flowmeter
OVERVIEW
Commercial and industrial use/ for biogas only BF-3000 Ultrasonic Biogas Flowmeter is developed for the measurement of biogas output from anaerobic digester. It is designed to withstand the wet and corrosive conditions. The built-in temperature and pressure sensors enable to make compensation and reach high accuracy.The unique composition reading function requires no additional device and input, which making it possible to continuously monitor the biogas quality and quantity with lowest investment.
FEATURES
• No moving parts, no pressure drop.
• Unique Methane content measurement function
• Temperature & pressure compensation, high precision
• Easy to install, routine maintenance free
• Strong corrosion resistance from high H2S and moisture
• Cutting-edge technology of ultrasonic
• Long lifetime, stable performance
• Highly integrated, good looking appearance
• Built-in industrial lithium battery
• Low-flow measurement function available
• All-in-one detect probe, measure flow velocity, temperature, presure and methane concentration directly.
• Unique Methane content measurement function
• Temperature & pressure compensation, high precision
• Easy to install, routine maintenance free
• Strong corrosion resistance from high H2S and moisture
• Cutting-edge technology of ultrasonic
• Long lifetime, stable performance
• Highly integrated, good looking appearance
• Built-in industrial lithium battery
• Low-flow measurement function available
• All-in-one detect probe, measure flow velocity, temperature, presure and methane concentration directly.
SPECIFICATION
| General Parameter | |||||||||
| Applicable pipeline | DN32 | DN50 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 |
Flow range(m3/h) | 1.3-65 | 3.2-160 | 4.8-240 | 8-400 | 12-600 | 16-800 | 32-1600 | 48-2400 | 64-3200 |
| Interface | 1"1/4 | 2" | Convex flange | ||||||
| Accuracy range | Class 1.5 | ||||||||
| CH4 composition | Range 30-100%VOL, Accuracyt5%FS | ||||||||
| Power supply | External power supply: Safety Barrier UI-5V, LI-100MA (Main Power Supply) | ||||||||
| Internal Battery :3.6V LS26500(Backup Power Supply) | |||||||||
| Communication | RS-485 | ||||||||
| Explosion levels | ExibIIAT4 Gb | ||||||||
| Protection class | IP65 | ||||||||
APPLICATION
• Biogas Anaerobic Digester
• Biogas Flare
• Upgrading Bio-methane Gas
• Biogas generator
