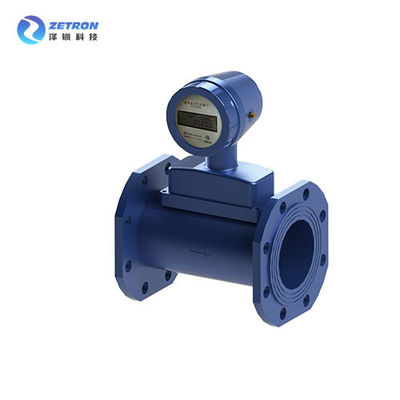

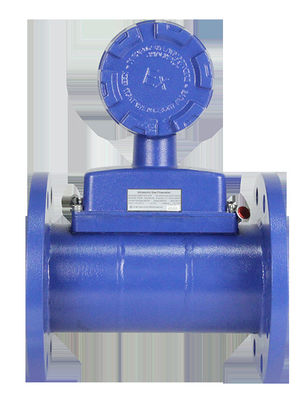

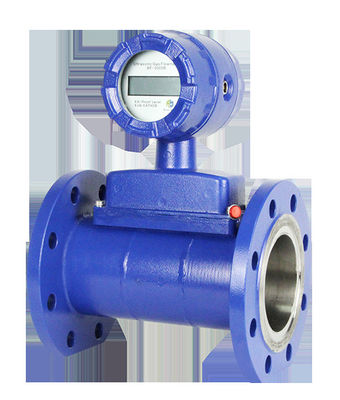

220V Fixed Gas Detector Bypass Measurement Biogas Air Natural Gas Ultrasonic Flow Meter

  • 220V Fixed Gas Detector Bypass Measurement Biogas Air Natural Gas Ultrasonic Flow Meter
  • 220V Fixed Gas Detector Bypass Measurement Biogas Air Natural Gas Ultrasonic Flow Meter
  • 220V Fixed Gas Detector Bypass Measurement Biogas Air Natural Gas Ultrasonic Flow Meter
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number BF-3000B
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Acurancy Range Class 1,5 Power Supply 220V
Communication RS485 Work Temperture -10-40℃
Color Blue Warranty 1 Year
High Light

220V Fixed Gas Detector

,

RS485 Fixed Gas Detector

,

RS485 Ultrasonic Flow meter
Leave a Message
Product Description

Ultrasonic Flow meter



OVERVIEW



Ultrasonic Gas Flowmeter BF-3000B is based on bypass measurement method, which can measure the flow rate of biogas,  natural gas, air and other gases. In the bypass type flow meter, flow in the main line is inferred by measuring the flow in a small bypass line, it can effectively solve the problems such as moisture and improve the measurement accuracy.



FEATURES



• No movable parts, no pressure drop.
• Ultrasonic technology, high precision, long lifetime.
• Combination of the pressure, the flow measurement of large pipeline available.
• No effect if installation and maintenance when the pipeline is working.
• Low power consumption. 5 years Lifespan.
• All-in-one detecting design, measure flow velocity, pressure, temperature and methane concentration directly.

SPECIFICATION



General Parameter
Applicable pipeline DN32 DN50 DN80 DN100 DN125 DN150 DN200 DN250 DN300

Flow range(m3/h)

Turn down

ratio:200:1

 3-65 8-160 12-240 20-400 30-600 40-800 80-1600 120-2400 160-3200
Accuracy range Class 1.5
CH4 composition Range 30-100%VOL, Accuracy5%FS
Power supply External power supply: Safety Barrier Ui=5V,Li=100mA(main power supply)
Internal battery:3.6V LS26500(backup power supply)
Communication RS-485
Explosion levels ExibIIAT4 Gb
Protection class IP65
Working Environment
Work temperature -10~40℃
Humidity <99%
Working pressure 0-200kPa



APPLICATION



• Upgraded Bio-methane Gas
• Biogas Engine/CHP

• Anaerobic Digester
• Biogas Flare
