CO CO2 NO NO2 PEMS Portable Emissions Measurement System 23nm - 2500nm

  • CO CO2 NO NO2 PEMS Portable Emissions Measurement System 23nm - 2500nm
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-9805
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement CO CO2 NO NO2 Power Supply 24V, Maximum Power Consumption 240W
Working Environment Temperature (-10~45)℃ Particle Size Range 23nm~2500nm
Highlight

PEMS Portable Emissions Measurement System

,

NO2 Portable Emission Measurement System

,

2500nm Portable Emission Measurement System
Leave a Message
Product Description

Portable Emission Measurement System(PEMS)

OVERVIEW

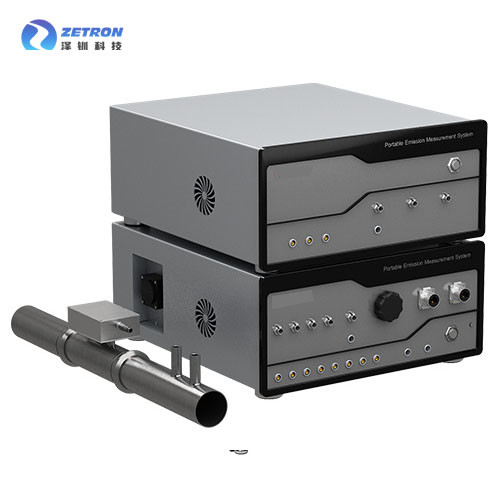

Gasboard-9805 is a portable emission measurement system developed based on Cubic Ruiyi self-developed core gas analysis technology, measures the concentration of CO, CO2, NO, and NO2 in exhaust gases, and particulate matter, emission flow, GPS data, ambient temperature and humidity, pressure measurement, as well as automatic calculation of total emissions.
The system is modular design with built-in battery(more than 4 hours battery lifetime). Infrared NDIR technology for CO and CO2 concentration measurement and ultraviolet UV-DOAS technology for direct measurement of NO and NO2 concentration.Free maintenance.Widely applied for on-load emission testing requirements of non-road machinery.



FEATURES



· Self-developed core gas analysis technology. Infrared NDIR technology measures CO and CO2;UV-DOAS technology simultaneously measures NO and NO2 with high accuracy, no need for NOx converter and free maintenance.
· Simple operation and usage. Easy operation;support test process guidance;test result storage and report generation functions.
· Modular design, flexible to use. Both of the GAS and PN modules can be used separately to meet different measurement request.
· Strong endurance, meets on-vehicle test requirements. More than 4 hours battery lifetime of the built-in battery. No external battery needed. Supports a complete actual driving pollutant emission test.
· Excellent performance; Meets national standard requirements. Comply with the "Limits and Measurement Methods of Pollutant Emissions from Diesel Engines for Non-Road Mobile Machinery (China Phase 3 and 4)" (GB 20891-2014) and "Technical Requirements for Control of Pollutant Emissions from Non-Road Diesel Mobile Machinery" (HJ1014-2020) standard requirements.
· Great environmental adaptability. Great environmental adaptability, not affected by vehicle vibration, heavy pressure, ambient temperature and humidity change.
CO CO2 NO NO2 PEMS Portable Emissions Measurement System 23nm - 2500nm 0

SPECIFICATION





Performance parameter
Gas
Analysis
Device		 Measurement range CO:0~10%
CO2:0~20%
NO:0~3000ppm
NO2:0~1000ppm
Resolution CO,CO2:0.01%
NO,NO2:1ppm
Precision ≤1%F.S.
Accuracy <±2% of reading or ±0.3% F.S., whichever is greater
Sensor response time T10-90 ＜2.5s
System response time T0-90 ≤10s
Zero drift (4 hours) CO:≤±50ppm
CO2:≤±0.10%
NO,NO2:≤5ppm
Span drift (4 hours) CO: ≤2% of reading or ≤±50ppm, whichever is greater
CO2: ≤2% of reading or ±0.1%, whichever is greater
NO, NO2: ≤2% reading or ≤5ppm, whichever is greater
PN Measurement Module Measurement range 600 ~ 1.3 * 10 ^ 9 # / cm3
Particle size range 23nm~2500nm
Rise time T10-90 ≤3s
Discharge Flow Meter Range 10~600kg/h; 100~2000kg/h;200~4000kg/h
Discharge temperature -5~500℃
Accuracy ＜(±2% reading)or(±0.5%F.S.)
or (±1.0% of the maximum flow rate of the calibrated EFM) whichever is greater
Precision <1%F.S.
Linearity |Xmin*a1-1+a0|≤3%max, slope a1:0.97~1.03,
Standard deviation SEE≤2%max,
determination coefficient r2≥0.990
Rise time T10-90 <1s
Response time <3s
Performance parameter
Working environment temperature (-10~45)℃
Power supply 24V, maximum power consumption 240W
Connection signal
Communication RS485,WIFI,RJ-45 Ethernet
