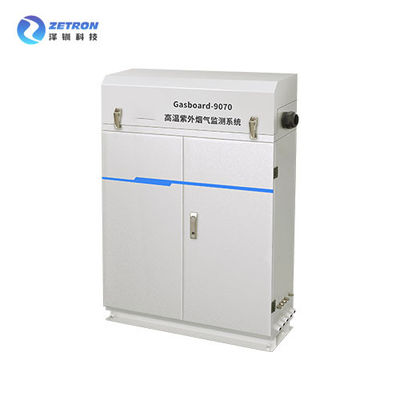

High Temperature UV DOAS Flue Gas Monitoring System 0.1ppm Resolution For SO2 NO NH3

  • High Temperature UV DOAS Flue Gas Monitoring System 0.1ppm Resolution For SO2 NO NH3
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-9070
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component SO2, NO, NH3 And Other Gases Measuring Principle UV-DOAS
Resolution 0.1ppm Work Temperature (0~+50)°C
Communication RS232/RS485 Power Supply 220V AC, 50Hz, 800W
Highlight

UV DOAS Flue Gas Monitoring System

,

0.1ppm Flue Gas Monitoring System

,

UV DOAS Gas Analyzer
Leave a Message
Product Description

High Temperature UV Flue Gas Monitoring System

OVERVIEW



High Temperature UV Flue Gas Monitoring System Gasboard-9070 is based on advanced UV-DOAS gas analysis technology, which can simultaneously measure the concentration of SO2, NO, NH3 and other gases. It adopts multiple reflection chamber to reach a lower limit of detection. The system adopts high temperature tracing on whole sampling circuit to ensure high measurement accuracy, that can be widely used to monitor the flue gas from industrial stacks or stationary pollution source before and after desulfurization and denitrification, and accurately reflect the conditions of ammonia escaping.



FEATURES



• Adopt UV-DOAS technology to measure SO2, NO, NH3 gas concentration simultaneously with high accuracy.
• Using multiple reflection gas chamber to provide ultra-low range measurement and low detection limit.
• High temperature tracing on entire gas flow path, adopting low-adsorption materials and processing techniques to effectively avoid the loss of SO2 and NH3.
• Extractive measurement method, not affected by dust, temperature, and pressure fluctuations in the flue.
• Built-in automatic correction algorithm to eliminate interference from other gas components.
• Automatic calibration design, easy for operation and maintenance.
• Widely applicable on different applications, not restricted by on-site installation conditions.



SPECIFICATION



Performance Parameters
Measuring Component SO 2 , NO, NH 3
Measuring Principle UV-DOAS
Measurement Range SO 2 : 1000mg / m 3 ; NO: 100mg / m 3 ; NH 3 : 20mg / m 3
(Outlet of denitration)
SO 2 : 50mg / m 3 ; NO: 50mg / m 3 ; The NH 3 : 20mg / m No 3
(Outlet Of a stack)
Precision ≤± 2%F.S.
Resolution 0.1ppm
Repeatability ≤1%F.S.
Response Time T 90 ≤60s
Working Parameters
Ambient Temperature (0~50)°C
Power Supply AC220V, 800W
Purge Gas Source (0.4~0.8)MPa compressed air
Interface Signals
Communication RS485, RS232
Output Mode 4 channels 4~20mA output
8 channels relay output



APPLICATION



Gas concentration monitoring before and after desulfurization and denitrification of industrial chimneys and stationary sources of flue gas, including:
. coal-fired power plants
. Aluminum plants
. Steel plants
. Smelting plant
. Waste-to-energy plants
. Cement plants
. Chemical plants and etc.



High Temperature UV DOAS Flue Gas Monitoring System 0.1ppm Resolution For SO2 NO NH3 0
