Online Infrared Syngas Analyzer Electrochemical Sensor With Microcomputer Technology

  • Online Infrared Syngas Analyzer Electrochemical Sensor With Microcomputer Technology
Place of Origin China
Brand Name Zetron
Certification CE/Atex
Model Number ZN3101
Minimum Order Quantity 1 set
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ZN101 Portable Trace Oxygen Analyzer Measuring Range 0.0～10/100/1000×10-6 O2
Response Time T90< 10 Sec Resolution 0.1×10-6
Size 256x160x330mm Weight 4.5kg
High Light

Microcomputer Online Infrared Syngas Analyzer

,

Electrochemical Sensor Online Infrared Syngas Analyzer
Leave a Message
Product Description

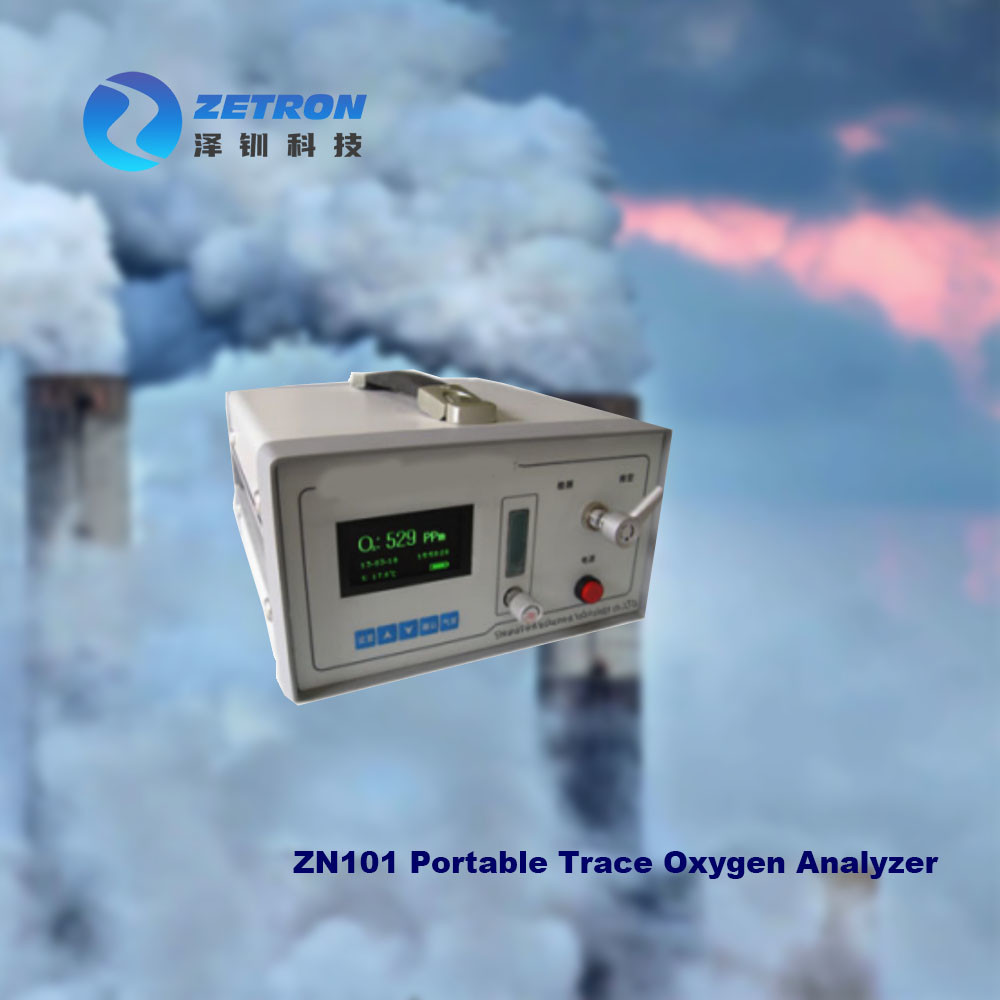

Zetron ZN101 Portable Trace Oxygen Analyzer



OVERVIEW


ZN101 Portable Trace Oxygen Analyzer is a new-type intelligent industrial portable analyzer researched and developed by combining imported high-performance electrochemical sensor with new microcomputer technology based on the principles of electrochemical detection.



Online Infrared Syngas Analyzer Electrochemical Sensor With Microcomputer Technology 0



FEATURES
  • Imported fuel cell sensor adopted, featuring long service life, high accuracy, and quick response and immune to the interference of other gas components;
  • Automatic temperature compensation, eliminating the affect from ambient temperature;
  • 128×64 lattice OLED display, able to simultaneously display parameters like oxygen content, date, and time;
  • Timed automatic storing function, and stored data available for viewing at any time;
  • Automatic range shifting; alarm point can be set at will within the whole range;
  • AC/DC power supply and flexible operation; built-in lithium-ion battery available for continuous operation of approximately 15 hours once fully charged; automatic alarm in case of low battery voltage;
  • Applicable for quick detection of trace oxygen in reducing gases, such as high-purity hydrogen;
  • Built-in air extracting pump and external filter can be added upon selection.
SPECIFICATION



Measurement range

 0.0～10/100/1000×10-6 O2

Accuracy

≤±5% F.S (0.0～10×10-6);

≤±2% F.S (10～100×10-6);

≤±2% F.S (100～1000×10-6)

Resolution

≤ ±1%

Stability

Zero drift ≤ ±2% FS/7d;

Span drift ≤ ±2% FS/7d

Response time

90 ≤ 10 sec

Sample gas flow

400±10 ml/min

Sample gas pressure

0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

Output signal

4～20mA

Operating environment

Temperature: －5℃～＋45℃;
Humidity: ≤ 90% RH;

Operating power supply

1. 220 VAC±10%, 50 Hz±5%;

2. Rechargeable lithium-ion battery built in the instrument;

Overall dimensions

  256x160x330mm

Weight

P4.5kg



APPLICATION



Quick analysis on trace oxygen in protective gases for high-temperature sintering furnaces of nitrogen production by air separation, chemical process, magnetic materials, and so on; in protective gases for electronic industry; and in glass and building material industries, as well as various gas mixtures
