Plug In Zirconia Portable Trace Oxygen Analyzer Quick Response

  • Plug In Zirconia Portable Trace Oxygen Analyzer Quick Response
  • Plug In Zirconia Portable Trace Oxygen Analyzer Quick Response
Place of Origin China
Brand Name Zetron
Certification CE/Atex
Model Number ZN3001
Minimum Order Quantity 1 set
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ZN3001 Plug In Trace Oxygen Analyzer Measuring Range 0.01×10-6～25.0% O2 Full Scale
Response Time T90< 5 Sec Resolution 0.1×10-6
Size 270mmx132mmx320mm Weight 6kg
High Light

Atex Portable Trace Oxygen Analyzer

,

Quick Response Portable Trace Oxygen Analyzer

,

Zirconia Oxygen Analyzer
Leave a Message
Product Description

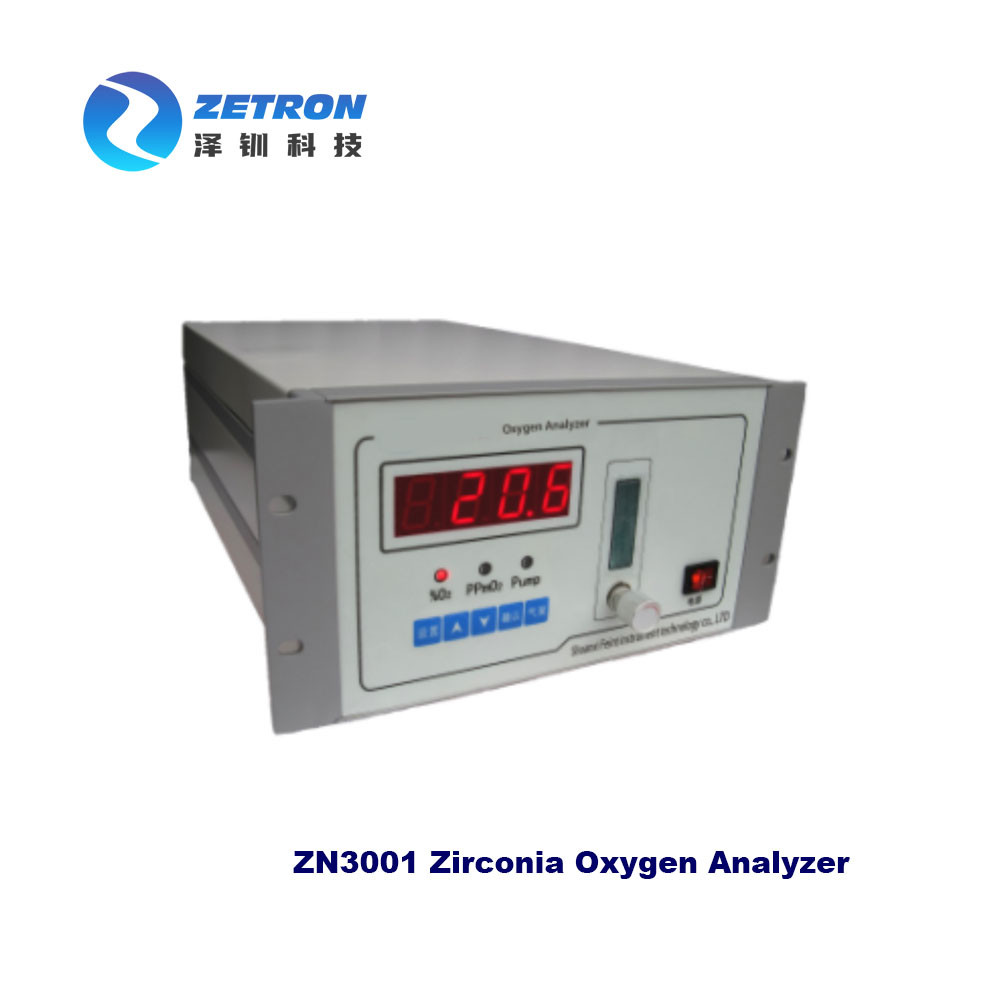

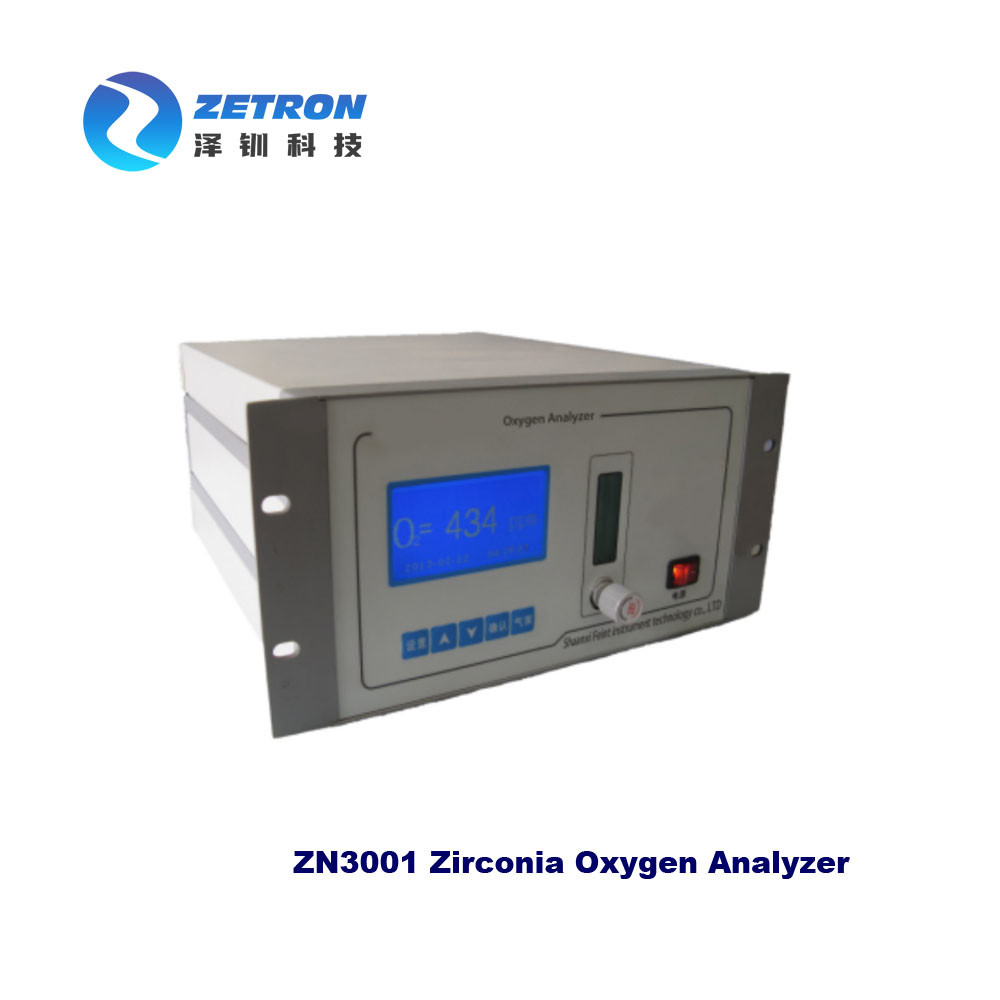

Zetron ZN3001 Plug-in Trace Oxygen Analyzer



OVERVIEW


ZN3001 Zirconia Oxygen Analyzer is composed of an intelligent signal converter with microprocessor as its core and an imported zirconia detector and used for online detection of oxygen content in the gas detected.



Plug In Zirconia Portable Trace Oxygen Analyzer Quick Response 0



FEATURES





  • Zirconia detector adopted, featuring long service life, stable performance, and quick response;
  • Wide measurement range, available for analysis from trace oxygen to macro oxygen;
  • 128×64 lattice LCD, able to simultaneously display parameters like oxygen content, date, and time;
  • Timed automatic storing function, and stored data available for viewing at any time;
  • Automatic range shifting; alarm point can be set at will within the whole range;
  • Standard RS232 or RS485 communication interface available for two-way communication with computer;
  • Alarm for out-of-control temperature;
  • Display switchable between oxygen content, potential value, and operating furnace temperature;
  • Built-in air extracting pump and external filter can be added upon selection.





SPECIFICATION





Measurement range

 0.01×10-6～25.0% O2 full scale;

Accuracy

≤±5% F.S (0.0～10×10-6);

≤±2% F.S (10～100×10-6);

Resolution

≤ ±1.5%

Stability

Zero drift ≤ ±2% FS/7d;

Span drift ≤ ±2% FS/7d

Response time

90 ≤ 15 sec

Sample gas flow

400±10 ml/min

Sample gas pressure

0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

Output signal

4～20 mA

Operating environment

Temperature: －5℃～＋45℃;
Humidity: ≤ 90% RH;

Operating power supply

1. 220 VAC±10%, 50 Hz±5%;

2. Rechargeable lithium-ion battery built in the instrument;

Overall dimensions

  270 mm (W) × 132 mm (H) × 450 mm (D)

Weight

 6kg
Operatiing Temperature  750℃





APPLICATION



Automatic analysis on oxygen content in nitrogen or argon in electric power, metallurgy, and air separation industries.

Plug In Zirconia Portable Trace Oxygen Analyzer Quick Response 1
