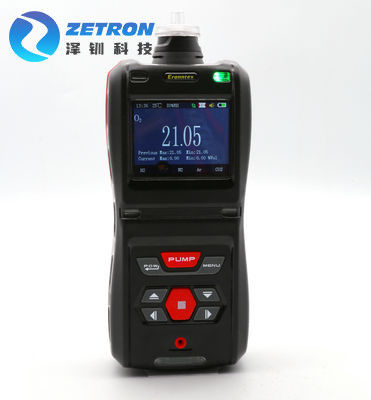

5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Multi Gas Detector Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Black
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 350g Size 180*78*33mm
High Light

MS500 Portable Toxic Gas Detector

,

350g Portable Toxic Gas Detector

,

350g 5 In 1 Gas Detector

Leave a Message
Product Description



MS500 Five In One Portable Toxic And Combustible

Multi Gas Detector



OVERVIEW


MS500 series is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space. The types for detection are more than 500 types.
It is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and the purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas.


5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 0



FEATURES



5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 1



①It is possible to simultaneously detect 1 ~ 5 types of gases, and the types for detection are more than 500 types.
②There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.



5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 2

①2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.

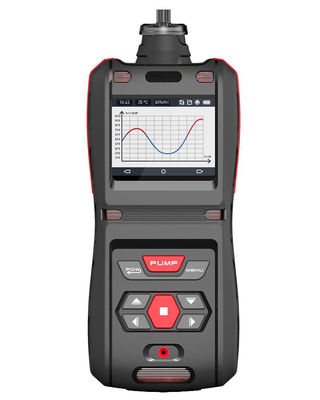

②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.



5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 3



①Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.



5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 4



①Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.
Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
⑤Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
⑥Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
⑦Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.



5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 5



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
· high temperature sampling and cooling filter handle
· high temperature humidity pretreatment system
· multiple humidity dust filter
· hanging rope
· CD-ROM (upper level computer communication software)
· External mini wireless infrared printer



APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.



5 In 1 Portable Toxic Gas Detector Combustible Cooling Filter MS500 6
