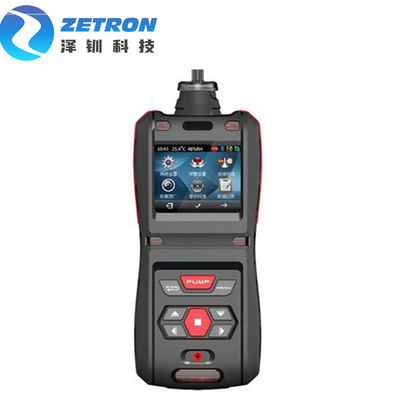

Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500
Minimum Order Quantity 1 set
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Analyzer Portable Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Black
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 350g Size 180*78*33mm
High Light

MS500 Handheld Multi Gas Detector

,

IP66 Gas Flow Detector

,

MS500 Gas Flow Detector

Leave a Message
Product Description

MS500- 5 in 1 Toxic and Harmful Portable Gas Detector



OVERVIEW


MS500 series is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space. The types for detection are more than 500 types.



Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66 0



FEATURES



Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66 1



①It is possible to simultaneously detect 1 ~ 5 types of gases, and the types for detection are more than 500 types.
②There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.



Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66 2



①2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.



Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66 3



①Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.



Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66 4



①Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.
Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.




Black Handheld Multi Gas Detector , Five In One Gas Flow Detector MS500 IP66 5



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
· high temperature sampling and cooling filter handle
· high temperature humidity pretreatment system
· multiple humidity dust filter
· hanging rope
· CD-ROM (upper level computer communication software)
· External mini wireless infrared printer



PARAMENTERS



Measuring gas
SF6
Measuring range
0-1.000,2.000,5.000ppm
Other ranges can be customized
Resolution
0.01 ppm
0.1 ppm
Other ranges can be customized
Sensor type
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
Measuring type
Built-in pump-suction type
Response time
T90<20s
Display
2.5-inch high-definition color screen
Alarm method
sound & light alarm; vibration alarm; sound & light + vibration alarm;turning off the alarm
Battery
DC3.7V, 3000mA high capacity rechargeable polymer battery
Data storage
Standard capacity is 100,000 entries.
Working temperature
-40 ℃ ~ + 70 ℃
Working humidity
≤10 ~ 95% RH
Housing
Rubber enclosure
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter
Dimension (L×W×H)
180×78×33mm
Weight
350g
Ex grade
Ex ia IIC T6 Ga Intrinsically safe type
Ingress protection
IP66



APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
