Portable Ammonia Gas Detector NO2 HCN CLO2 O3 Audible Visual Vibrating Alarms
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Gas Analyzer Portable
|PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
|Portable Multi Gas Detector, Infrared
|OEM, ODM, OBM
Portable Ammonia Gas Detector,
CLO2 Gas Detector,
HCN Gas Detector
Audible Visual Vibrating Alarms NH3 NO2 HCN CLO2 O3

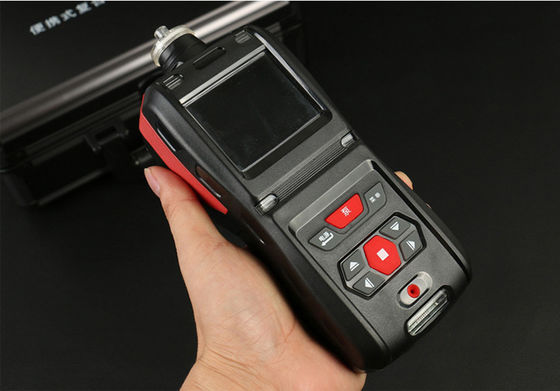

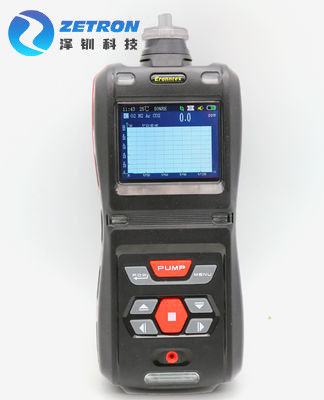

Portable Multi Gas Detector
MS500 series is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space. The types for detection are more than 500 types.
It is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and the purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas.
①It is possible to simultaneously detect 1 ~ 5 types of gases, and the types for detection are more than 500 types.
②There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.
①2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.
①Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.
① Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
② Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.
Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③ Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④ Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
⑤ Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
⑥ Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
· high temperature sampling and cooling filter handle
· high temperature humidity pretreatment system
· multiple humidity dust filter
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
