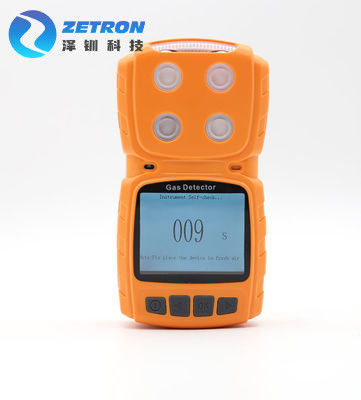

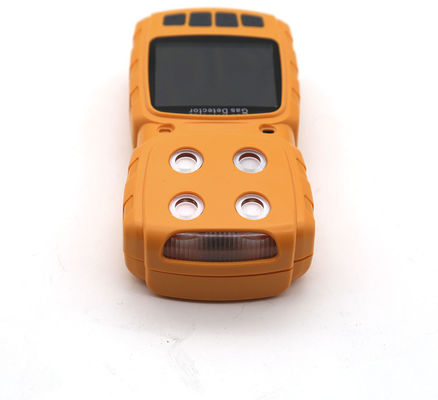

Four In One Portable Multi Gas Detector Catalytic Combustion Sensor Similar Honeywell Alert

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS104K
Minimum Order Quantity 1 set
Price USD 145/set- 879/set
Packaging Details 130*68*34mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi Gas Detector Type Electrochemical Sensor Gas Detector
Gas Unit Ppm LEL Sampling Method Diffusion Sampling
Alarm Type Light+Sound+Vibration Gas H2S O2 CO Ex (optional)
Recovery Time ≤30 Seconds Protection Level IP65
Weight 200g Size 114*60*26mm (L*W*H)
High Light

MS104K Portable Multi Gas Detector

,

Portable Multi Gas Detector 200g

,

CE Portable Methane Gas Detector

Leave a Message
Product Description

Portable Multi  Diffusion Type
Gas Detector



OVERVIEW



· It can be used in: rapid detection of a variety of gas concentration and measurement of environmental
temperature and humidity, if the measurement exceeded the limit value, the alarm will emit sound & light vibration as alarm.

· Suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space.

  The types of gases for detection are more than 500 types.





Four In One Portable Multi Gas Detector Catalytic Combustion Sensor Similar Honeywell Alert 0



FEATURES & BENEFITS



1. Multi-gas made simple, easy to wear, slim and compact
It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely .
Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.


2. Compact design, easy to use
Handy and durable, the MS104 is intuitive to operate single-handedly using three function keys.
The easy-to-read color display clearly lays out all the information for you.



3. Large Data Storage Management, release and documentation in no time
Standard configuration is the data storage capacity for 100, 000 entries.
Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.
It is supported to use the local host to view, and delete data, and upload the data via USB interface to the computer for data analysis or printing.RS485 communication is an optional configuration.



4. Clear signaling design
The signal system of the MS104K is based on a clear color code: sound & light alarm, vibration alarm, display screen visual alarm.These are also documented in the data logger.

5. Economical Calibration Management
The deviation of the concentration which was detected out by the instrument from the standard gas concentration can be corrected by calibrating the concentration or changing the display coefficients.

6. Inductive charging protects against wear and tear
This makes it easier to operate and increases the lifespan of the device.
Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure at the same time.



Four In One Portable Multi Gas Detector Catalytic Combustion Sensor Similar Honeywell Alert 1



SPECIFICATION



Gases to be detected

Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.

Optional configuration: temperature and humidity measurements.

Application scenarios All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/l, 100%LEL, 20%, 50%, 100%Vol can be selected; and other ranges can be customized.
Resolution

0.01ppm or 0.001ppm (0 ~ 10 ppm);

0.01ppm (0 ~ 100 ppm),

0.1ppm (0 ~ 1000 ppm),

1ppm (0 ~ 1000 ppm or more),

0.01 mg/l (0 ~ 200% mg/l),

0.1% LEL,

0.01%Vol,

0.001% Vol

Detection principle Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Maximum allowable error ≤±3% F.S (higher precision levels can be customized)
Linearity ≤±2% Linearity ≤±2% Linearity ≤±2%
Response time T90≤30 seconds Recovery time ≤30 seconds
Sample gas temperature -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 400 ℃ or higher.
Temperature and humidity measurement Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply 3.7VDC, 3000mA high capacity rechargeable polymer battery
Display mode 2.31-inch high-definition color screen
Detection mode Diffusion type measurement. The calibrated flow rate is 500 ml/minute.
Alarm mode It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface USB (charging and communication), optional: RS485 communication interface
Data storage Standard configuration is the data storage capacity for 100, 000 entries
Protection level IP65
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT4 Ga
Exterior dimensions 130×68×34mm (L×W×H)
Weight 200g

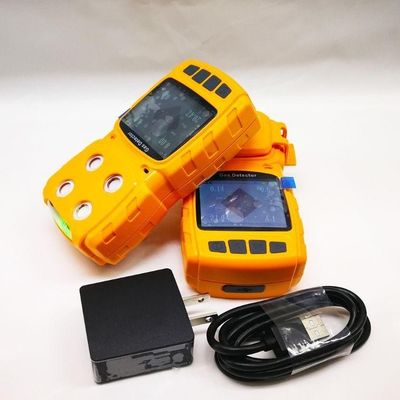

Standard accessories Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)



APPLICATION



The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.
