Ip65 Portable Multi Gas Detector With Lcd Dot Matrix Display

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number PTM100
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T,Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi Gas Analyzer Test Item SO2 NO NO2 VOC NOX CO , Customized
Material Plastic Size 260*230*120mm
Weight 3.7kg Warranty 1 Years
High Light

ip65 portable multi gas detector

,

lcd diaplay portable multigas detector

,

ip65 portable multi gas detector

Leave a Message
Product Description

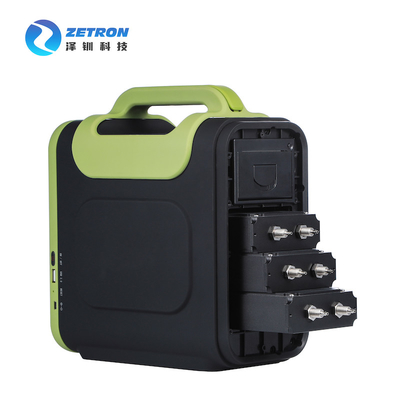

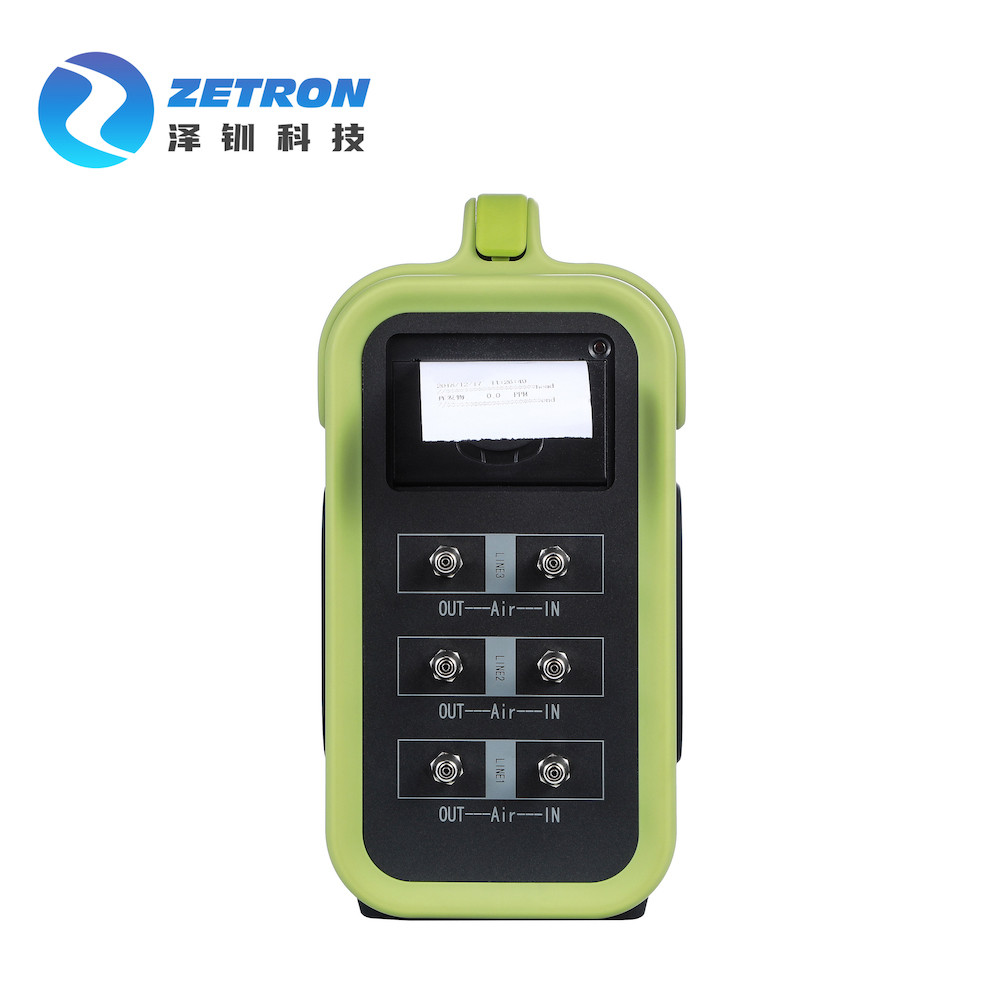

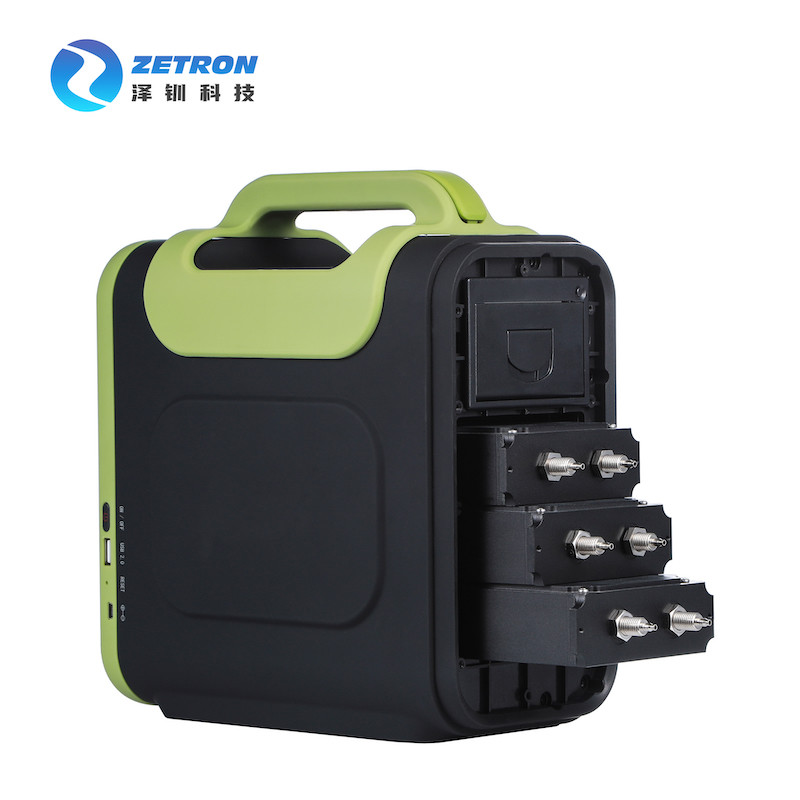

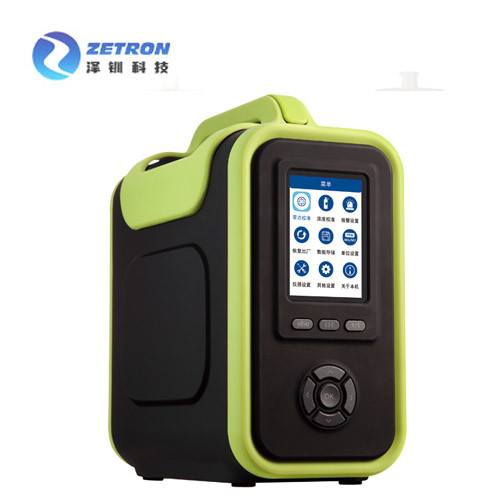

PTM100-Multi-Gas Analyzer
OVERVIEW


PTM100 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in scientific research, university,  and complex working environment.
PTM100 gas analyzer can detect up to 18 gases simultaneously. It can integrate electrochemistry, catalysis, thermal conductivity, infrared, light ion, ultraviolet,  and other detection principles, focusing on the accuracy of gas detection and user experience.



FEATURES

Fast response & high accuracy
– with internal sampling pump, response time ≤30s
– using world top brand sensors, high precision, the detection result is approved by the third testing organization
Comprehensive functions
– gas concentration unit PPM and mg/m3 can be shifted by one press.
– With Self-calibration and zero calibration functions, making the detection more accurate and reliable.
– One press to restore factory setting, free from the bother of misoperation
Alarm mode
– Alarm with light, sound and vibration, ensuring the safety of the users.
– Alarm point is settable according to the specific requirements.
Data logging
– Storage capacity of over 100000 sets, the historical detected data can be read on the detector quickly.
– High-speed data transmission by USB, available for data downloading to PC.
Long operation time
– High capacity of lithium polymer rechargeable battery, for toxic gas: 14h continuously. For combustible gas: 10 h continuously.
High quality case
– Special high intensity engineering plastics housing, suitable for different kinds of situation and environment
– IP65 protection degree, water-proof, dust-proof, explosion-proof Industry
Application: Confined Space, Combustible Detection, Oxygen Detection, Toxic Detection
Situation: Furniture, wallpaper, coating, paper making, pharmacy, health care, disinfection, chemical fertilizer, livestock farm, green household, agricultural production.

SPECIFICATION



Sampling
With internal sampling pump, flow rate is up to 1L/min
Data logging
Data logging with adjustable interval, and available for data downloading to PC through USB cable.
Precision
≤±3%F.S. (higher precision is available)
Response Time
≤10S
Zero shift
≤±1%(F.S./year)
Display
LCD dot matrix display, with display of gas type, real time gas concentration, battery power, time, gas unit.
Temperature
-20℃~50℃
Humidity
0-95%RH (non-condensing)
Explosion-Proof
ExibⅡCT4
Degree of protection
IP65
Alarm
Sound: 85dBLight: LED, low alarm: blue, high alarm: red
Vibration: the detector will vibrate when powered on
Alarm point is settable according to customer requirement.
Battery
3.6V 2300mAh lithium polymer rechargeable battery, operate time is about 12h continuously, charging time: 4-6 h
Dimensions
205x75x32mm
Weight
300g
Approval
CE, CNEX explosion proof certificate, CMC(China Metrology Certification)
Warranty
12 months
