PTM300 Infrared Portable Syngas Analyzer Patented NDIR And TCD Technology

Place of Origin China
Brand Name Zetron
Certification CE
Model Number PTM300
Minimum Order Quantity 1 piece
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms L/C, D/P, D/A, T/T
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Handheld Biogas Analyzer Model Number PTM300
Detection Gas CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 Power Supply AC220~240VAC,50/60HZ
Warranty 12 Months Customized Support OEM, ODM, OBM
High Light

ptm300 portable syngas analyzer

,

infrared portable syngas analyzer

,

ndir portable syngas analyzer

Leave a Message
Product Description

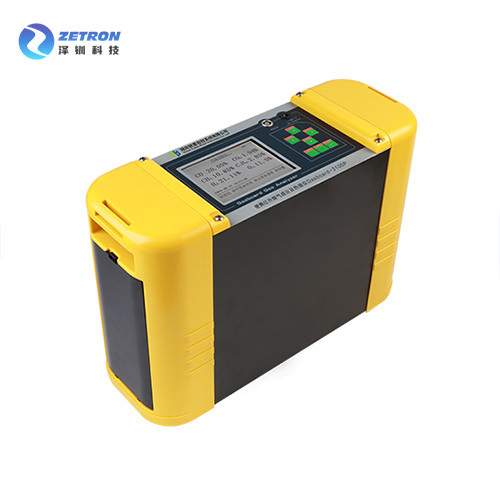

PTM300 portable syngas analyzer



OVERVIEW



PTM300 is a portable syngas analyzer based on NDIR, TCD, and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2, O2, CnHm, C2H2, C2H4, or any of their combination and calculate heat value.



FEATURES
  • Replacement to gas chromatography, mass spectrometry.
  • Patented NDIR and TCD technology, including ECD technology for reliable measurement of eight gases.
  • High-selectivity CH4 gas sensor, no interference from other hydrocarbons.
  • Fully compensated H2 sensor, no interference from CO, CO2, CH4 based on the intelligent correction.
  • Built-in sample pump, flow meter filters, and battery for portable operation
  • Internal data record and RS232 COM port for data output.
  • Modular sensor design, easy maintenance.



SPECIFICATION



Gas CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/calorific value calculation
Measurment Principle CO/CO2/CH4/C2H2/C2H4/CnHm:NDIR;
H2:TCD
O2:ECD
Measurment Range CO/CO2/CH4/H2:(0~100)%O2:(0~25)%;
C2H2/C2H4/CnHm:(0~10)%(optional)
Accuracy CO/CO2/CH4/C2H2/C2H4/CnHm:±1%F.S.;
O2/H2:±2%F.S.
Resolution 0.01%
Repeatability ≤1%
Response time T90<15s (NDIR)
Optimal flow Rate (0.7~1.2) L/min
Inlet Gas Pressure (2~50) kPa
Gas Condition No Tar, No Dust and No Water
Communication RS-485/RS-232
Power Supply Internal rechargeable Li-ion battery, External 12.6V charger
Display LCD Display



APPLICATION



All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing, Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users, Ice Skating & Hockey Arenas, Cannabis & Hemp Oil, Breweries and so on.
