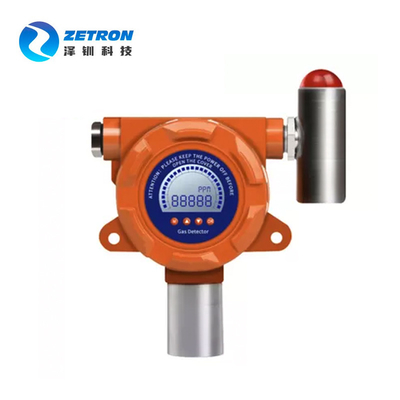

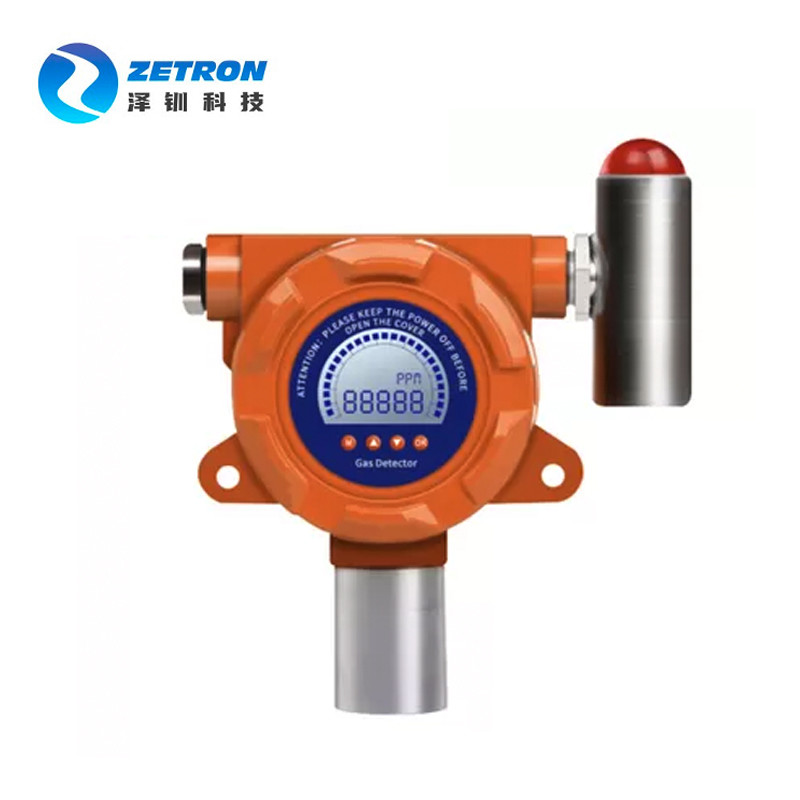

Audible Visual Alarm Fixed Gas Detector Online Infrared Remote Control

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC-100
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Gas Unit PPM
Place Of Origin Beijing, China Alarm Audible+Visual
Warranty 12 Months Customized Support OEM, ODM, OBM
Weight 1.6(kg) Size 180*140*92mm (L*H*W)
High Light

audible alarm fixed gas detector

,

visual alarm fixed gas detector

,

remote control fixed gas monitor

Leave a Message
Product Description

MIC100 Series
Online Toxic and Harmful Gas Detector



OVERVIEW


MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the filed.The types for detection are more than 500 types.

With an output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Simple to install service and calibrate, MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable, and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.



FEATURES



◆ Imported Sensors, Accurate, Fast and Stable
①It can be used in 24 hours continuous online monitoring of gas concentration, and the types for
detection are more than 500 types.
②The gas units can be customized: Normally PPM, %Vol, %LEL, other: mg/m3, PPHM, ppb, mg/l.

◆ Diversified Data Communication Methods
① It is possible for the real-time monitoring via the wired or remote wireless transmission,
and network transmission.
② Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (mod bus-RTU)
simultaneous output.
③ It is possible to select frequency output 200-1000Hz, Hart protocol signal, 1 ~ 5V output,
SMS alarm, wireless transmission.
④ It is compatible with GPRS, PLC, DCS system, and it is possible to drive the related equipment.
⑤ Two set of relay switch measures ports ( upper and lower limits) output:dry contact,
capacity 30V 1A, 125VAC 0.5A.



◆ Infrared Remote Control
Standard configuration includes the infrared remote control, it is possible for one-key operation via
infrared remote control function key, which can achieve the operation without opening the cover under
hazardous situations. such as: the functions like modification of the alarm point, density calibration,
zero-point calibration, noise reduction, restoring the factory setting, and so on.

◆ Multiple Optional Functions, Meet the Personalized Needs
■ Sound-light alarm (integrated or external)
■ AC pump
■ Brushless dc pump
■ Vacuum pump
■ Water vapor filter cylinder
■ Room-temperature automatic dehumidification and drainage system
■ Room-temperature manual dehumidification and drainage system
■ High-temperature flue gas pretreatment system

Audible Visual Alarm Fixed Gas Detector Online Infrared Remote Control 0



APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

Audible Visual Alarm Fixed Gas Detector Online Infrared Remote Control 1
