Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500S
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms L/C, D/A, T/T, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Brand Name Zetron
Model Number MIC500S Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l
Display Method 1.7-inch High-definition Color Screen Protection Level IP65
Weight 1.8kg Size 210*170*85mm (L*H*W)
High Light

zetron fixed gas detector

,

ip65 fixed gas detector

,

zetron toxic gas detector

Leave a Message
Product Description

MIC500S Fixed Toxic And Harmful Gas Detector



OVERVIEW



MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
With a 4-20 mA analog output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.
Simple to install service and calibrate, MIC500S requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.

SPECIFICATION



Gases to be detected Ozone/O3 Gas Detector
Detection range

0--1000 ppm

0-- 5000 ppm

0-- 50000ppm

0-- 200mg/L

Other ranges can be customized

Resolution

0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%Vol

0.001% Vol

Other ranges can be customized

Detection principle

Ultraviolet sensor

Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.

Depending on the type of gas, range, field environment, and user demand,

Sensor can be customized

Sensor service life

Electrochemical principle: 2 ~ 3 years;

Infrared principle: 5 ~ 10 years;

Thermal conductivity: 5 years

Allowable error ≤±3% F.S (other or higher precision levels can be customized)
Linearity ≤±2% Repeatability ≤±2% Uncertainty ≤±2%
Response time T90≤20 seconds Recovery time ≤30 seconds
Working environment Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Display method 1.7-inch high-definition color screen
Working voltage

12 ~ 30VDC direct current

the standard power supply for a single piece of equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A

Protection level IP65
Explosion-proof type Explosion suppression type
Explosion-proof mark ExdⅡCT6, certificate number: CNEx15.1283



FEATURES

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 0

①It can be used in 24 hours continuous online monitoring of single field gas concentration
and the types for detection are more than 500 types.
②There are 7 gas units to display, and the units can be switched freely.
Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 1

1.7-inch high-definition color screen, display the real-time concentration, and alarm state.

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 2

①It is possible for the real-time monitoring via the wired or remote wireless transmission, and network transmission.
②Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (modbus-RTU) simultaneous output.
③It is possible to select frequency output 200-1000Hz, Hart protocol signal, 1 ~ 5V output,
two-wire system 4 ~ 20mA, SMS alarm, wireless transmission (2 ~5 km or unlimited distance).
④It is compatible with secondary instrument, data acquisition module, PLC, DCS system,
and it is possible to drive the related equipment.

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 3

1. Multiple alarm modes, and multi-directional and three-dimensional indication alarm states.
Alarm types include concentration alarm and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
2. Zero-point automatic tracking; long-term use will not be affected by the zero drift.
3. Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
4. Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions,
sensor service life due to reminder, and function of reminder for the time of next concentration calibration.
5. Data recovery function; in case of misoperation, it is possible to select partial or full recovery.
6. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration misoperation,
which is possible to avoid the poor performance that may be caused by human factors.

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 4

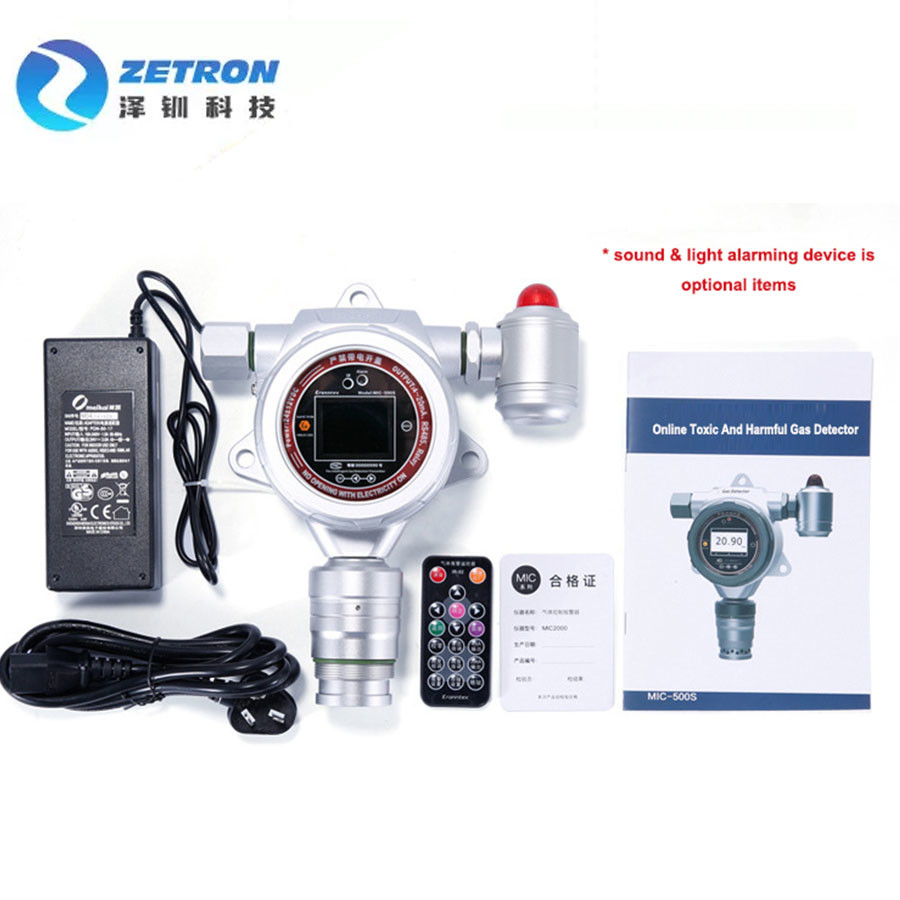

Standard configuration includes the infrared remote control, it is possible for one-key operation via an infrared remote
control function key, which can achieve the operation without opening the cover under hazardous situations.
such as the functions like modification of the alarm point, density calibration, zero-point calibration, noise reduction,
restoring the factory setting, and so on.

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 5
■Integrated sound & light alarming device, split-type sound & light alarming device,
24V DC stabilized voltage power supply.
■Wireless transmission
①It is possible to transfer data wirelessly to the cell phone, remote monitoring center,
monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize
the functions of data analysis, storage, printing, or the like on the computer.
■ Pretreatment system
①Room temperature and high humidity pretreatment system
②High temperature and high humidity pretreatment system
③High temperature high humidity and high dust pretreatment system
■Accessory for connection with a computer for monitoring
①Free upper-level host software, RS485 / RS232 converter
②For laptop without RS232 interface, USB / RS232 converting and connecting cable is needed,
if the network transmission is needed, TCP / IP converter will be further needed.



APPLICATION

All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

Toxic And Harmful Zetron Fixed Gas Detector 15m Infrared Remote Controller 6
