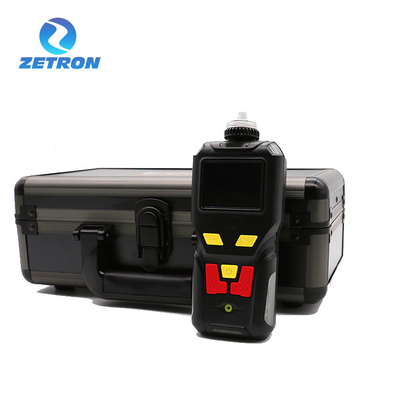

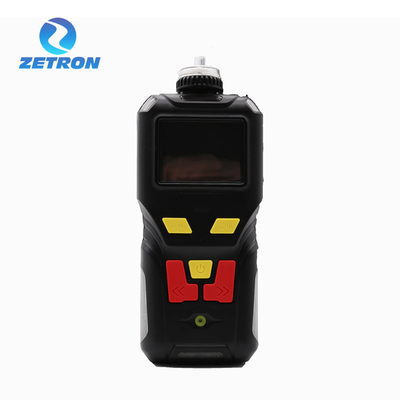

4 In 1 Natural Detect Portable Multi Gas Detector For Toxic Gases And Combustible Gas

  • 4 In 1 Natural Detect Portable Multi Gas Detector For Toxic Gases And Combustible Gas
  • 4 In 1 Natural Detect Portable Multi Gas Detector For Toxic Gases And Combustible Gas
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS400
Minimum Order Quantity 1 set
Price USD 100/set / 900/set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 In 1 Multi Gas Detector Gas Ex/LEL/CH4/O2/CO/H2S（optional)
Data Storage 100, 000 Entries Response Time <30s
Battery 3.6V Li-on Battery, 4500mAh Charging Time 8 Hours
Protection Level IP65 Alarm Mode Audible-visual Alarm,Vibration Alarm,Voice≥75dB@25cm
Exterior Dimensions 160×70×28mm Weight 300 G
Highlight

ex portable multi gas detector

,

combustible portable multi gas detector

,

4 in 1 portable multigas detector
Leave a Message
Product Description

MS400 Four-in-One
Toxic and Harmful Gas Detector

OVERVIEW



MS400 Series Gas Detector is up to 4 potential atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types, MS400 is unparalleled in its versatility, capability, and overall value.
Its adopted water-resistant line of portable gas detectors has transformed the market with its matchless array of features.
Continuously monitoring and displaying concentrations of up to 4 gases, the compact and lightweight MS400 was designed and engineered with an extensive host of applications in mind.















FEATURES & BENEFITS





1. Specially Designed for Use With Its Internal Pump, Optimized for Your Requirements

The MS400 is equipped with a very powerful internal pump.
It can be connected with hoses of up to 45 meters in length.
This means the pump is only operated when you actually need it. That saves energy, reduces wear and tear, and thereby extends the lifespan of the pump.



2. Compact Design, Easy to Use

Handy and durable, the MS400 is intuitive to operate single-handedly using three function keys. The easy-to-read color display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.



3. Large Data Storage Management, Release, and Documentation In No Time
Standard configuration is the data storage capacity for 100, 000 entries.
Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.
It is supported to use the localhost to view, delete data, and upload the data via USB interface to the computer for data analysis or printing.RS485 communication is an optional configuration.



4. Clear signaling Design
The signal system of the MS400 is based on a clear color code: sound & light alarm, vibration alarm, display screen visual alarm. These are also documented in the data logger.



5. Economical Calibration Management
The deviation of the concentration which was detected by the instrument from the standard gas concentration can be corrected by calibrating the concentration or changing the display coefficients.



SPECIFICATION











Gases to be detected

Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.

Optional configuration: temperature and humidity measurements.
Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution

0.01ppm or 0.001ppm (0 ~ 10 ppm);

0.01ppm (0 ~ 100 ppm),

0.1ppm (0 ~ 1000 ppm),

1ppm (0 ~ 10000 ppm or more),

0.01 mg/l (0 ~ 200 mg/l),

0.1% LEL,

0.01%Vol,

0.001% Vol
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Maximum allowable error ≤±3% F.S (higher precision levels can be customized)
Linearity ≤±2% Linearity ≤±2% Linearity ≤±2%
Response time T90≤30 seconds Recovery time ≤30 seconds
Temperature and humidity measurement Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply 3.6VDC, 4500mA high capacity rechargeable polymer battery
Display mode 2.31-inch high-definition color screen
Communication interface USB (charging and communication), optional: RS485 communication interface
Data storage Standard configuration is the data storage capacity for 100, 000 entries
Protection level IP65
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT6
Exterior dimensions 160×70×28mm
Weight 300 g
Standard accessories Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
Optional items Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter), 0.4-meter stainless steel sampling handle (with a dust filter, not retractable), high-temperature sampling and cooling filter handle, high-temperature humidity pretreatment system, multiple humidity dust filter, hanging rope, CD-ROM (upper-level computer communication software)



APPLICATION


All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
