Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2

  • Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2
  • Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2
  • Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2
Place of Origin China
Brand Name Zetron
Certification CE
Minimum Order Quantity 1 set
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number PTM600 Product Name Multi Gas Analyzer
Gas Combustible Gas/H2S/CO/O2/H2S/H2 Protection Level IP66
Weight 2.5kg Size 230x210x120 Mm
High Light

composite flue gas detector

,

co2 flue gas detector

,

ch4 flue gas detector
Leave a Message
Product Description

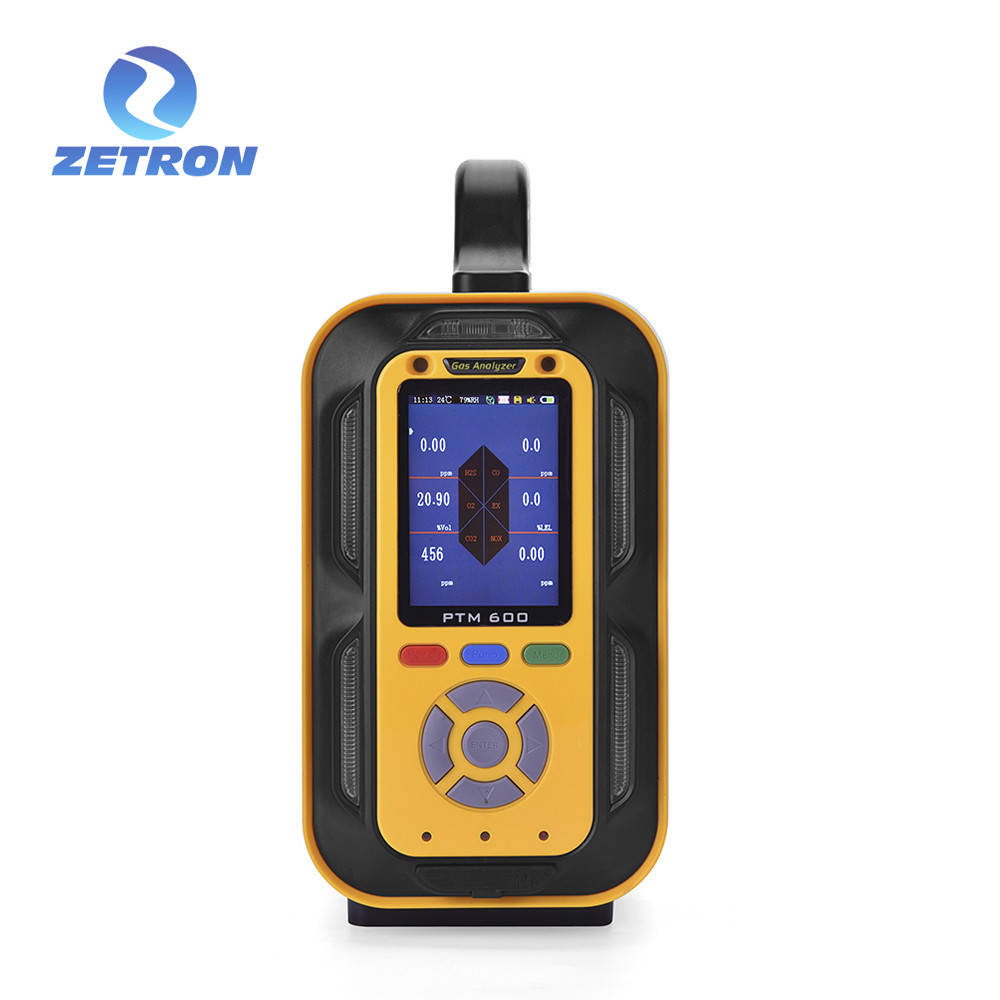

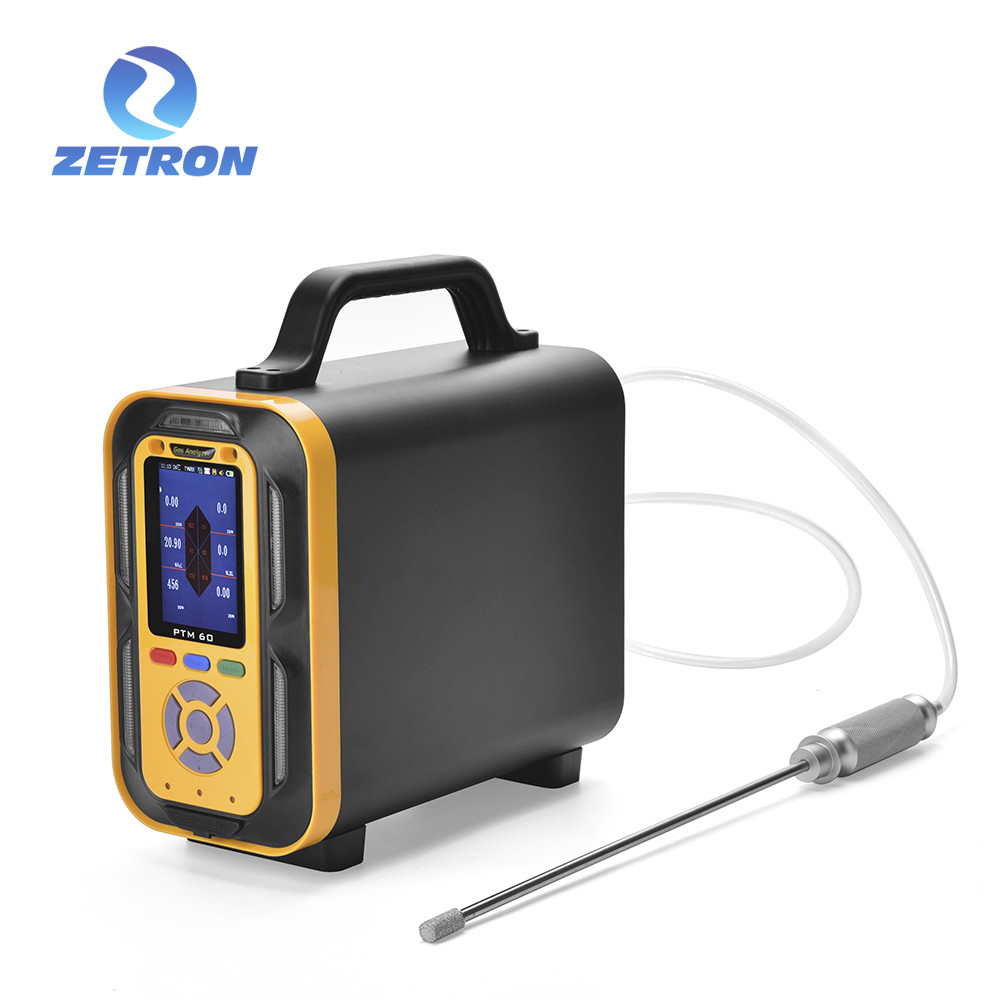

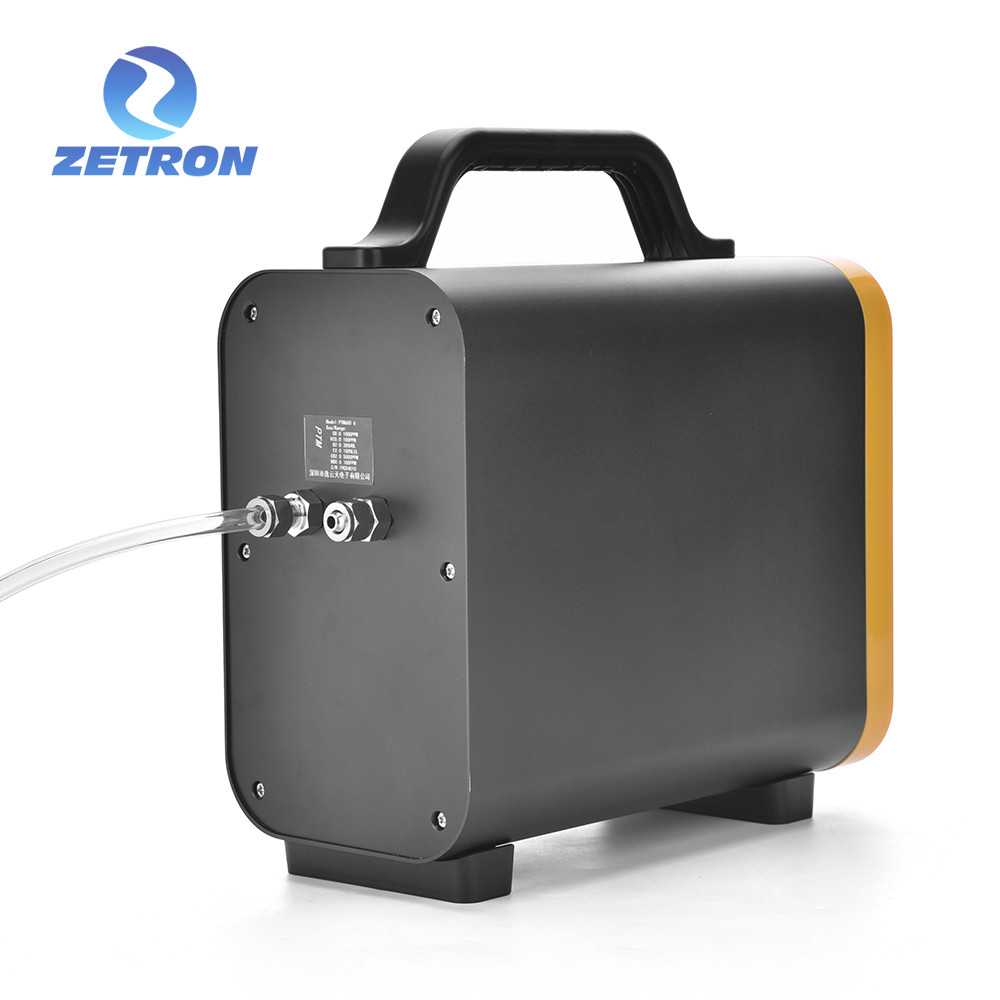

PTM600 portable gas detector

OVERVIEW



PTM600 portable gas detector has the function of measuring multi gases, temperature, and humidity.
The product is provided with high measurement precision, stable performance, and simple operation, and is convenient to carry.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.



Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2 0

Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2 1

Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2 2Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2 3





FEATURES



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper-level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition



PARAMETERS



Gases to be detected
Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Resolution
1ppm
other resolutions can be customized
Allowable error
≤±2% F.S (other or higher precision levels can be customized)
Working environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Display mode
3.5-inch high-definition color screen
Alarm mode
Sound & light alarm, vibration alarm, turning off the alarm.
Protection level
IP66
Explosion-proof mark
Exia II CT6
Exterior dimensions
230×210×120 mm (L×H×W)
Weight
2.5Kg



APPLICATION



All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, warehousing, smoke gas analysis, air governance, and so on.



Industrial Composite Flue Gas Detector PTM600 O2 CO CO2 H2S CH4 H2 4
