Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS600
Minimum Order Quantity 1 set
Price USD 446/set - 1298/set
Packaging Details 195*77*46mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 6 In 1 Gas Analyzer Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM
Function Multi Gas Detector Protection Level IP67
Exterior Dimensions 180×78×33mm (L×W×H) Weight 350g
High Light

air quality portable gas leak detector

,

zetron portable gas leak detector

,

6in1 portable multi gas detector

Leave a Message
Product Description

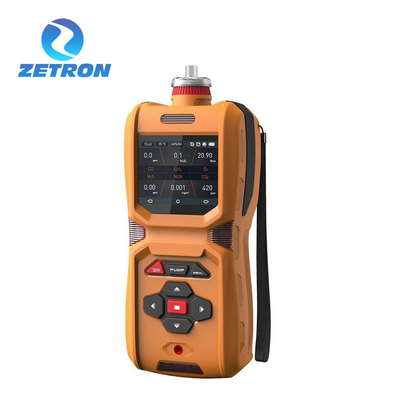

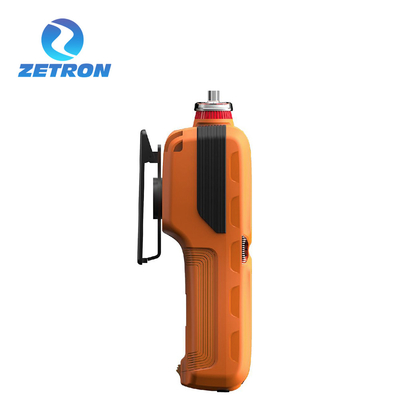

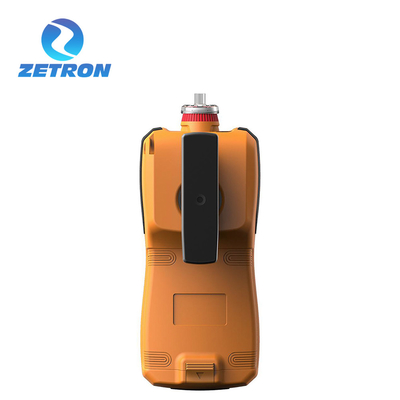

MS600 Six-In-One Portable Gas Detector



OVERVIEW



MS600 Series Portable Composite Gas Detector can be used in: mobile rapid and accurate detection of a variety of gas concentration and measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will sound.
The interface is simple and easy to operate. far transfer distance, high anti-jamming capability.The shell is made of high strength ABS material, IP65 protection grade, dustproof, waterproof, explosion-proof, and can withstand the test of harsh environment.
It is possible to simultaneously detect 1 ~ 6 types of gases, and the units can be switched freely. The types for detection are more than 500 types.

      Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor 0Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor 1Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor 2

Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor 3

FEATURES & BENEFITS

· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)

· 0.4-meter stainless steel sampling handle (with a dust filter, not retractable)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system

· External remote sampling pump
· SD card,
USB disk storage
· Wireless data communications: RS232, infrared communication, automatic recognition

SPECIFICATION



Gases to be detected
Arbitrary combination of 1 ~ 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.Optional configuration: temperature and humidity measurements.
Application scenarios
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%LEL
0.001% Vol
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity,
PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand.
Allowable error
≤±1% F.S (other precision levels can be customized)
Linearity
≤±1%
Repeatability
≤±1%
Uncertainty
≤±1%
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode
2.5-inch high-definition color screen
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level
IP67
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter



APPLICATION


All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, air governance, warehousing, smoke gas analysis, and so on.



Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor 4
