5 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Multi Gas Detector Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Black
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 350g Size 180*78*33mm
High Light

5in1 portable lpg gas leak detector

,

ip66 portable lpg gas leak detector

,

ip66 portable multi gas detector

Leave a Message
Product Description

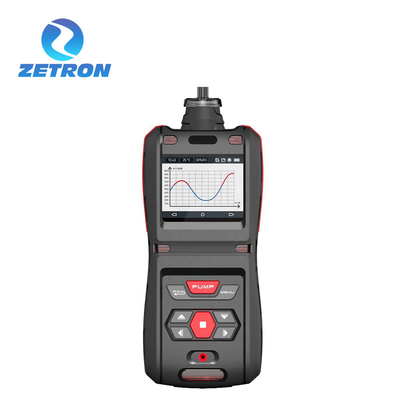

MS500 5 in 1 Portable Toxic And Harmful Gas Detector



OVERVIEW



MS500 portable toxic and hazardous gas detector is used for portable and rapid detection of toxic and hazardous gas concentration, temperature and humidity measurement and alarm. It adopts 2.5-inch HD color screen to display the concentration in real time, and selects imported brands (Honeywell, Japan fundamental, UK City, UK Alpha, UK Dynament, Switzerland Membrapor, etc.) gas sensors, the main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ion. The MS500 can detect gas concentrations in pipelines or confined spaces, atmospheric environments, gas leaks or various background gases such as ammonia or oxygen with high concentrations of single gas purity, and more than 500 types of gases.

5 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 0
5 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 15 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 25 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 35 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 45 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 5

5 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 6

5 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 75 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 85 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 95 In 1 Outdoor Air Quality Monitor Ip66 Portable Lpg Gas Leak Detector 10



FEATURES



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
· high temperature sampling and cooling filter handle
· high temperature humidity pretreatment system
· multiple humidity dust filter
· hanging rope
· CD-ROM (upper level computer communication software)
·External mini wireless infrared printer



SPECIFICATION



Gases to be detected
Arbitrary combination of 1 ~ 5 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases,
TVOC, and so on.
Optional configuration: temperature and humidity measurements.

Application scenarios

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

Detection range

0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%,
0.001% Vol
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error
≤±2% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.

Sample gas temperature

-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect
the smoke gas at the temperature of 800 ℃ or higher.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.6VDC, 5500mA high capacity rechargeable polymer battery
Detection mode

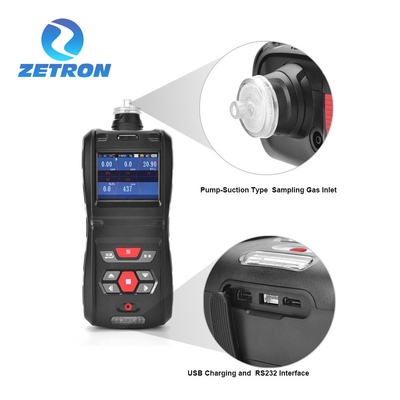

Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min,
three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, Turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP66
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter
Optional items
Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1
meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable), high temperature sampling and cooling
filter handle, high temperature humidity pretreatment system, multiple humidity dust filter, hanging rope, CD-ROM (upper level
computer communication software), external mini wireless infrared printer



APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
