Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500S
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Brand Name Zetron
Model Number MIC500S Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l
Display Method 1.7-inch High-definition Color Screen Protection Level IP65
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

toxic and harmful fixed gas detector

,

continuous online monitoring fixed gas detector

Leave a Message
Product Description

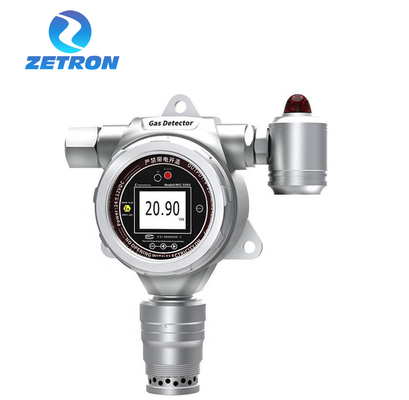

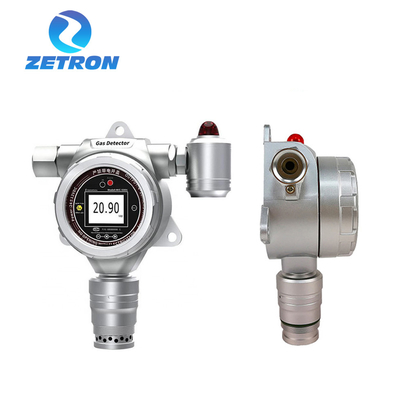

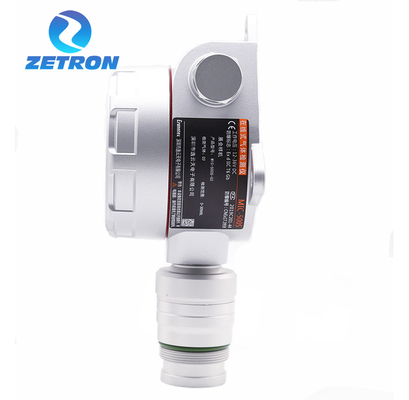

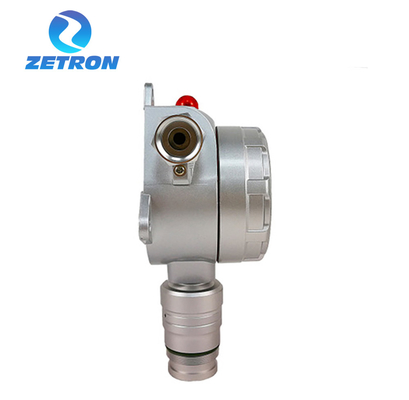

MIC500S Fixed Toxic And Harmful Gas Detector



OVERVIEW



MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types. With a 4-20 mA analog output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.



Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 0Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 1Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 2

Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 3Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 4Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 5Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 6Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 7Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 8Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 9Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 10

Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy 11


SPECIFICATION



Gas
CO2 (Carbon Dioxide)
Range
0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline Type
Wall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP65; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method
Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items
Alarms;Wireless Transmission;Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters



FEATURES



1.multi-directional and three-dimensional indication alarm states.

Alarm types include: concentration alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
2. Zero-point automatic tracking; long-term use will not be affected by the zero drift.
3. Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
4. Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions,
sensor service life due reminder, and function of reminder for the time of next concentration calibration.
5. Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
6. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation,
which is possible to avoid the poor performance that may be caused by human factors.



APPLICATION

All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
