Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC-100
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Gas Unit PPM
Place Of Origin Beijing, China Alarm Audible+Visual
Warranty 12 Months Customized Support OEM, ODM, OBM
Weight 1.6(kg) Size 180*140*92mm (L*H*W)
High Light

oem co gas leak detector

,

co gas leak detector fixed

,

oem fixed gas leak detector

Leave a Message
Product Description

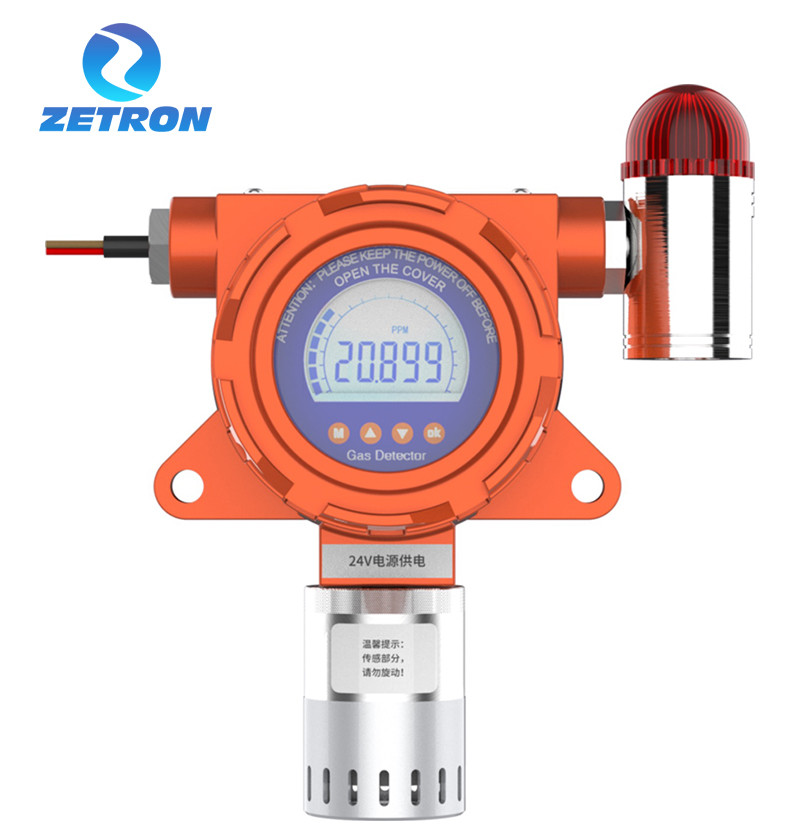

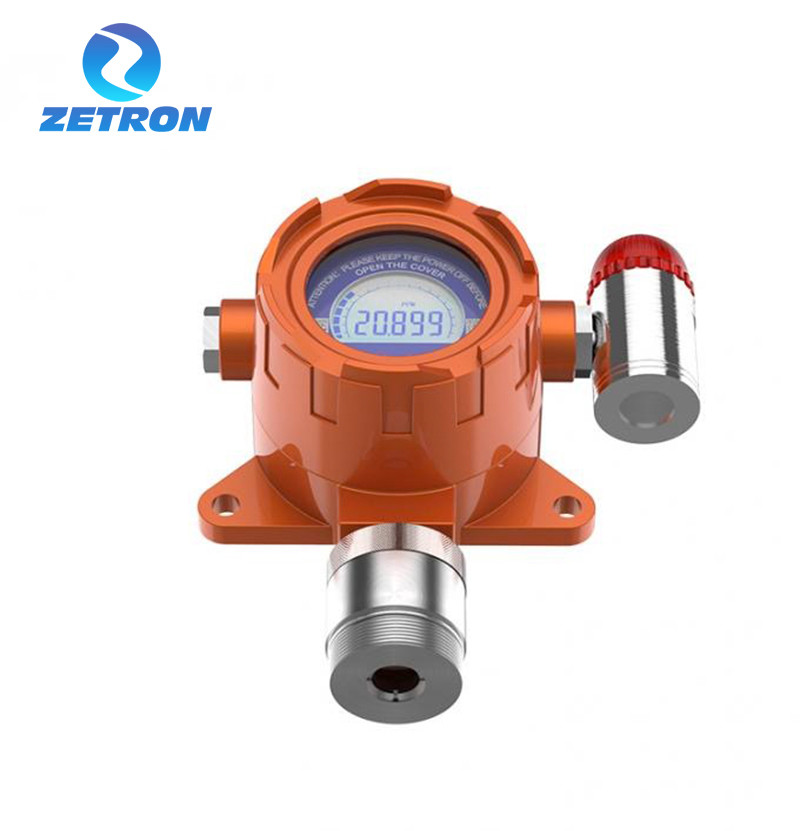

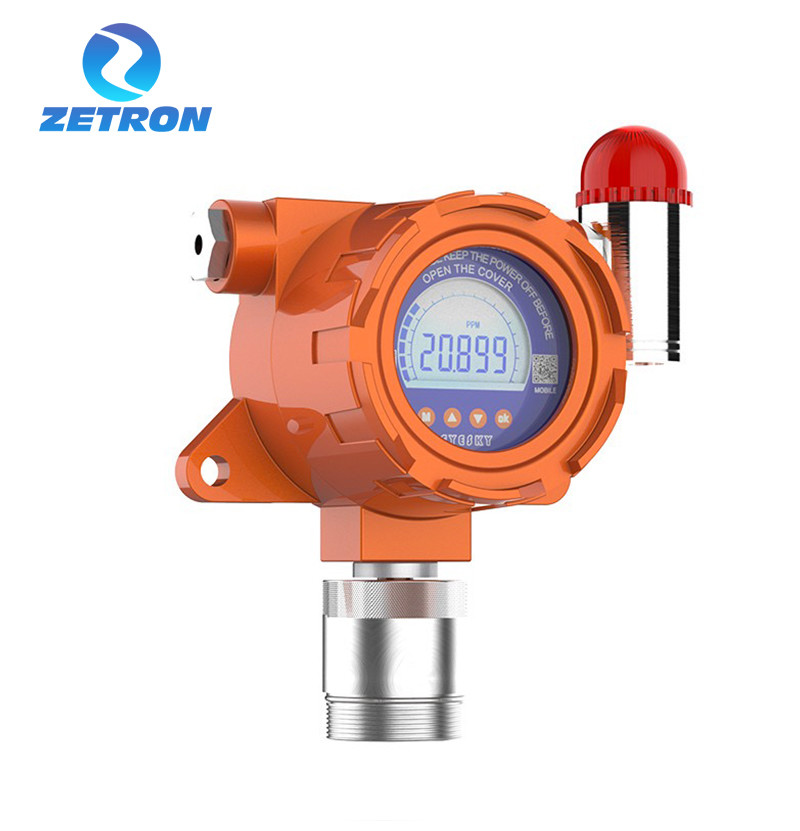

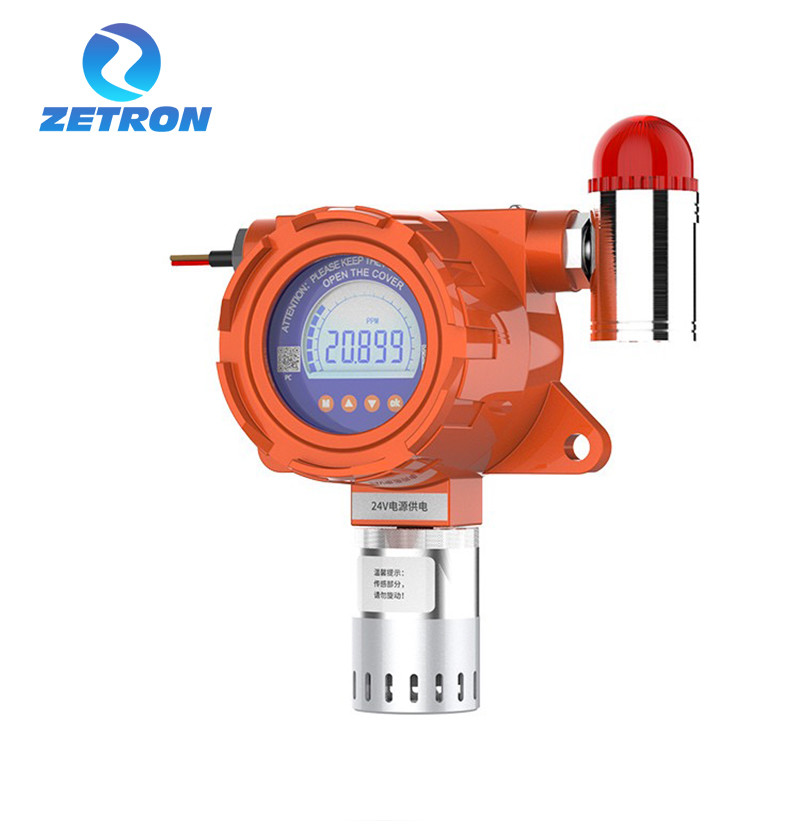

MIC100 Series
Online Toxic and Harmful Gas Detector



OVERVIEW


MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the field. The types for detection are more than 500 types.
MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable, and explosion-proof shell and fluorocarbon surface treatment processes are suitable for use at a variety of hazardous places and corrosive environments.

Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 0Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 1Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 2Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 3Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 4=Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 5Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed 6



FEATURES
  • Imported Sensors, Accurate, Fast and Stable
  • 24 hours continuous online monitoring of gas concentration, and the types for detection are more than 500 types.
  • Gas units can be customized: Normally PPM, %Vol, %LEL, other: mg/m3, PPHM, ppb, mg/l.
  • Diversified Data Communication Methods
  • Infrared Remote Control
SPECIFICATION



Gas
Carbon Monoxide
Sensor
Electrochemical
Range
0-500,1000,2000ppm
Can be customized
Resolution
0.1 ppm; Can be customized
Smapling Method
diffusion/pump
Control Method
Controller/Infrared remote control
Allowable error
≤±3% FS; Can be customized
Work Method
24-hour continuously monitoring
Response time
T90≤20 seconds;Can be customized
Recovery time
≤10 seconds; Can be customized
Working Temp
-20 ℃ ~ + 70 ℃;(Standard Values)
-40 ℃ ~ + 80 ℃;(Limit Value)
Humidity
10 ~ 95% RH
Voltage
≤2.5 W(DC24V)
Power
12~30VDC
Protection level
IP65
Explosion-proof
Exd Ⅱ CT6
Alarm
Audible;Light(option)
Display
LCD/without LCD Display
Cable
PVVP3 * 1.0mm 2
Transmission Distance
≤1000m
Installation
Wall-mounted;Ceiling-mounted;Vertical pipe-mounted; Horizontal pipe-mounted
Output
① Three-wire system 4 ~ 20mA standard signal, and it is possible to work with controller module, PLC, DCS system.
② Standard bus RS485 (mod bus-RTU) simultaneous output, and it is possible to view the stored data on the computer via RS232 card.
③ Two set of relay switch measures ports ( upper and lower limits) output:dry contact, capacity 30V 1A, 125VAC 0.5A.
④ Voltage Signal Output: can set 0-5v, 0-10v signal output (optional).
⑤ Other Output: Frequency, Hart, Wireless, GPRS, NB etc.
Size(mm)
180*140*92
Weight(Kg)
1.6
Kit
Manual, qualification certificate, warranty card, outer packaging box

APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
