Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS104K
Minimum Order Quantity 1 set
Price USD 145/set- 879/set
Packaging Details 130*68*34mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 In 1 Gas Detector Gas H2S O2 CO Ex (optional)
Type Electrochemical Sensor Gas Detector Function PID TVOC Air Detector
Gas Unit Ppm LEL Sampling Method Diffusion Sampling
High Light

cl2 portable multi gas monitor

,

datalog function portable multi gas detector

,

so2 portable multi gas detector

Leave a Message
Product Description

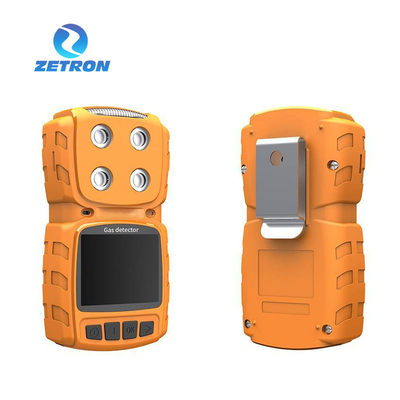

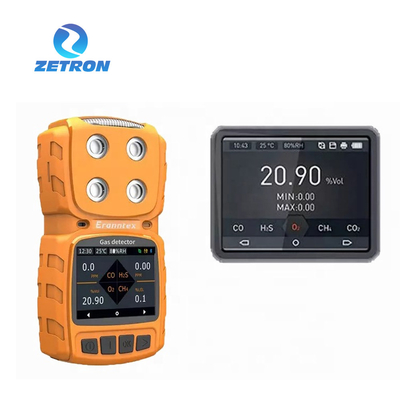

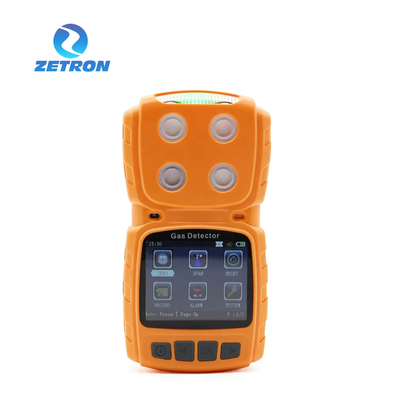

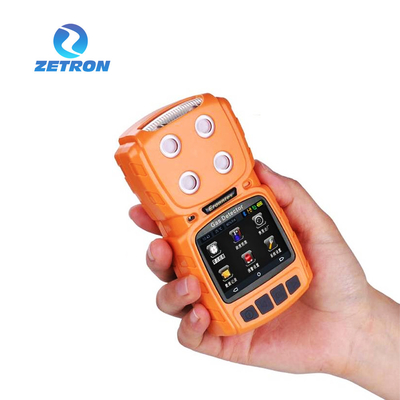

Portable Multi Gas Detector

1- 4 Toxic Gas Detector



OVERVIEW



It can be used in rapid detection of a variety of gas concentration and measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will emit sound & light vibration as alarm. Simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely.



Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k 0Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k 1

Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k 2Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k 3Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k 4

Industrial Cl2 So2 H2s Toxic Portable Multi Gas Detector Datalog Function Ms104k 5



FEATURES
  • It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely.
  • Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.
  • Standard configuration is the data storage capacity for 100, 000 entries.
  • Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.
  • It is supported to use the localhost to view, delete data, and upload the data via USB interface to the computer for data analysis or printing.RS485 communication is an optional configuration.
SPECIFICATION



Gases to be detected
Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Allowable error
≤±3% F.S (higher precision levels can be customized)
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Display mode
2.31-inch high-definition color screen
Detection mode
Diffusion type measurement. The calibrated flow rate is 500 ml/minute.
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP65
Explosion-proof mark
Exia II CT4 Ga
Exterior dimensions
130×68×34mm (L×W×H)
Weight
200g



APPLICATION



The detector is widely used in petroleum, environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection that need safety monitoring for toxicity and harmfulness, explosion prevention.
