Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle

Place of Origin China
Brand Name Zetron
Certification CE
Model Number PTM600
Minimum Order Quantity 1 set
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi Gas Analyzer Model Number PTM600
Gas Combustible Gas/H2S/CO/O2/H2S/H2 Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Yellow
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 2.5kg Size 230x210x120 Mm
High Light

ptm600 portable multi gas detector

,

diesel engines portable multi gas detector

,

diesel engines portable multi gas monitor

Leave a Message
Product Description

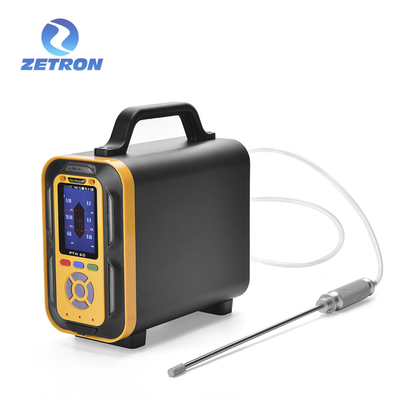

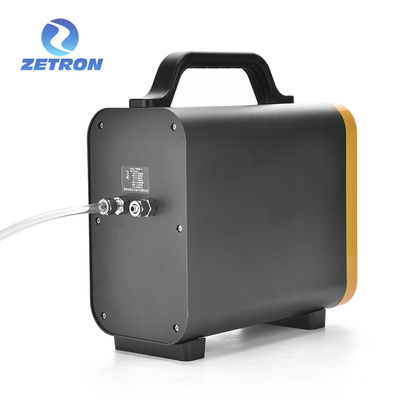

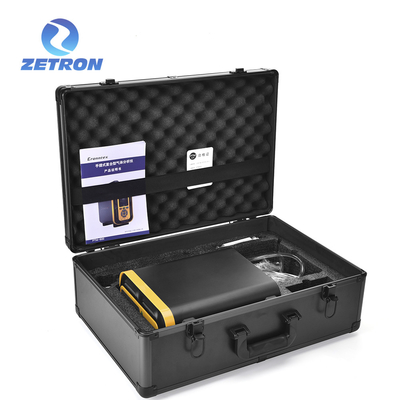

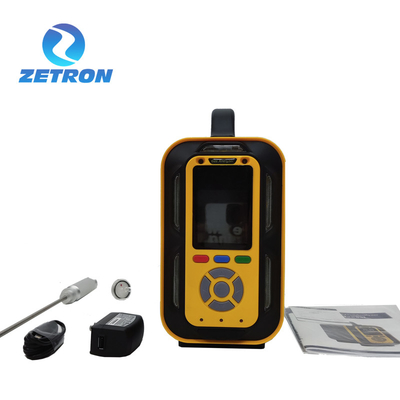

PTM600 portable gas detector

OVERVIEW



PTM600 portable gas detector has the function of measuring multi gases, temperature, and humidity.
The product is provided with high measurement precision, stable performance, and simple operation, and is convenient to carry. It is suitable for the indoor environment of the family, office, inside of cars and natural environment, etc.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.





Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 0Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 1Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 2Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 3Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 4

Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 5Ptm600 Portable Multi Gas Detector For Diesel Engines With 800 Degree Handle 6



FEATURES



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper-level computer communication software)
·SD card storage
·USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition



PARAMETERS



Gases to be detected
Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Detection range
Electrochemical sensor for O2:0-30%VOL
Electrochemical sensor for H2: 0-1000ppm
IR sensor for CO: 0-1000ppm
IR sensor for CO2: 0-100%VOL
IR sensor for H2S: 0-200ppm
IR sensor for CH4:0-100%LEL
other ranges can be customized
Resolution
1ppm
other resolution can be customized
Detection principle
PID photoionization Depending on the type of gas, range, field environment and user demand, can be customized.
Allowable error
≤±2% F.S (other or higher precision levels can be customized)
Working environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Power supply
3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode
3.5-inch high-definition color screen
Detection mode
Built-in pump-suction type measurementFlow rate at 800 ml / min
Alarm mode
Sound & light alarm, vibration alarm, turning off the alarm.
Protection level
IP66
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
230×210×120 mm (L×H×W)
Weight
2.5Kg



APPLICATION



All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
