Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Multi Gas Detector Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Black
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 350g Size 180*78*33mm
High Light

5in1 portable multi gas detector

,

coal mines portable multi gas detector

,

5in1 handheld multi gas detector

Leave a Message
Product Description

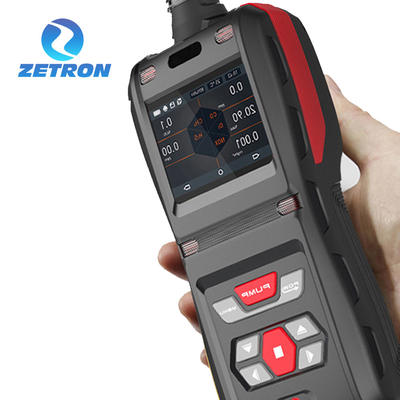

MS500 5 in 1 Portable Toxic And Harmful Gas Detector



OVERVIEW



Graphical display, and use the form of the curve to reflect the trend of gas concentration changes in a certain period of time. Data recovery function; in case of misoperation, it is possible to select partial or full recovery. It is possible to set whether to display the maximum value, minimum value, average value, or not. Standard USB charging port, with charging protection function, USB hot-plug supported, and the charging status instrument can work properly. 2100mA high capacity rechargeable polymer battery is adopted, so it is possible to work for a long period of time. High-precision temperature and humidity measurements (optional configuration). Real-time detection or timing detection is supported.





FEATURES



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· 0.4-meter stainless steel sampling handle (with a dust filter, not retractable)
· high-temperature sampling and cooling filter handle
· high-temperature humidity pretreatment system
· multiple humidity dust filter
· hanging rope
· CD-ROM (upper-level computer communication software)
·External mini wireless infrared printer



SPECIFICATION



Gases to be detected
CO Carbon monoxide/EX/H2S/O2
Application scenarios
All the cases which require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range
O2:0-30%VOL,CO:0-100ppm, H2S:0-100ppm,EX:0-100%LEL
and other ranges can be customized.
Resolution
O2:0.01%VOL, CO:0.1ppm, H2S:0.01ppm,EX:1%LEL
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error
≤±2% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect
the smoke gas at the temperature of 800 ℃ or higher.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.6VDC, 5500mA high capacity rechargeable polymer battery
Detection mode
Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min,
three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, Turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP66
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter
Optional items
Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1
meter), 0.4-meter stainless steel sampling handle (with a dust filter, not retractable), high-temperature sampling and cooling
filter handle, high-temperature humidity pretreatment system, multiple humidity dust filters, hanging rope, CD-ROM (upper level
computer communication software), external mini wireless infrared printer


Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 0
Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 1Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 2Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 3Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 4Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 5

Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 6

Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 7Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 8Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 9Ms500 Portable Multi Gas Detector Universal 5 In 1 Hand Held For Coal Mines 10



APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
