PTM600-S Wireless Interconnected Multifunctional Gas Environmental Monitoring Alarm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Item | Simultaneous Detection Of 4 Gases, Supporting Up To 6 Gases | Place Of Origin | Beijing, China |
|---|---|---|---|
| Model Number | PTM600-S | Warranty | 12 Months |
| Screen | 3.5-inch LCD | Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. |
| Work Modes | Diffusion And Pumping | Weight | 300g |
| High Light | wireless gas environmental monitoring alarm,lcd gas environmental monitoring alarm |
||
Product Description

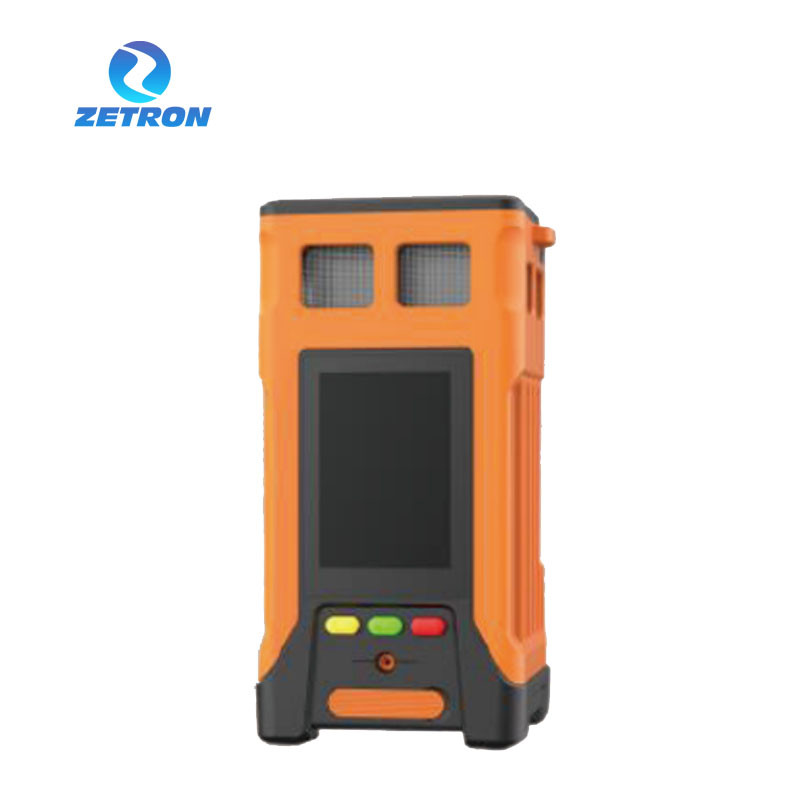

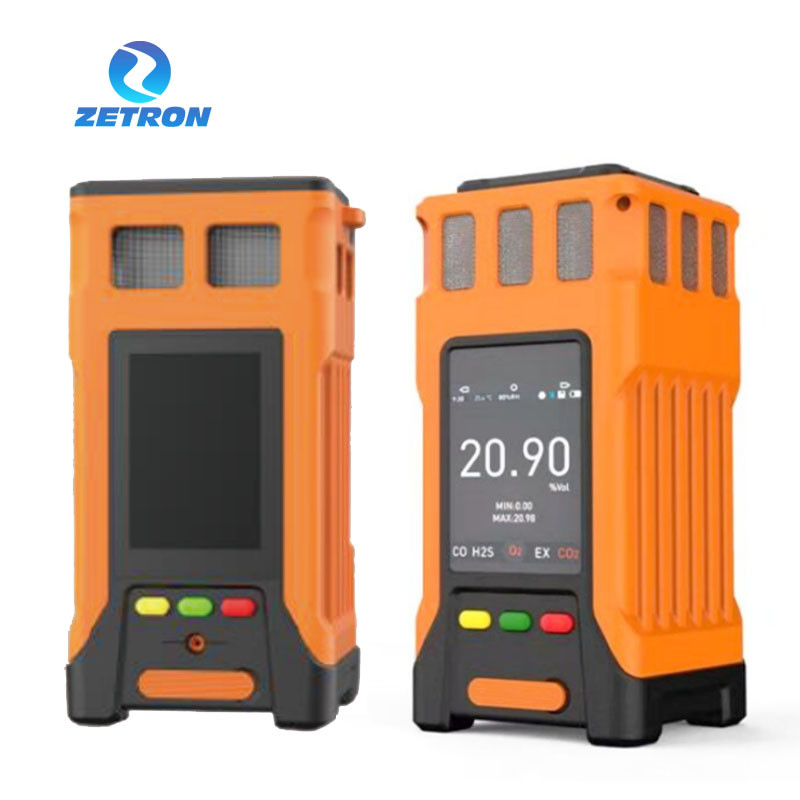

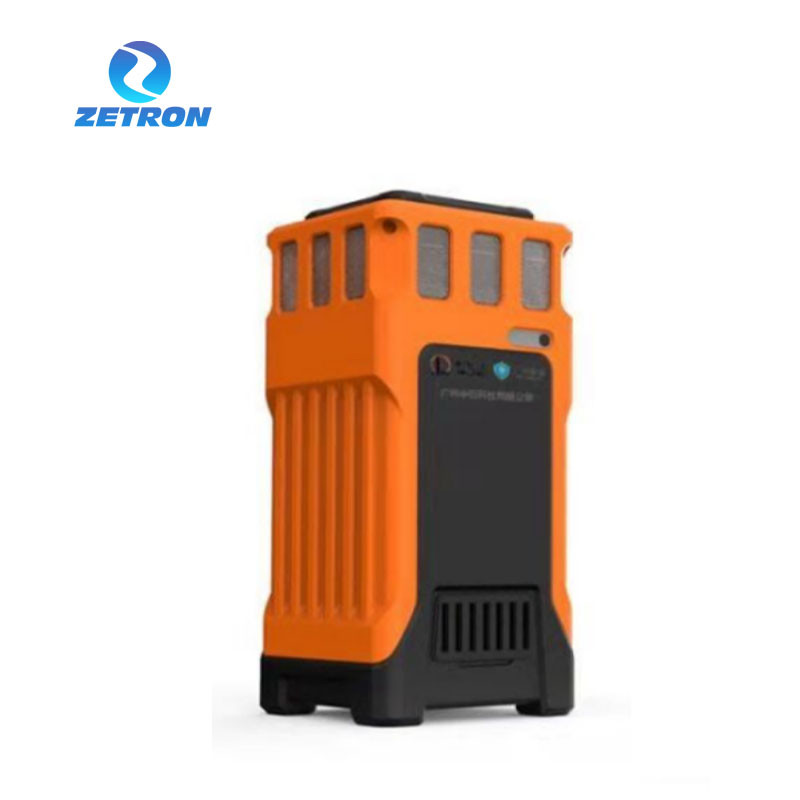

PTM600-S Intelligent Gas Warning Instrument
OVERVIEW
Wireless interconnected multifunctional gas environmental monitoring alarms enable individual gas detection and area monitoring, keeping workers aware of their surroundings by sharing gas readings and alarm information between gas monitors. When a gas hazard, worker fall, or panic situation occurs causing the instrument to sound an alarm, all companions in the wireless workgroup area will immediately receive notification of gas hazards and personnel injuries. Supervisors can view video images through the app or operational control platform, real-time maps to identify worker and instrument locations, and the system provides real-time text and alarm message notifications when an event occurs to facilitate timely viewing and response to events and, if necessary, remote notification voice announcements to guide field personnel.
SPECIFICATION
|
Detecting gas
|
Hydrogen sulfide (H2S), carbon monoxide (CO), combustible (EX), oxygen (O2)
|
|
Detection principle
|
Hydrogen sulfide, carbon monoxide, oxygen: imported electrochemical sensors, Combustible: import catalytic combustion
|
|
Detection range
|
Hydrogen sulfide: 0 ~ 100PPM
|
|
Carbon monoxide: 0~1000PPM
|
|
|
Oxygen: 0-25%VOL
|
|
|
Combustible gas: 0-100%LEL
|
|
|
Resolution
|
H2S: 0.1PPM
|
|
CO:1PPM
|
|
|
O2:0.01%VOL
|
|
|
EX:0.1%LEL
|
|
|
Signal output
|
Support 485, 4-20mA, LORA wireless transmission.This project mainly focuses on 4G network transmission (other wireless
transmission functions can be customized, such as: zigbee, 433, WIFI, etc.) |
|
Response time
|
T90≤20seconds
|
|
Working conditions
|
Temperature: -20℃-50℃; Humidity: 0-90%RH (no condensation)
|
|
Explosion-proof grade
|
Exd IICT6
|
|
Working voltage
|
12～30V (DC DC, the standard power supply of single device is 24V, 1A or DC switching power supply more than 1A)
|
|
Protection level
|
IP66 splash and rainproof
|
|
Video monitoring
|
2.2 megapixel, support infrared night vision, customizable gimbal, zoom camera
|
|
Location information
|
Support GPS/BeiDou positioning
|
FEATURES
> Unique shape design, beautiful and elegant, easy to disassemble and maintain.
>Four kinds of compound gas detection at the same time, supporting both diffusion and pumping.
>Support GPS/BeiDou position positioning.
>3.5-inch high-definition LCD display, graphical interface display, friendly human-computer interaction.
>Curve analysis, indicating the trajectory and trend of gas concentration.
>Support SD card storage with large data capacity.
>Support for voice broadcast of alarm and voice broadcast of notification sent remotely from the platform.
>Support for remote control of the alarm and the issuance of sound and light warnings
>Support for alarm interconnection between the warning relay and the detector, to achieve regional alarm.
>Multiple alarm output modes >Support remote video monitoring to view the condition around the equipment
>Support for wifi, lora, 4G and other wireless communication methods
>Large battery capacity, long standby time
>Support usb fast charging
>With explosion-proof function Support signal relay function (customized)
APPLICATION SCENES
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
