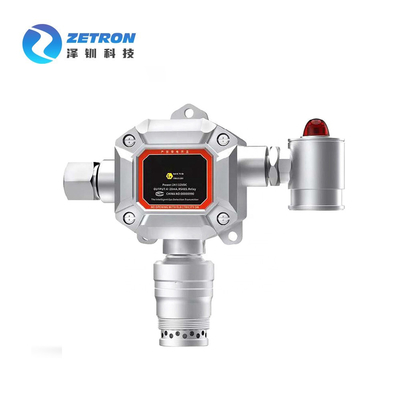

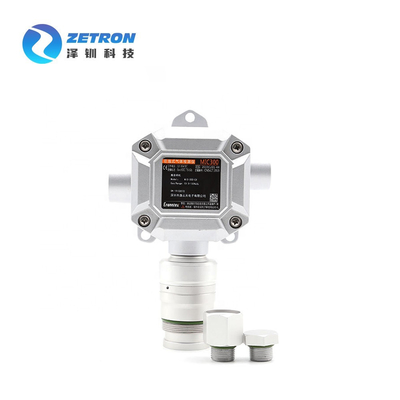

Mic300 Fixed Gas Detector Outdoor Indoor 0-100ppm Industrial Toxic And Harmful O3
Product Details
| Product Type | MIC-300 | Detection Range | 0～1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional |
|---|---|---|---|
| Explosive Grade | Exd II CT6/DIP A20 TA, T6 | Protection Level | IP66 |
| Size | 210*170*85mm (L*H*W) | Weight | 1.8(kg) |
| Highlight | mic 300 fixed gas detector,o3 fixed gas detector |
||
Product Description
MIC300 Online Toxic and Harmful Gas Detector
OVERVIEW
MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
With a 4-20 mA analog output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Simple to install service and calibrate, MIC500 requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
SPECIFICATION
|
Type
|
Fixed Gas Detector
|
||||
|
Detection range
|
0~ 10ppm
0~ 20ppm
0~50ppm
0~100ppm
Other ranges can be customized
|
||||
|
Detection principle
|
Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Sensor can be customized
|
||||
|
Sensor service life
|
Electrochemical principle: 2 ~ 3 years;
Infrared principle: 5 ~ 10 years;
Thermal conductivity: 5 years
|
||||
|
Response time
|
T90≤30 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
|
||||
|
Power supply reference
|
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
|
||||
|
Working method
|
Fixed type installation, online detection, diffusion type measurement
|
||||
|
Protection level
|
IP65
|
||||
|
Explosion-proof mark
|
ExdⅡCT6, certificate number: CNEx15.1283
|
||||
|
Exterior dimensions
|
233×205×65mm (L×H×W)
|
||||
|
Weight
|
1.0 Kg
|
||||
APPLICATION
All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
