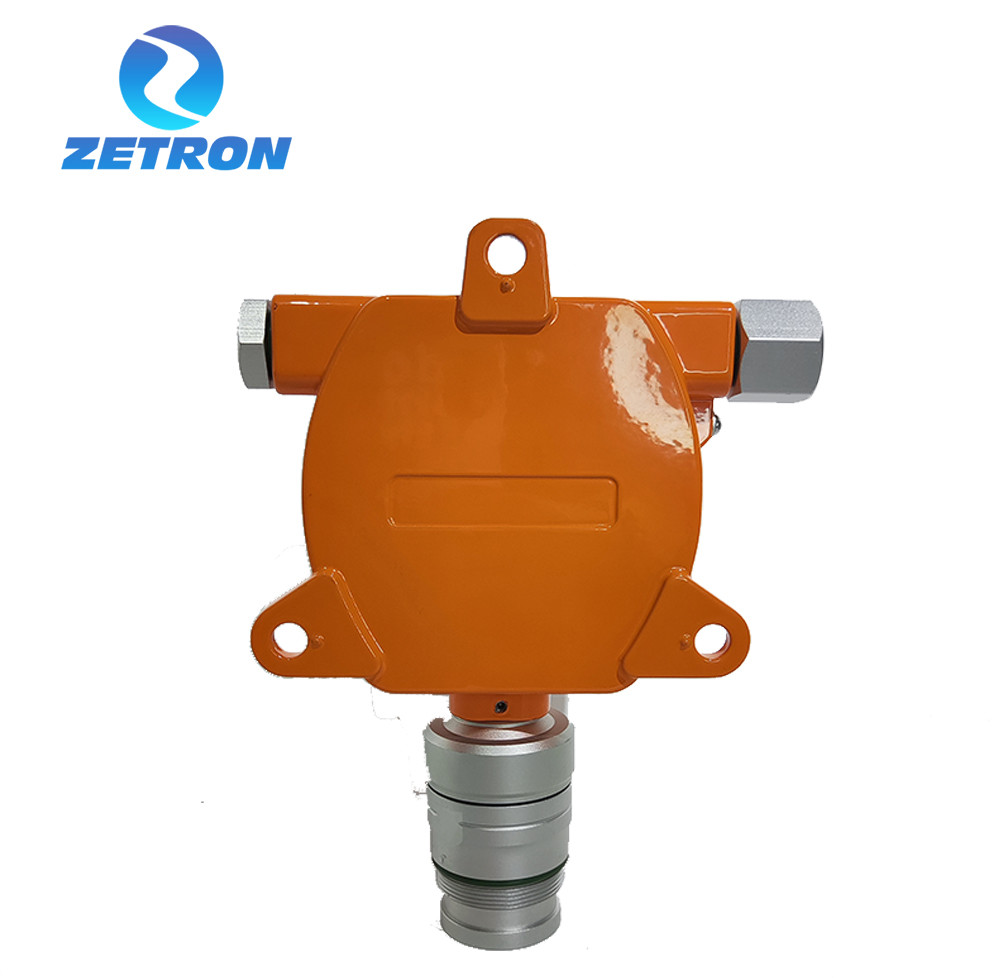

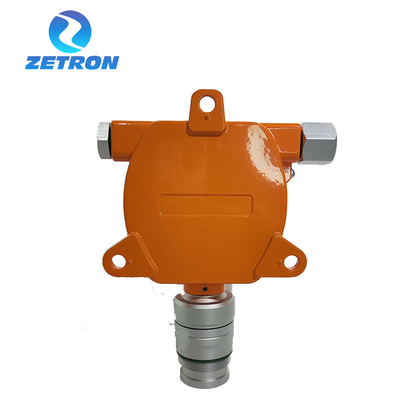

MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC600
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Model Number MIC 600
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Display 2.5-inch High-definition Color Screen
Certification CE Protect Level IP66
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

mic600 fixed gas detector

,

online voc fixed gas detector

,

pid sensor fixed gas detector

Leave a Message
Product Description

MIC-600 Fixed six-in-one gas detector

OVERVIEW


The MIC-600 series fixed three-in-one gas detector is used for 24-hour continuous online monitoring and temperature and humidity measurement of various gas concentrations in the field, displaying the concentration and outputting standard signals on-site, and remote data transmission.



SPECIFICATION



Gas
CH4 (Methane)
Range
0-50000PPM; 0-100%LEL ; 0-100%Vol.
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP66; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Optional items
Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with a computer for monitoring.
Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters



FEATURES


Gases to be detected
Arbitrary combination of multiple types of gases such as toxic gases, oxygen gas, carbon dioxide, TVOC, and so on.
Optional configuration: it is possible to detect any 1 ~ 6 gases simultaneously.


Rich human-machine interface

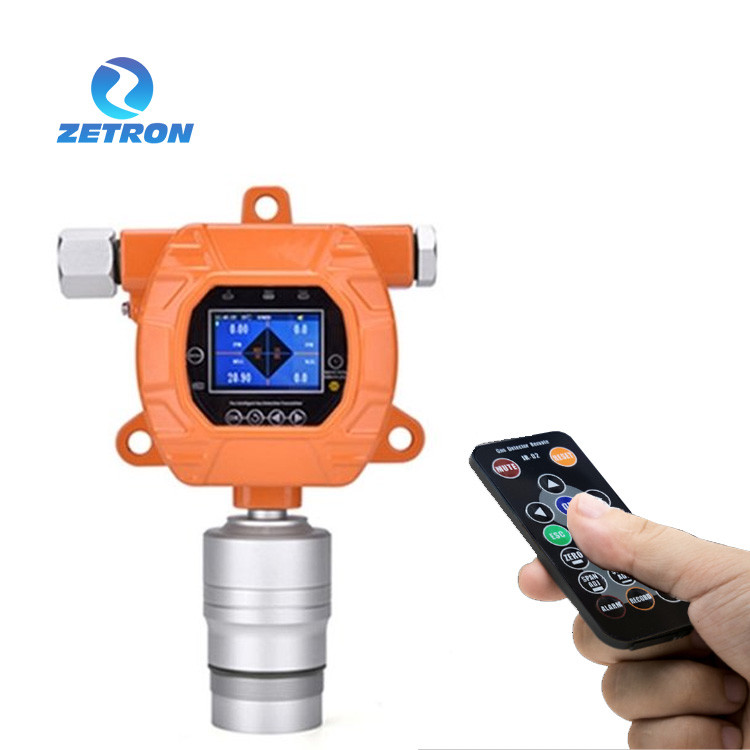

2.5-inch high-definition color screen displays information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on.

Wireless Transmission
The optional function is possible to transfer data wirelessly to the cell phone, remote monitoring center, monitoring computers, and other monitoring equipment, which will utilize the upper-level host to realize the functions of data analysis, storage, printing
or the like on the computer.

MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 0MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 1MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 2

MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 3

APPLICATION


All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Natural Gas Pipeline & Processing, Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Ice Skating & Hockey Arenas and so on.


MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 4
