Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One

  • Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One
  • Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One
  • Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One
  • Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS104K
Minimum Order Quantity 1 set
Price USD 145/set- 879/set
Packaging Details paper carton
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Gas Detector Gas H2S O2 CO Ex (optional)
Gas Unit Ppm LEL Sampling Method Diffusion Sampling
Alarm Type Light+Sound+Vibration Display 2.31 Inch Screen
Size 130*68*34mm Weight 200g
Highlight

toxic portable multi gas monitor

,

petroleum portable multi gas monitor

,

harmful portable multi gas detector
Leave a Message
Product Description

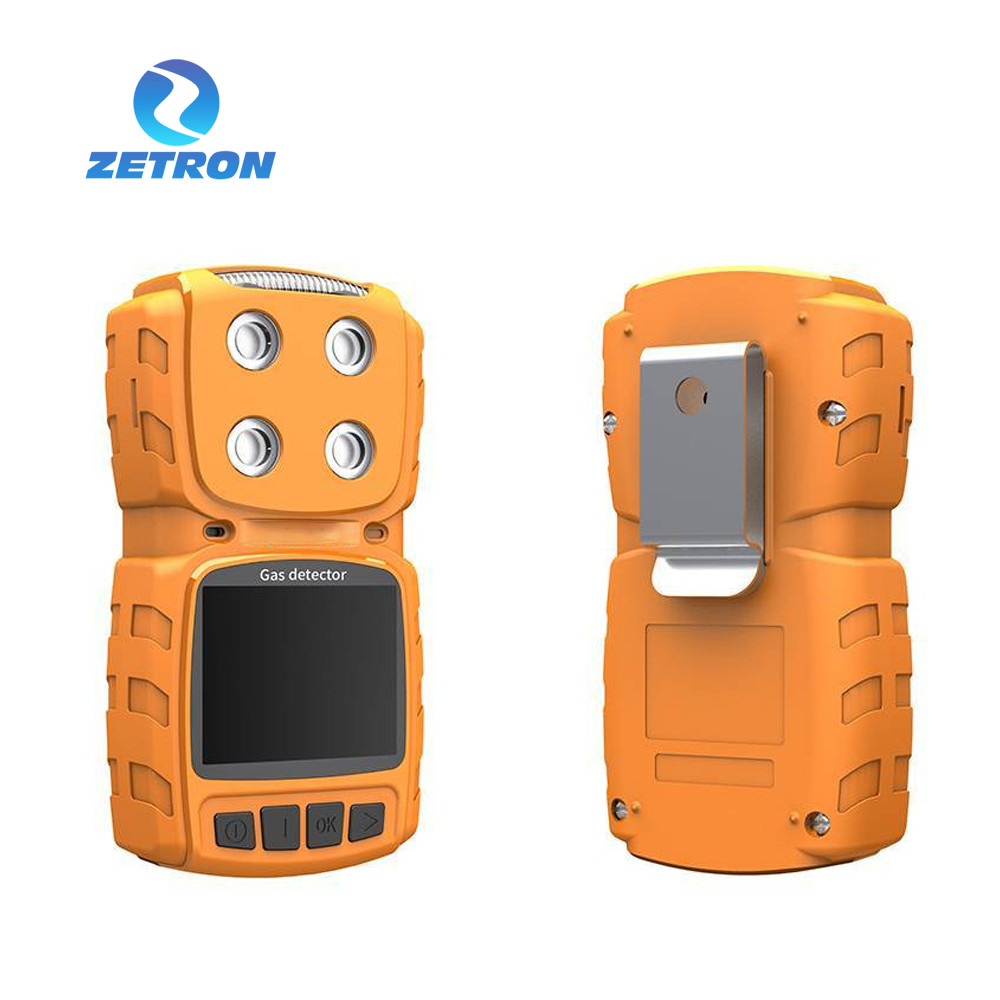

MS104K Portable Toxic and Harmful Gas Detector



OVERVIEW
It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely.
It can be used in rapid detection of a variety of gas concentration and measurement of environmental temperature and humidity, the alarm will emit sound & light vibration as alarm.



FEATURES



1. Multi-gas made simple, easy to wear, slim, and compact
It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely.
Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.

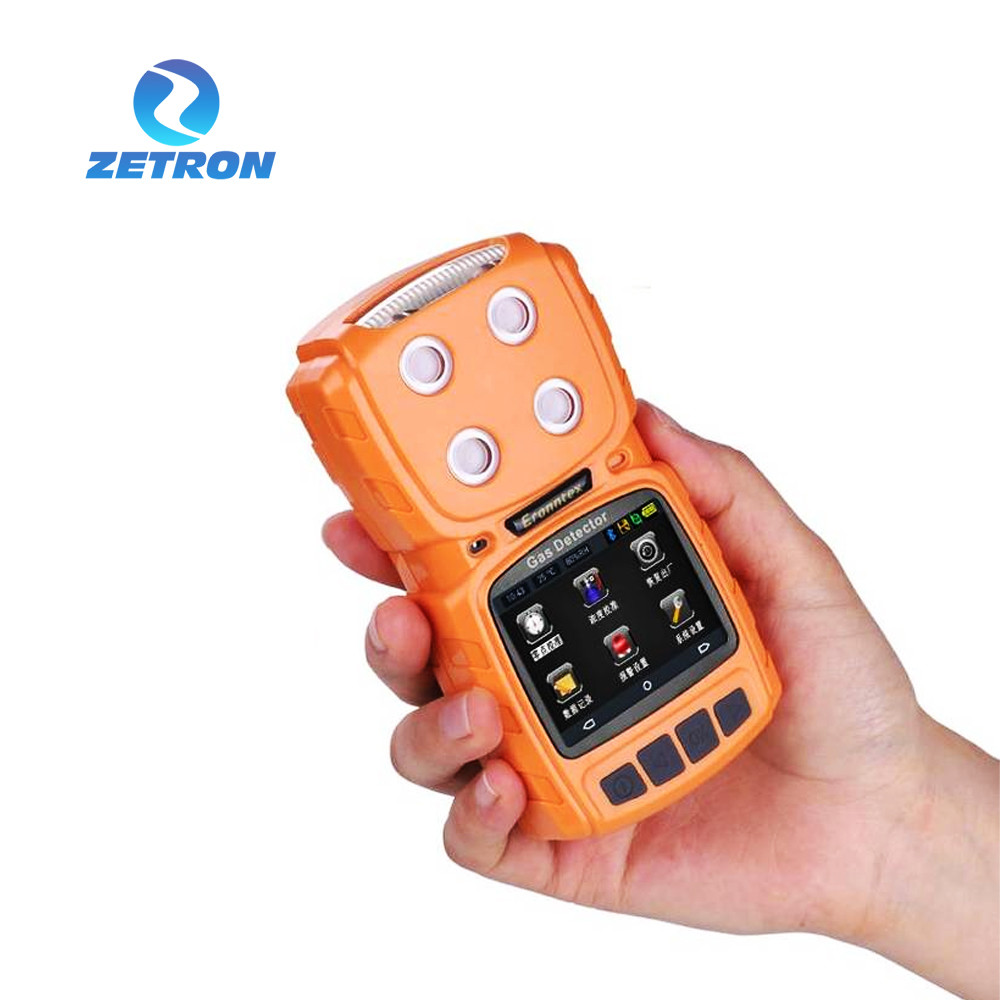

2. Compact design, easy to use
Handy and durable, the MS104 is intuitive to operate single-handedly using three function keys.
The easy-to-read color display clearly lays out all the information for you.

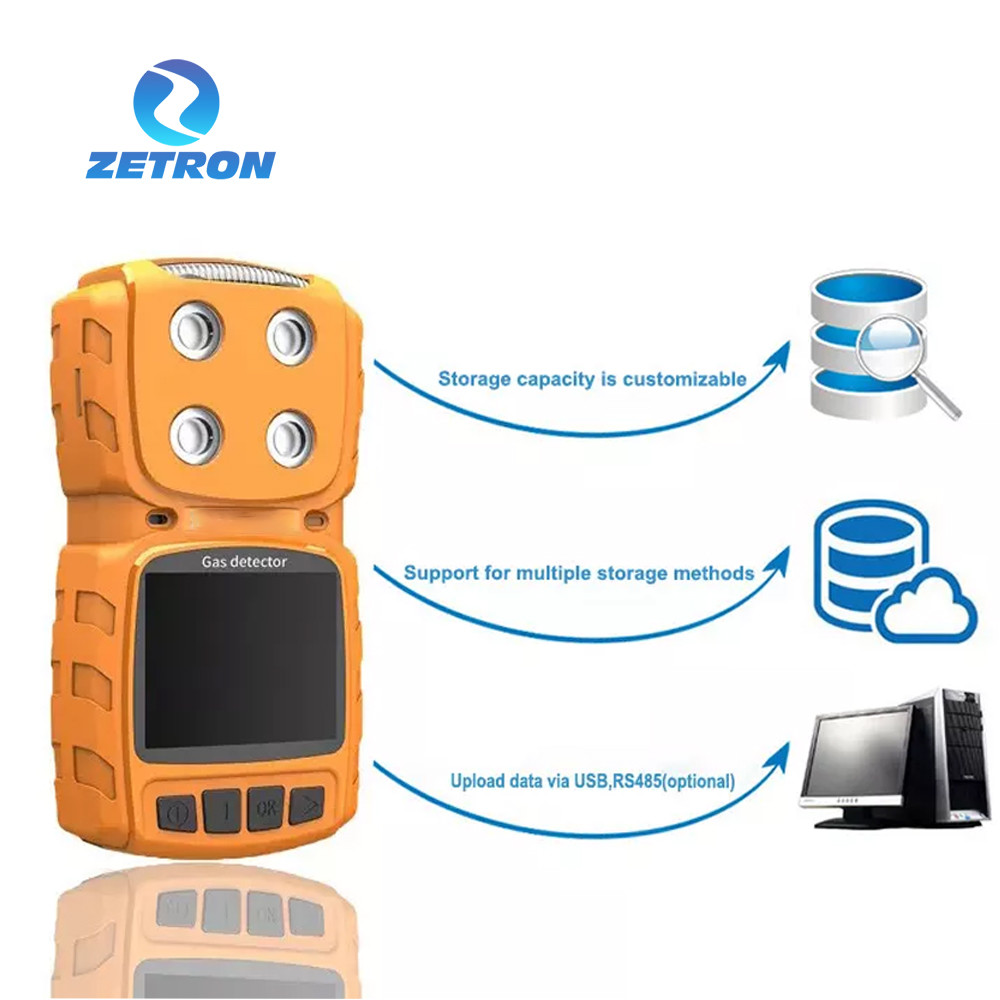

3. Large Data Storage Management, release and documentation in no time
Standard configuration is the data storage capacity for 100, 000 entries.
Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.

4. Clear signaling design
The signal system of the MS104K is based on a clear color code: sound & light alarm, vibration alarm, display screen visual alarm.
5. Inductive charging protects against wear
The MS104K features inductive charging.
This makes it easier to operate and increases the lifespan of the device.



SPECIFICATION



Gases to be detected
Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution
 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
Sensor service life
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error
≤±3% F.S (higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤30 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.7VDC, 3000mA high capacity rechargeable polymer battery
Display mode
2.31-inch high-definition color screen
Alarm mode
sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface
USB (charging and communication), optional: RS485 communication interface
Protection level
IP65
Explosion-proof mark
Exia II CT4 Ga
Exterior dimensions
130×68×34mm (L×W×H)
Weight
200g

Optional items
Temperature and humidity measurement function, external gas sampling pump, 1.2 m retractable sampling handle (1-10 meter hose, and
the standard length is 1 meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable)

Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 0Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 1Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 2

Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 3Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 4Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 5Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 6Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 7

Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 8





APPLICATION



The detector is widely used in petroleum, chemical industry, refining, gas, biochemical medicine, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.



Ms104k Toxic And Harmful Portable Multi Gas Monitor Four In One 9
