Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS600
Minimum Order Quantity 1 set
Price USD 446/set - 1298/set
Packaging Details 195*77*46mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 6 In 1 Gas Analyzer Type Portable Gas Detector
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM Protection Level IP67
Exterior Dimensions 180×78×33mm (L×W×H) Weight 350g
High Light

pm1 portable air quality detector

,

wireless portable air quality detector

,

pm10 industrial dust monitor

Leave a Message
Product Description

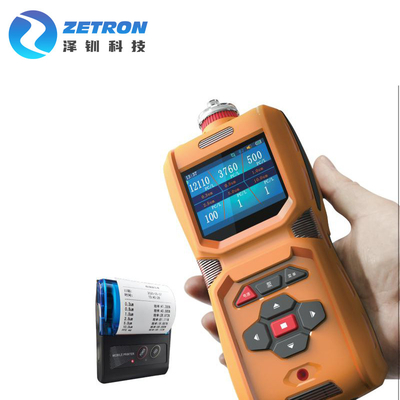

MS600 Six-In-One Portable Gas Detector



OVERVIEW



MS600 Series Portable Composite Gas Detector can be used in: mobile rapid and accurate detection of a variety of gas concentrations and measurement of environmental temperature and humidity.
Simultaneously detect 1 ~ 6 types of gases, and the units can be switched freely. The types for detection are more than 500 types.


 Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 0Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 1Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 2Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 1Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 4Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 5

Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 6Pm1 Pm10 Pm2.5 Wireless Portable Air Quality Detector Industrial Dust Monitor 7





FEATURES & BENEFITS



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle

· 0.4-meter stainless steel sampling handle (with a dust filter, not retractable)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system

· External remote sampling pump
· USB disk storage
· External mini wireless infrared printer
· Wireless data communications: RS232, infrared communication, automatic recognition



SPECIFICATION



Gases to be detected
Arbitrary combination of 1 ~ 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.Optional configuration: temperature and humidity measurements.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l).
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity,
PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand.
Allowable error
≤±1% F.S (other precision levels can be customized)
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Display mode
2.5-inch high-definition color screen
Detection mode
Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min,
three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Protection level
IP67
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
Optional items
1)Temperature and humidity measurement function
2)1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1meter)
3) 0.4 meter stainless steel sampling handle (with dust filter, not retractable), 4) high temperature sampling and cooling filter handle
5) high temperature humidity pretreatment system
6) multiple humidity dust filter
7) hanging rope, CD-ROM (upper level computer communication software)
8) SD card storage, wireless data communications, external mini wireless
infrared printer



APPLICATION


All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
