Ptm600-S Environmental Alarm Wireless Interconnected Multifunctional Gas Monitoring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | PTM600-S | Product Name | Gas Environmental Monitoring Alarm |
|---|---|---|---|
| Test Item | Simultaneous Detection Of 4 Gases, Supporting Up To 6 Gases | Work Modes | Diffusion And Pumping |
| Screen | 3.5-inch LCD | Weight | 300g |
| Highlight | wireless interconnected environmental alarm,multifunctional environmental alarm,gas monitoring environmental alarm systems |
||
Product Description

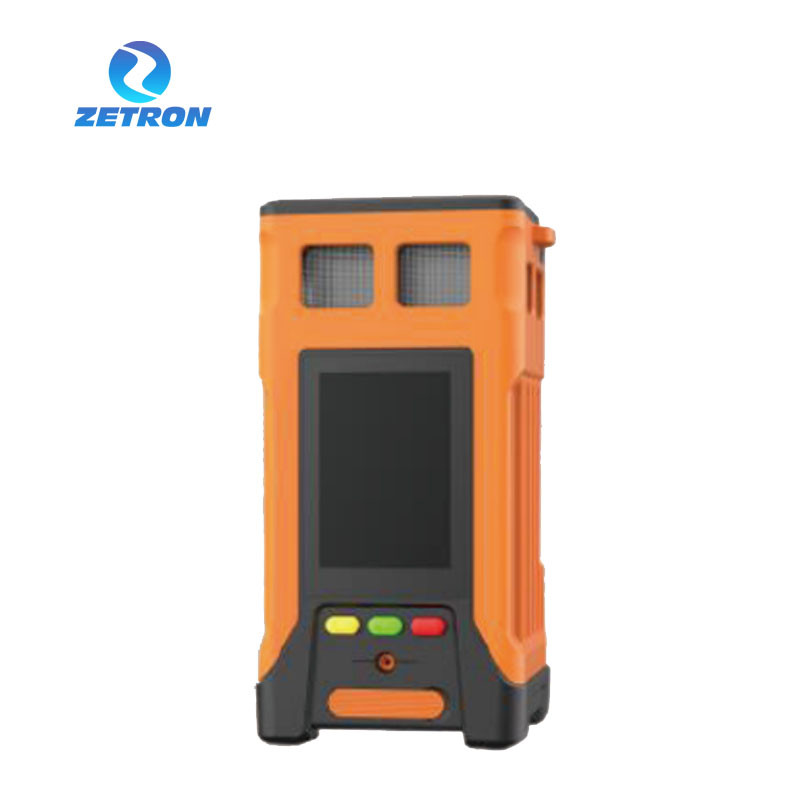

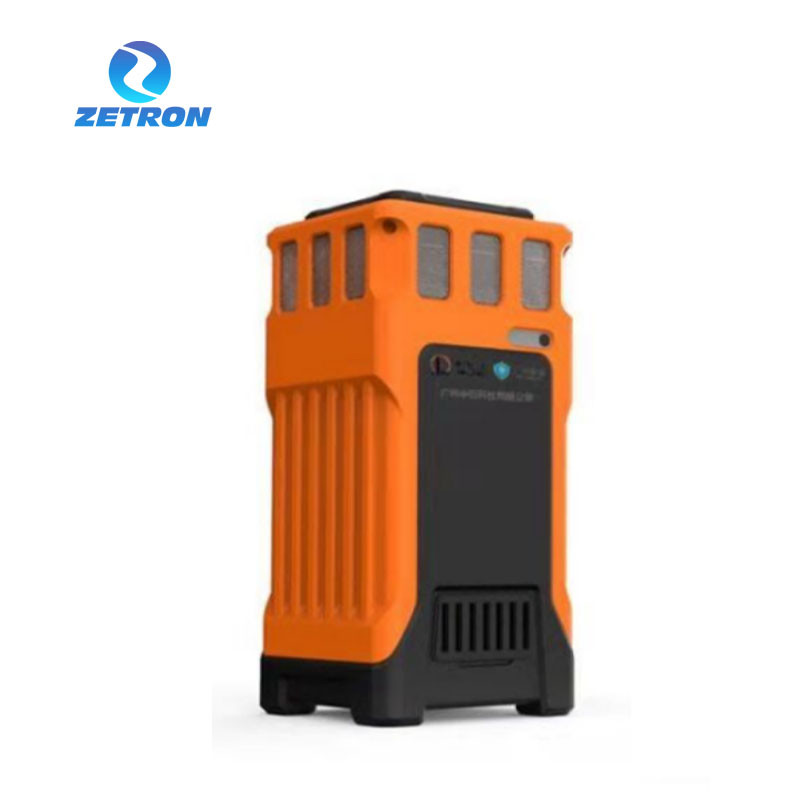

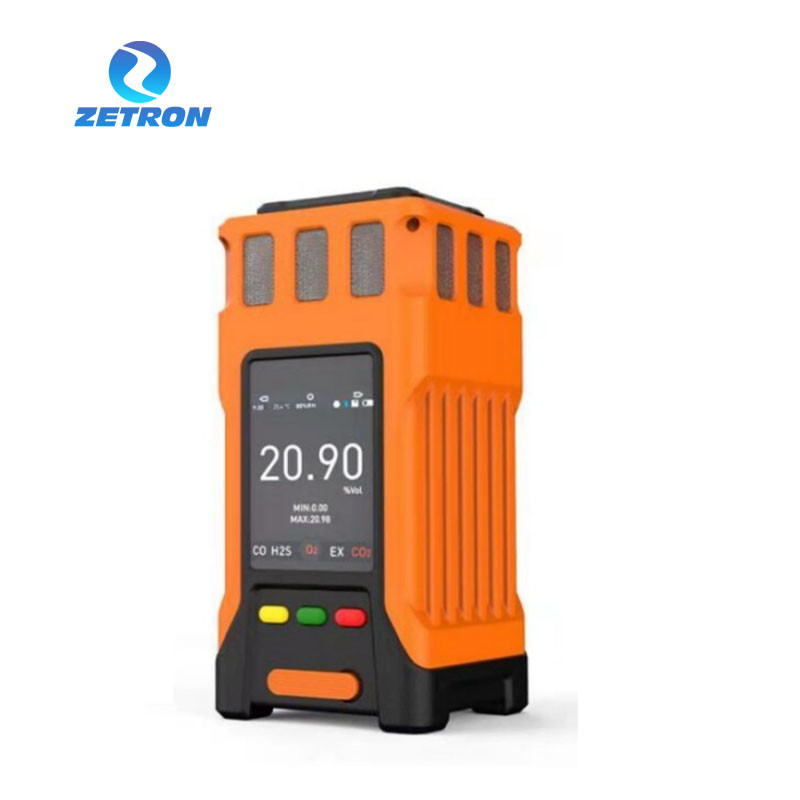

PTM600-S Intelligent Gas Warning Instrument
OVERVIEW
Wireless interconnected multifunctional gas environmental monitoring alarms enable individual gas detection and area monitoring, keeping workers aware of their surroundings by sharing gas readings and alarm information between gas monitors. When a gas hazard, worker fall, or panic situation occurs causing the instrument to sound an alarm, all companions in the wireless workgroup area will immediately receive notification of gas hazards and personnel injuries. Supervisors can view video images through the app or operational control platform, real-time maps to identify worker and instrument locations, and the system provides real-time text and alarm message notifications when an event occurs to facilitate timely viewing and response to events and, if necessary, remote notification voice announcements to guide field personnel.
FEATURES
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper-level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
PARAMETERS
|
Detecting gas
|
Hydrogen sulfide (H2S), carbon monoxide (CO), combustible (EX), oxygen (O2)
|
|
Detection principle
|
Hydrogen sulfide, carbon monoxide, oxygen: imported electrochemical sensors, Combustible: import catalytic combustion
|
|
Detection range
|
Hydrogen sulfide: 0 ~ 100PPM
|
|
Carbon monoxide: 0~1000PPM
|
|
|
Oxygen: 0-25%VOL
|
|
|
Combustible gas: 0-100%LEL
|
|
|
Resolution
|
H2S: 0.1PPM
|
|
CO:1PPM
|
|
|
O2:0.01%VOL
|
|
|
EX:0.1%LEL
|
|
|
Signal output
|
Support 485, 4-20mA, LORA wireless transmission. This project mainly focuses on 4G network transmission (other wireless
transmission functions can be customized, such as: zigbee, 433, WIFI, etc.) |
|
Response time
|
T90≤20seconds
|
|
Working conditions
|
Temperature: -20℃-50℃; Humidity: 0-90%RH (no condensation)
|
|
Explosion-proof grade
|
Exd IICT6
|
|
Working voltage
|
12～30V (DC-DC, the standard power supply of a single device is 24V, 1A or DC switching power supply more than 1A)
|
|
Protection level
|
IP66 splash and rainproof
|
|
Video monitoring
|
2.2 megapixel, support infrared night vision, customizable gimbal, zoom camera
|
|
Location information
|
Support GPS/BeiDou positioning
|
APPLICATION
All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, warehousing, smoke gas analysis, air governance, and so on.
