Mic300 Fixed Gas Leak Detector With Multi Alarm

Place of Origin China
Brand Name zetron
Certification CE, Atex, RohS, ISO
Model Number MIC-300
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type MIC-300 Detection Range 0~1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional
Explosive Grade Exd II CT6/DIP A20 TA, T6 Protection Level IP66
Material Aluminum Alloy, Surface Anticorrosive Paint Sprayed Warranty 1 Year
High Light

mic300 fixed gas leak detector

,

multi alarm fixed gas leak detector

,

mic 300 fixed combustible gas detector

Leave a Message
Product Description

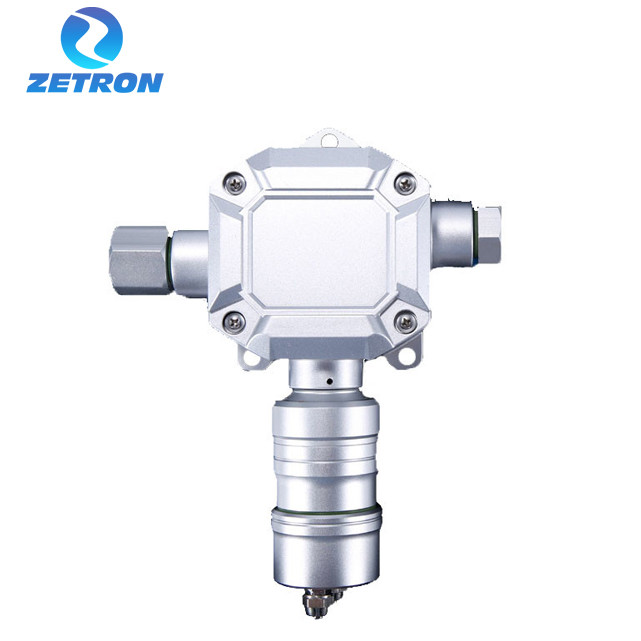

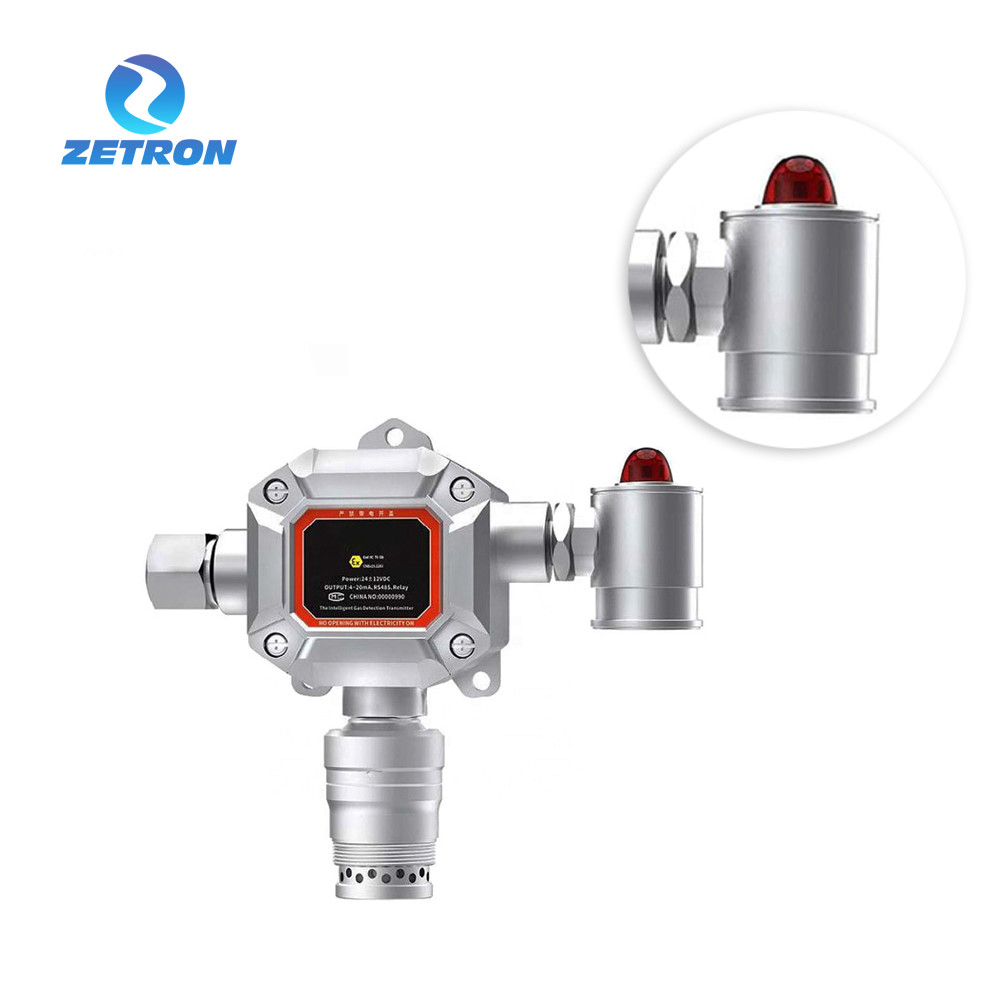

MIC300 Fixed Gas Detector

OVERVIEW



MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.

SPECIFICATION



Type
Fixed Gas Detector
Detection range
0~ 10ppm
0~ 20ppm
0~50ppm
0~100ppm
Other ranges can be customized
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
Other ranges can be customized
Sensor service life
Electrochemical principle: 2 ~ 3 years;
Infrared principle: 5 ~ 10 years;
Thermal conductivity: 5 years
Allowable error
≤±3% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Power supply reference
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
Protection level
IP65
Exterior dimensions
233×205×65mm (L×H×W)
Weight
1.0 Kg
Standard accessories
Manual, qualification certificate, warranty card, outer packaging box



Mic300 Fixed Gas Leak Detector With Multi Alarm 0
Mic300 Fixed Gas Leak Detector With Multi Alarm 1
Mic300 Fixed Gas Leak Detector With Multi Alarm 2
APPLICATION



All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

Mic300 Fixed Gas Leak Detector With Multi Alarm 3
