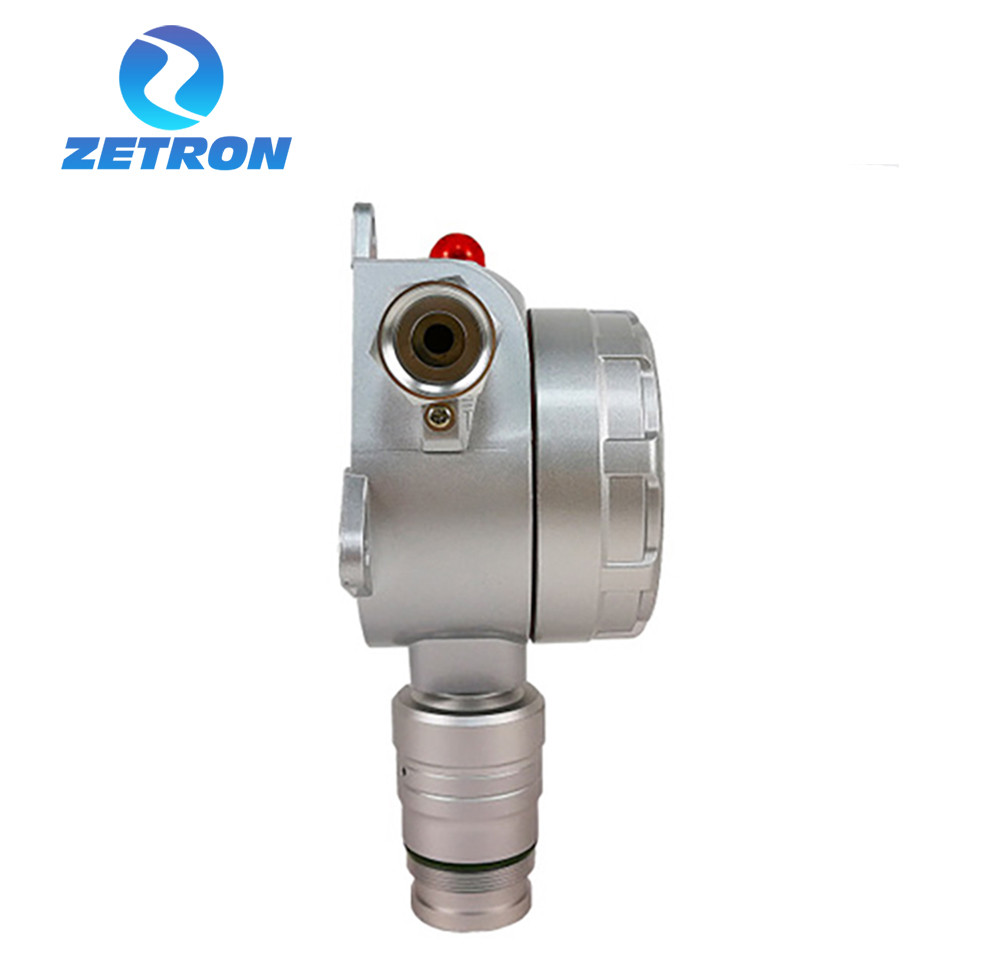

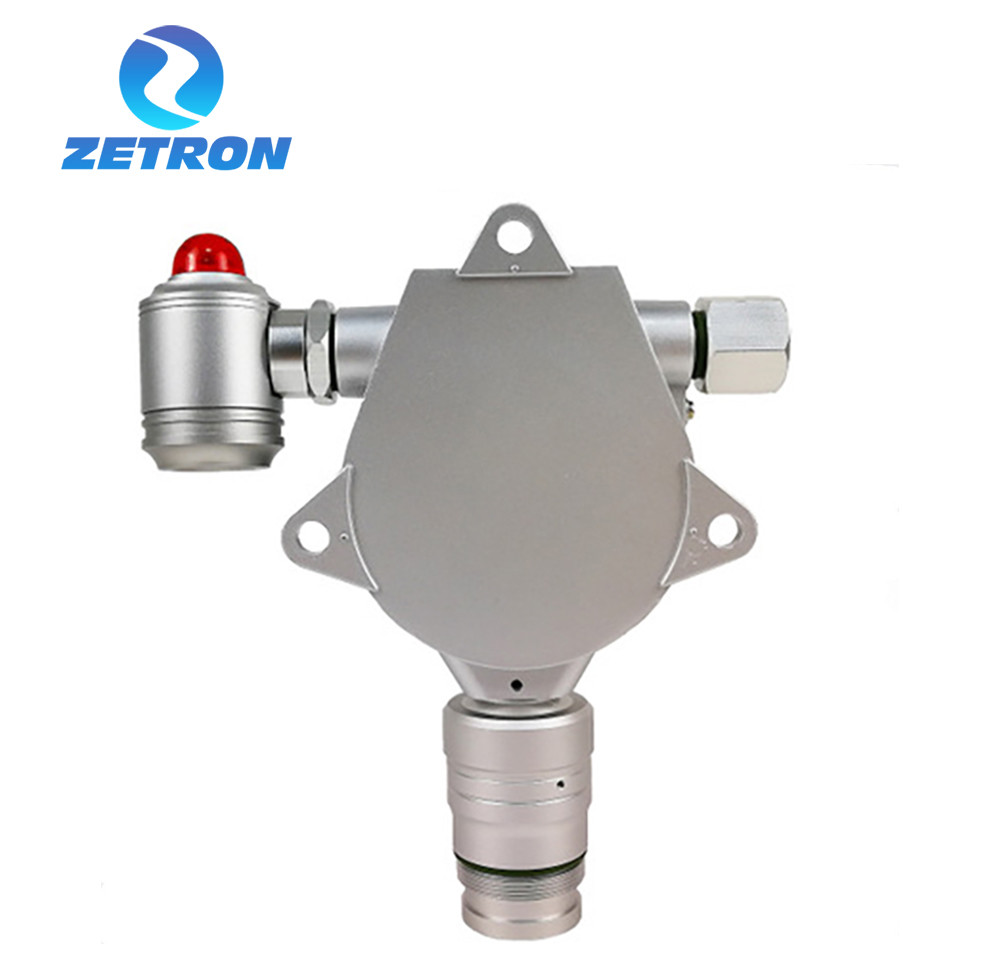

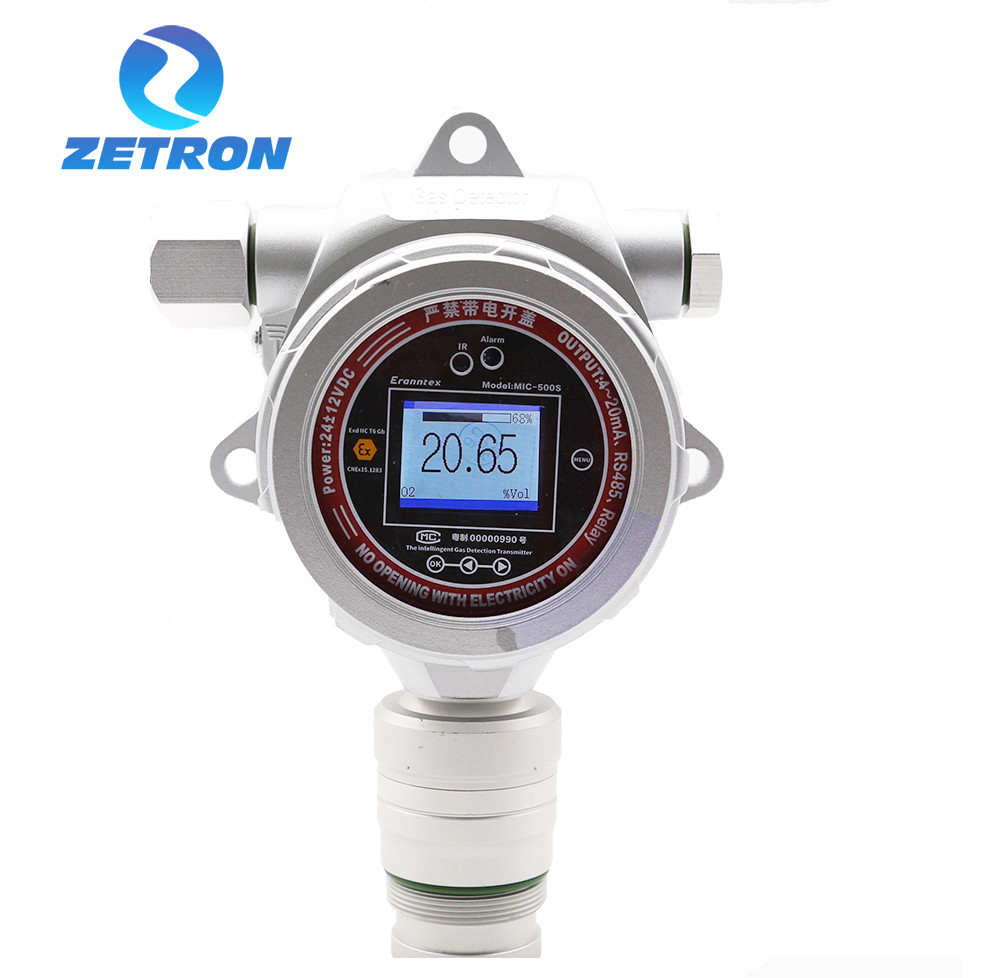

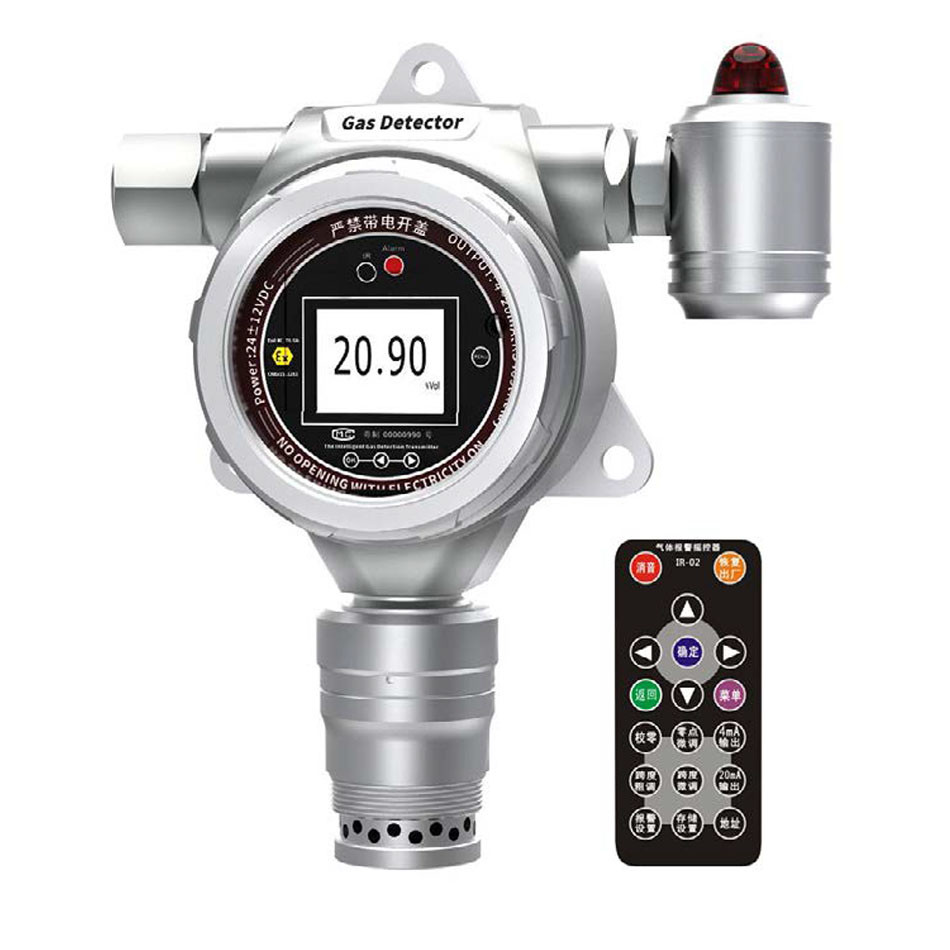

Mic 500 Fixed Gas Detector Industrial Explosion Proof Oxygen Content Detection

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Model Number MIC500
Display Method 1.7-inch High-definition Color Screen Protection Level IP65
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

fixed gas detector mic 500

,

explosion proof fixed gas detector

,

oxygen content gas detector fixed

Leave a Message
Product Description

MIC500S Fixed Toxic And Harmful Gas Detector



OVERVIEW



MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
The gas sensors of internationally known brands are adopted, and the main detection principles include: the gas sensors under the principle of electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoionization, and so on.

Mic 500 Fixed Gas Detector Industrial Explosion Proof Oxygen Content Detection 0Mic 500 Fixed Gas Detector Industrial Explosion Proof Oxygen Content Detection 1Mic 500 Fixed Gas Detector Industrial Explosion Proof Oxygen Content Detection 2Mic 500 Fixed Gas Detector Industrial Explosion Proof Oxygen Content Detection 3


SPECIFICATION



Gases to be detected Ozone/O3 Gas Detector
Detection range

0--1000 ppm

0-- 5000 ppm

0-- 50000ppm

0-- 200mg/L

Other ranges can be customized

Resolution

0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%Vol

0.001% Vol

Other ranges can be customized

Allowable error ≤±3% F.S (other or higher precision levels can be customized)
Display method 1.7-inch high-definition color screen
Working voltage

12 ~ 30VDC direct current

the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A

Protection level IP65
Explosion-proof type Explosion suppression type
Explosion-proof mark ExdⅡCT6, certificate number: CNEx15.1283



FEATURES



■Integrated sound & light alarming device, split-type sound & light alarming device,
■Wireless transmission
■ Pretreatment system
①Room temperature and high humidity pretreatment system
②High temperature and high humidity pretreatment system
■Accessory for connection with a computer for monitoring
①Free upper-level host software, RS485 / RS232 converter
②For laptops without RS232 interface, USB / RS232 converting and connecting cable is needed,



APPLICATION

All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, combustion gas distribution, smoke gas analysis, air governance, and so on.

Mic 500 Fixed Gas Detector Industrial Explosion Proof Oxygen Content Detection 4
