Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Brand Name Zetron
Model Number MIC500 Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l
Installation Method Pipeline Type Wall Mounting Type Temperature -40 ℃ ~ + 70 ℃
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

mic 500 fixed detector

,

mic 500 fixed combustible gas detector

,

alarm fixed combustible gas detector

Leave a Message
Product Description

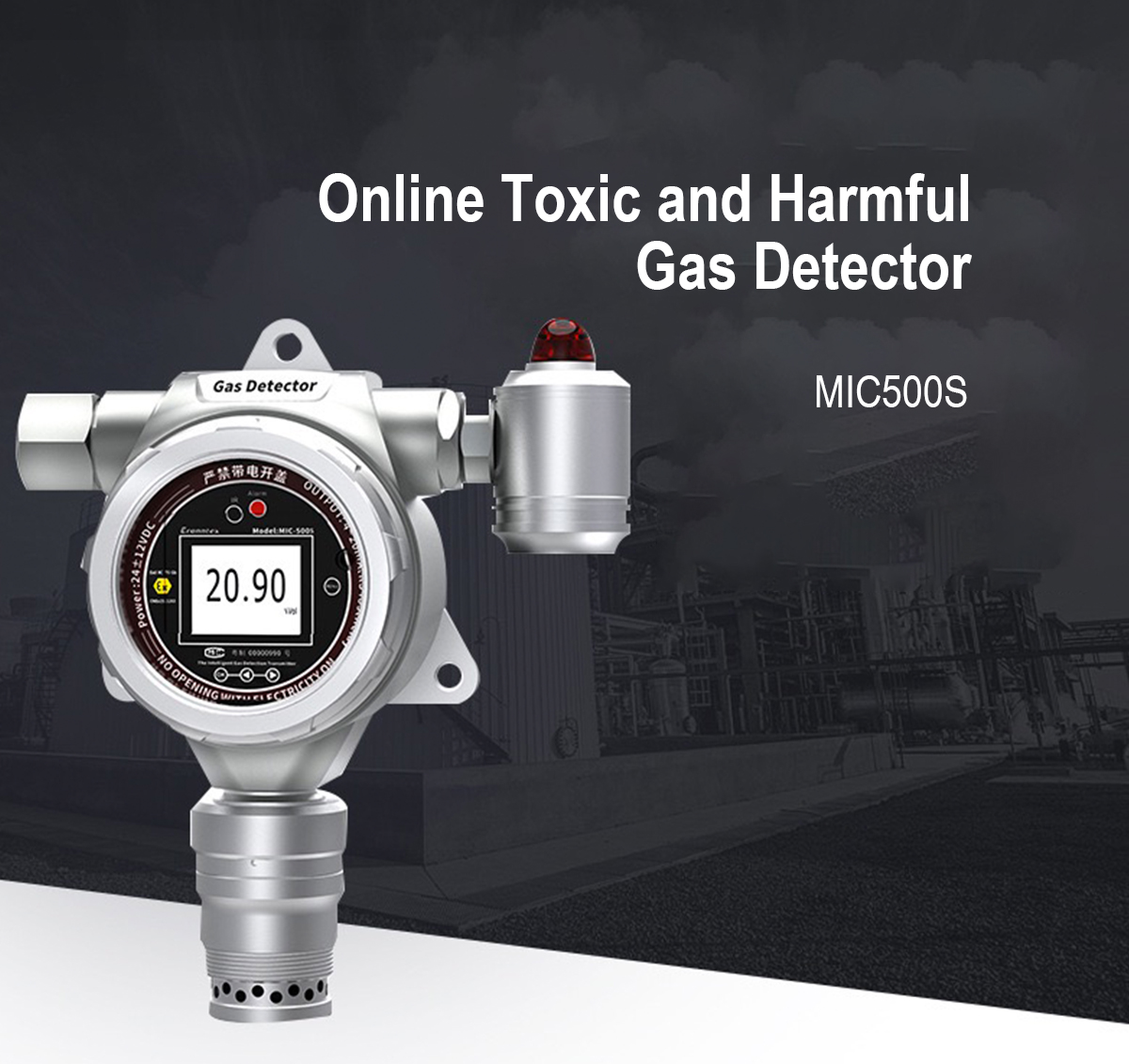

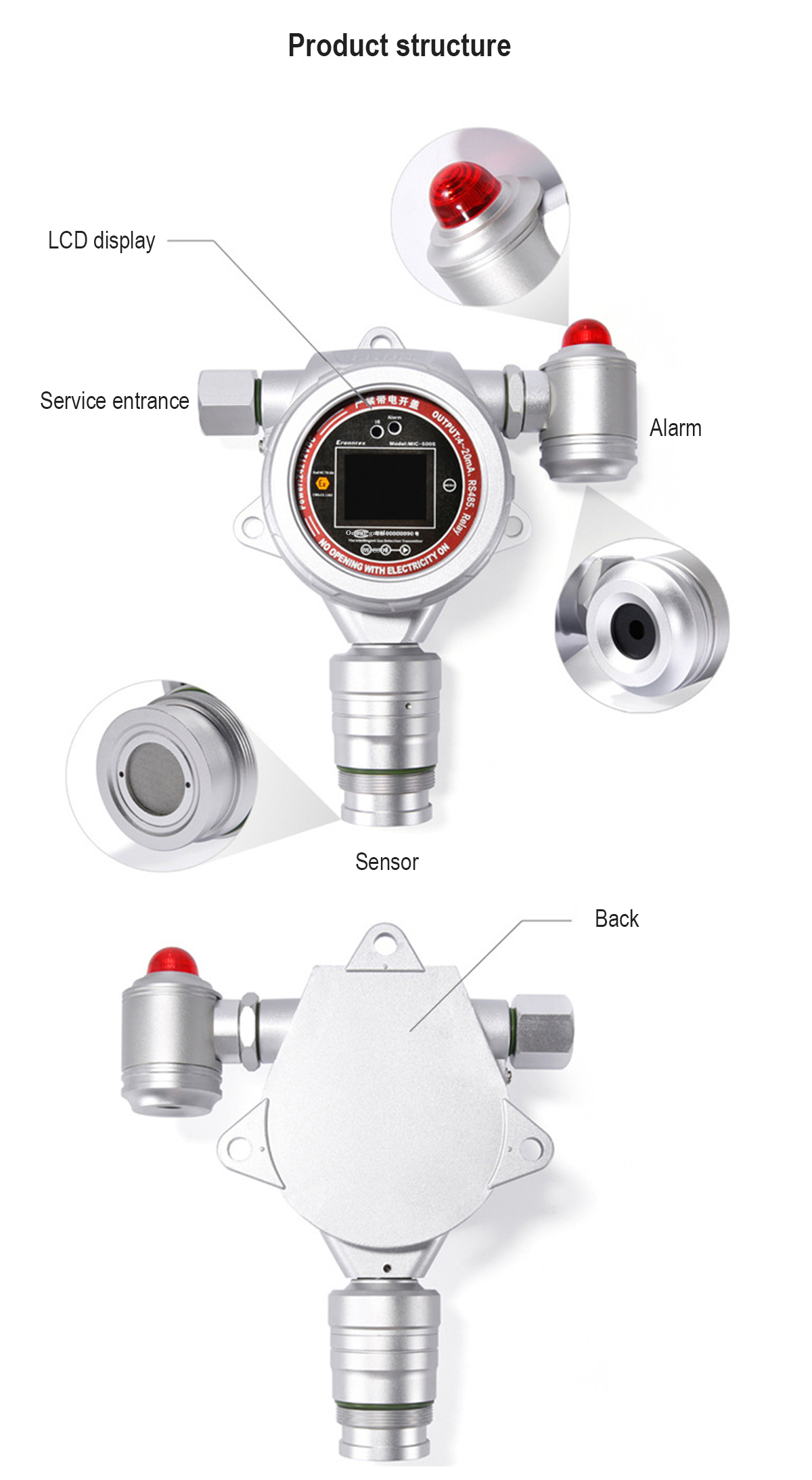

MIC500 Fixed Combustible Gas Detector



OVERVIEW



MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
The types for detection are more than 500 types. A strong, durable, and explosion-proof shell is suitable for use in a variety of hazardous places and harsh industrial environments are widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.

SPECIFICATION
Gas
Combustible gas ( EX )
Range
0-100%LEL
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline Type
Wall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals

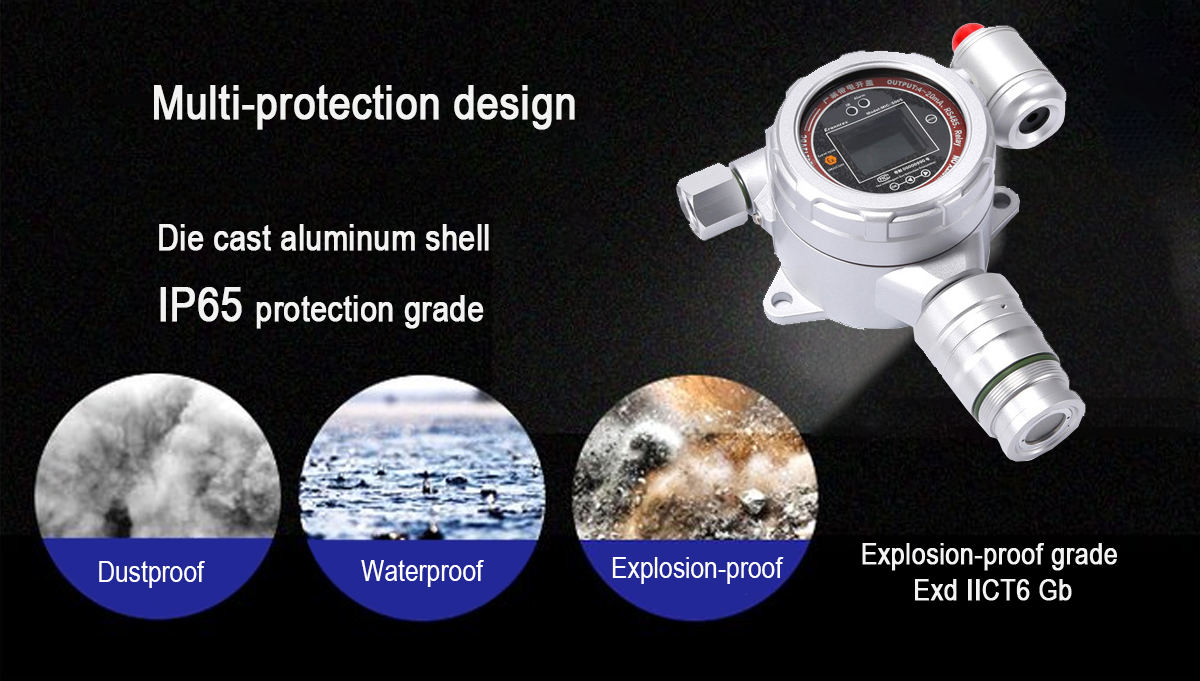

IP65; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method

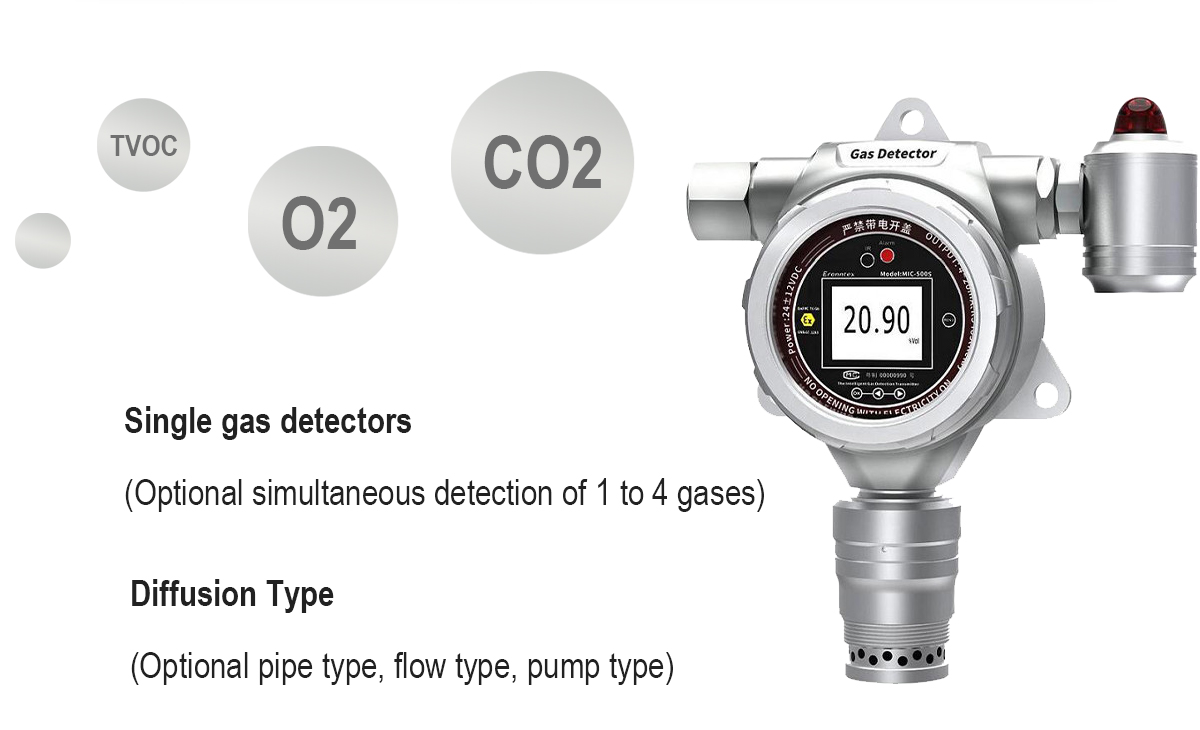

Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items

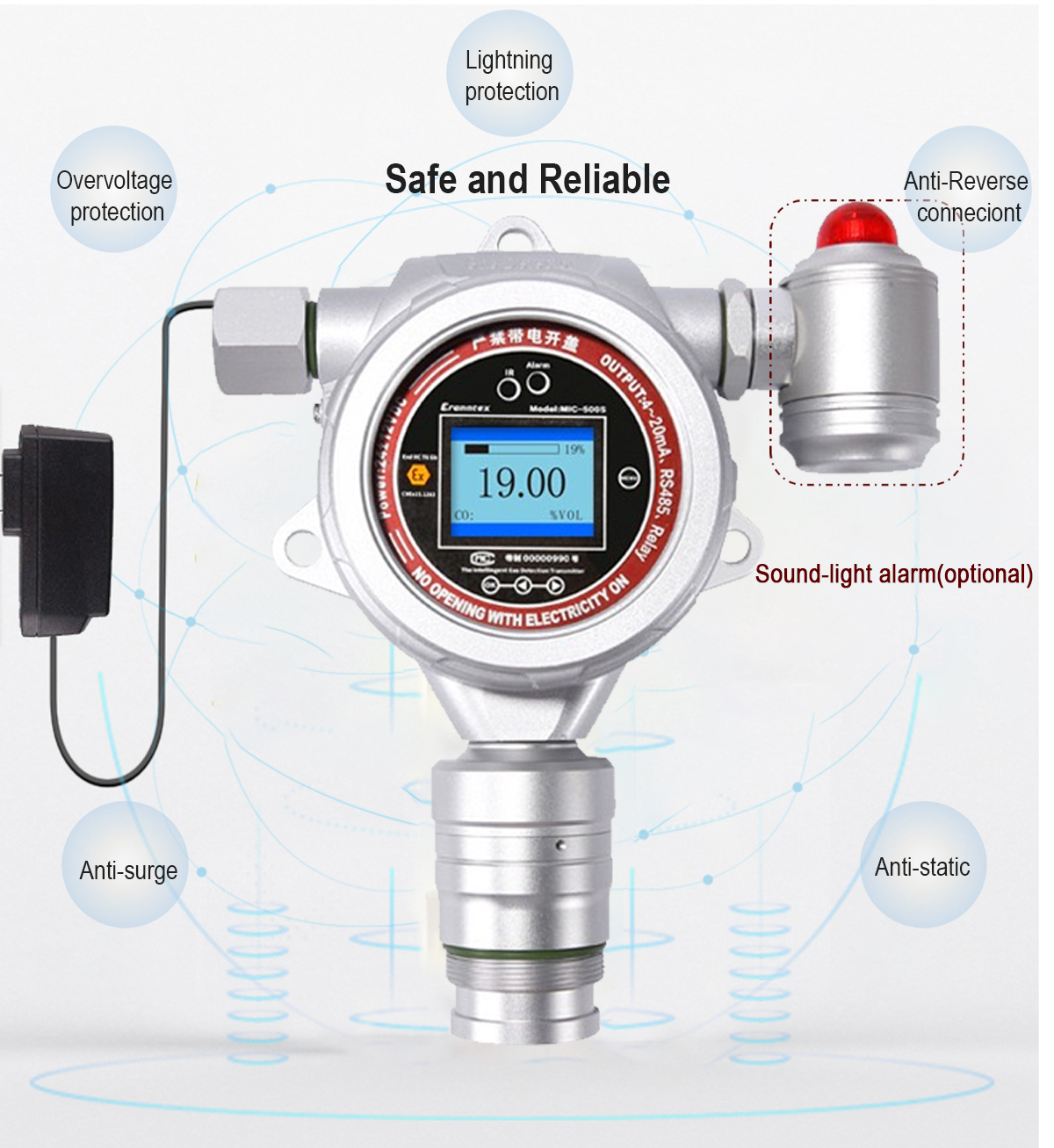

Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;

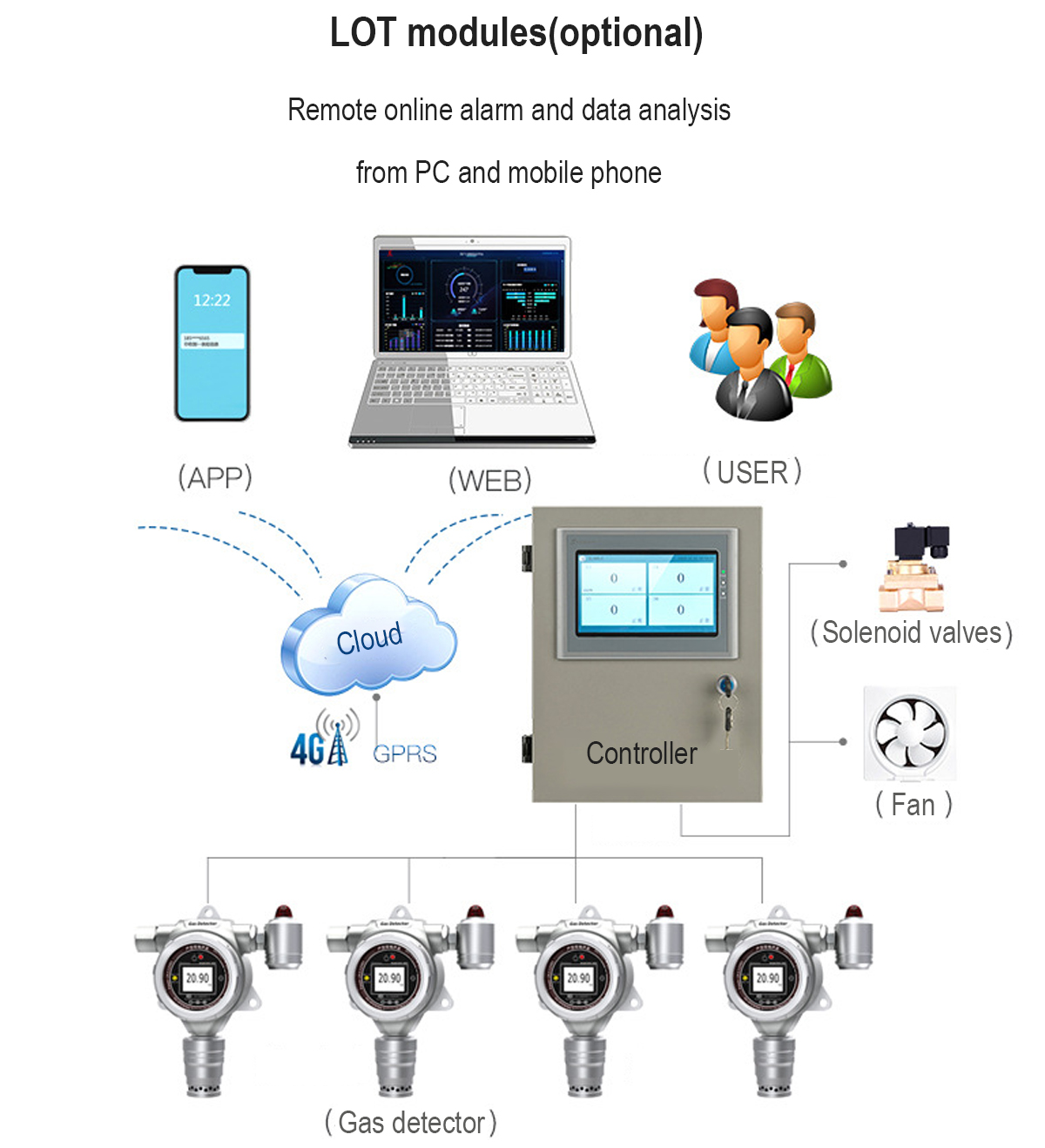

Accessory for connection with a computer for monitoring.

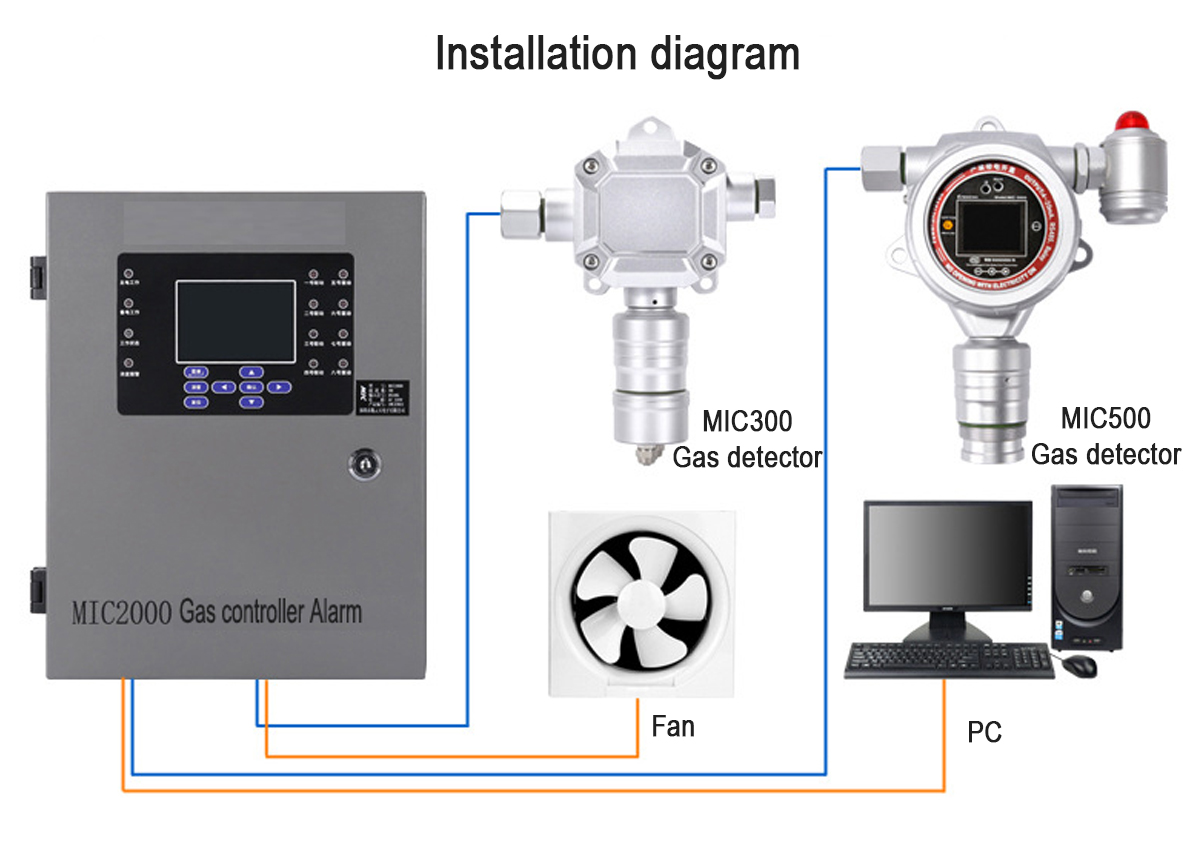

Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 0
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 1
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 2
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 3
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 4
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 5
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 6
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 7
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 8
Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 9

Alarm Fixed Combustible Gas Detector Mic500 Paint Room Hydrogen Winery Warehouse 10

APPLICATION



All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
