Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Brand Name Zetron
Model Number MIC500 Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l
Installation Method Pipeline Type Wall Mounting Type Temperature -40 ℃ ~ + 70 ℃
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

mic500 fixed gas leak detector

,

ch2o fixed gas leak detector

,

formaldehyde fixed gas leak detector

Leave a Message
Product Description

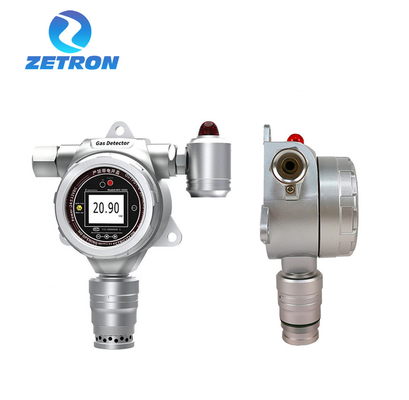

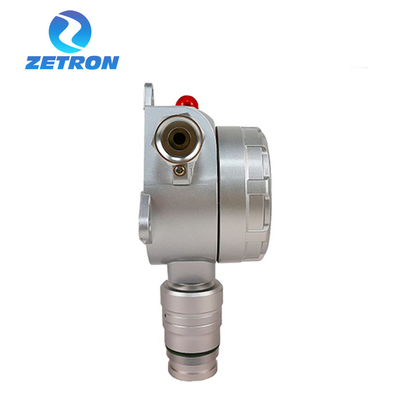

MIC500 Fixed Gas Leak Detector



OVERVIEW



Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
Mis-operation recognition function: automatic recognition and prevention of the concentration calibration misoperation, which is possible to avoid the poor performance that may be caused by human factors.
Zero-point automatic tracking; long-term use will not be affected by the zero drift.
Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
Chinese or English interfaces can be selected.
Broad operating temperatures: -40~+70℃, and temperature compensation is supported.

SPECIFICATION
Gas
Formaldehyde ( CH2O )
Range
0-10ppm
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline Type
Wall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP65; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters

Gases to be detected
Range
Accurancy
Resolution
Response time T90
Formaldehyde ( CH2O )
0-10ppm
<±2%(F.S)
0.001ppm
≤30 seconds
Hydrogen sulfide ( H2S )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Sulfur dioxide ( SO2 )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Nitric oxide ( NO )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Oxygen gas ( O2 )
0-30%Vol
<±2%(F.S)
0.01%Vol
≤10 seconds
Hydrogen gas ( H2 )
0-40000ppm
<±2%(F.S)
1ppm
≤30 seconds
Helium gas ( He )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds
Argon gas ( Ar )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds
Helium gas ( He )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds

Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 0
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 1
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 2
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 3
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 4
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 5
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 6
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 7
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 8
Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 9

Online Ch2o Formaldehyde Fixed Gas Leak Detector Mic500 For Decoration Detection 10

APPLICATION



All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
