Product Details
Product Name Fixed Gas Detector Model Number MIC600
Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l Material Aluminium
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

mic 600 fixed gas detector

,

mic 600 fixed detector

,

lcd fixed gas detector

Leave a Message
Product Description

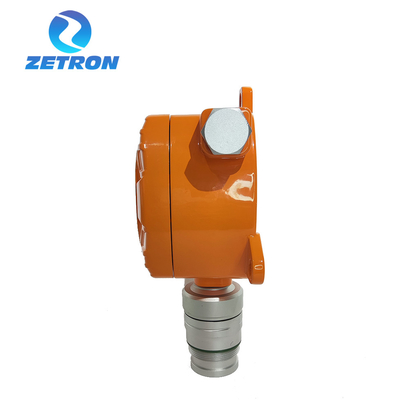

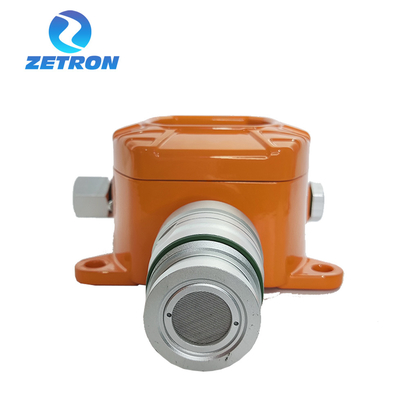

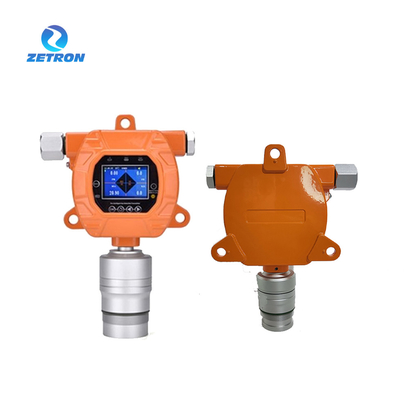

MIC600 Fixed Multi-Gas Detector



OVERVIEW



Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is an optional configuration,
real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is
supported to use the local host to view, and delete data, and upload the data via RS485 interface to the computer for data
analysis or printing.
The optional high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at a temperature of1300 ℃. The detection of the gases at other temperatures can be customized. Simultaneously display the concentrations of multiple types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve.
2.5-inch high-definition color screen, display information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.



SPECIFICATION



Gas
CO H2S O2 CH4 SO2 EX
Range
0-100ppm
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline TypeWall Mounting Type
Display
2.5-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP66; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Optional items
Alarms;Wireless Transmission;Pretreatment System; SD Card;Temperature and Humidity Measurement;Accessory for connection with
computer for monitoring.
Installation Type Accessories(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size,
such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters



Gases to be detected
Range
Accurancy
Resolution
Response time T90
Ozone ( O3 )
0-5ppm
<±2%(F.S)
0.001ppm
≤20 seconds
Hydrogen sulfide ( H2S )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Sulfur dioxide ( SO2 )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Chlorine gas ( CL2 )
0-10ppm
<±2%(F.S)
0.001ppm
≤30 seconds
Ammonia gas ( NH3 )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Helium gas ( He )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds
Argon gas ( Ar )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds
Tetrahydrothiophene ( THT )
0-100mg/m3
<±2%(F.S)
0.01 mg/ m3
≤60 seconds
Bromine gas ( Br2 )
0-10ppm
<±2%(F.S)
0.001ppm
≤30 seconds
Ethyne ( C2 H2 )
0-100%LEL
<±2%(F.S)
0.1%LEL
≤30 seconds
Note: Not all gases and range are listed, if you need more information, please contact us.



Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 0
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 1
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 2
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 3
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 4
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 5
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 6
Lcd Fixed Gas Detector Mic600 Monitor Pump Control Panel Wireless 4g Connection 7

MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 3

APPLICATION



All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline,  Waste Water Treatment Plants, Acetylene Gas Bottlers & Users, Ice Skating & Hockey Arenas and so on.
