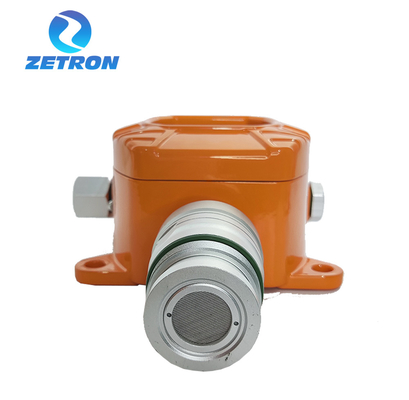

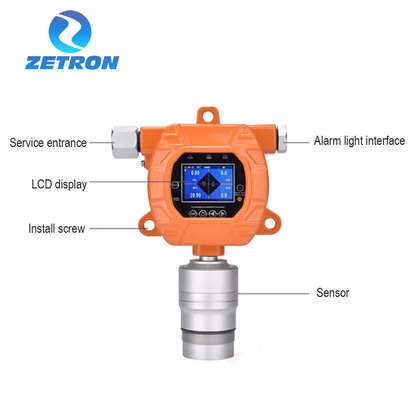

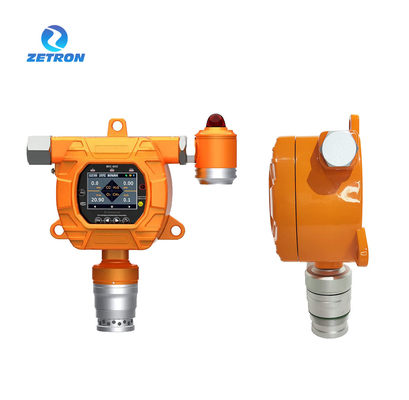

MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC600
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Model Number MIC600
Screen Size 2.5-inch Material Aluminium
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

mic600 fixed gas detection

,

mic600 fixed multi gas detector

,

color display fixed multi gas detector

Leave a Message
Product Description

MIC600 Fixed 6 In 1 Gas Detector



OVERVIEW

The optional high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at the temperature of 1300℃. The detection of the gases at other temperatures can be customized. Simultaneously display the concentrations of multiple types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve.
2.5-inch high-definition color screen, display information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high-definition simulation graphics to display the function name of each menu.



SPECIFICATION



Gas
Ozone ( O3 )
Range
0-100ppm
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline TypeWall Mounting Type
Display
2.5-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP66; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box

Gases to be detected
Range
Accurancy
Resolution
Response time T90
Ozone ( O3 )
0-5ppm
<±2%(F.S)
0.001ppm
≤20 seconds
Hydrogen sulfide ( H2S )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Sulfur dioxide ( SO2 )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Chlorine gas ( CL2 )
0-10ppm
<±2%(F.S)
0.001ppm
≤30 seconds
Ammonia gas ( NH3 )
0-100ppm
<±2%(F.S)
0.01ppm
≤30 seconds
Helium gas ( He )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds
Argon gas ( Ar )
0-100%Vol
<±2%(F.S)
0.01%Vol
≤20 seconds
Tetrahydrothiophene ( THT )
0-100mg/m3
<±2%(F.S)
0.01 mg/ m3
≤60 seconds
Bromine gas ( Br2 )
0-10ppm
<±2%(F.S)
0.001ppm
≤30 seconds
Ethyne ( C2 H2 )
0-100%LEL
<±2%(F.S)
0.1%LEL
≤30 seconds
Note: Not all gases and range are listed, if you need more information, please contact us.



MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 0
MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 1
MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 2
MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 3
MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 4
MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 5
MIC600 6 In 1 Co H2s Fixed Multi Gas Detector Color Display Atex Certified 6
APPLICATION



All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline,  Waste Water Treatment Plants, Acetylene Gas Bottlers & Users and so on.
