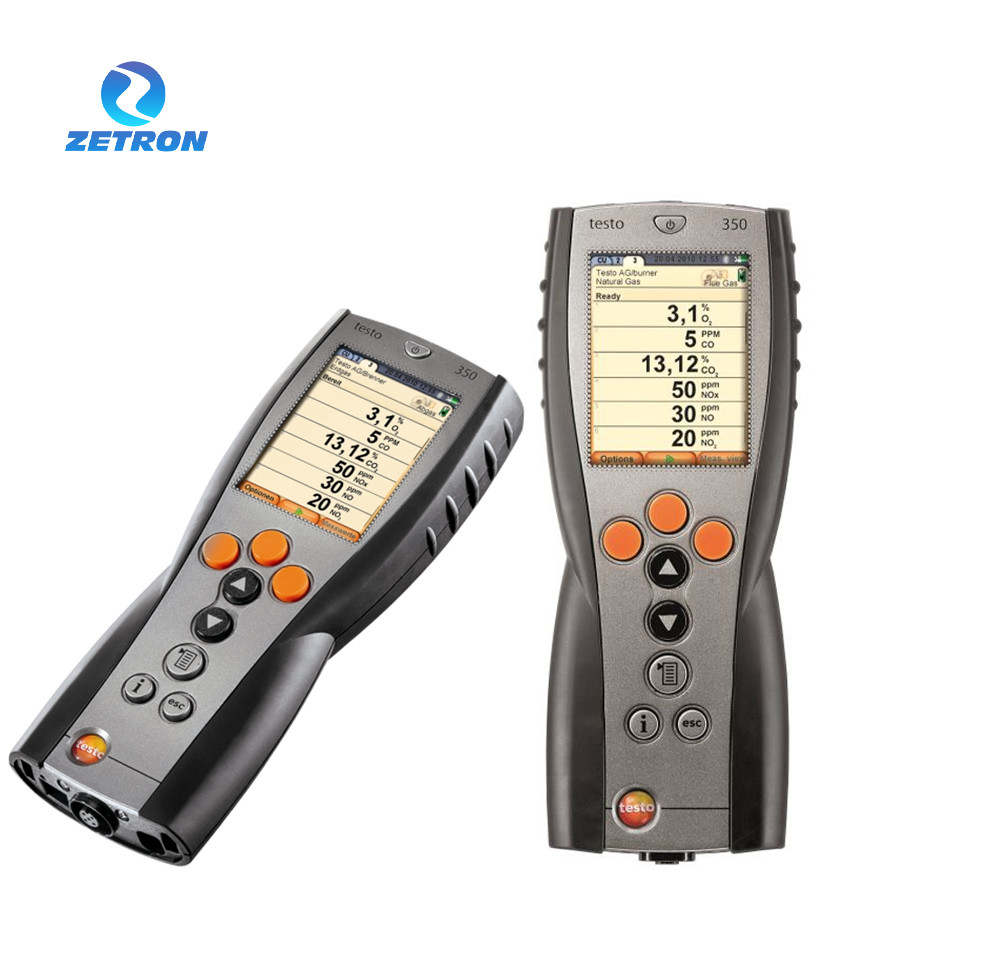

Testo 350 Portable Flue Gas Analyser In Industrial Sites

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number testo 350
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component CO, NO, NO2, SO2, H2S, CxHy And CO2. Protection Class IP40
Battery Life 5 Hours (without Wireless Connection) Operating Temperature -5 ~ +45 °C
Weight 440 G Size 88 X 38 X 220 Mm
Name Portable Flue Gas Analyzer Nitrogen Dioxide Sensor Of Flue Gas Emissions Keyword Portable Flue Gas Analyser
High Light

industrial sites portable flue gas analyser

,

testo 350 portable flue gas analyser

,

portable testo 350 flue gas analyzer

Leave a Message
Product Description

testo 350 Emissions gas analyzers



OVERVIEW



  • The testo 350 Communicator is used to operate, control the entire instrument and display measured values. Equipped with a clearly structured color display, the operation is extremely simple. There are 4 preset measurement application menus to choose from, namely: Combustor, Turbine, Engine and Custom. The menu navigation will guide you through your flue gas measurement tasks safely and easily, saving you time and effort. When the analysis box is fixed at the test site, it can be controlled remotely by the hand-held communicator. We recommend this application especially when making measurements on large systems.

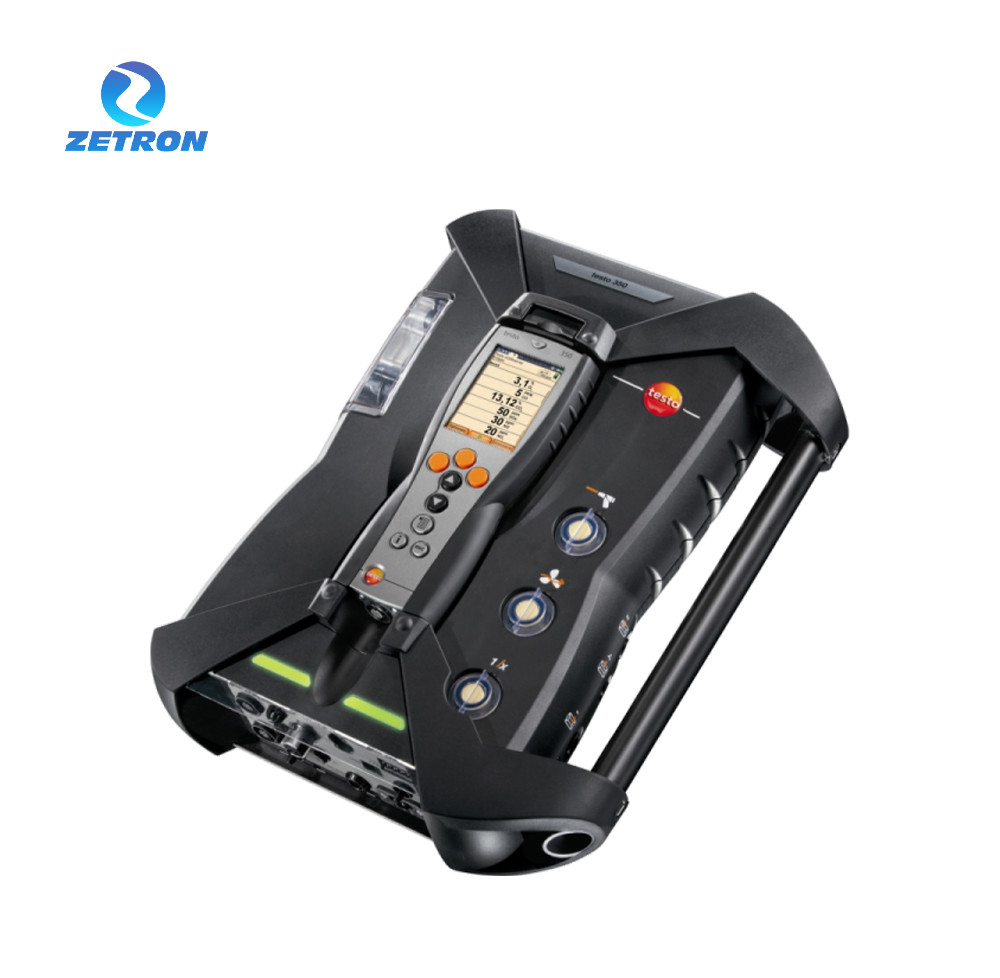

  • The testo 350 analysis box (sold separately) contains all the sensors and electronics required for flue gas analysis measurements. O2 sensor is standard, but at least one other (up to 5 optional) sensors can be selected for measurement. The optional sensors are: CO, CO 2, NO, NO2, SO2, H 2 S and CxHy .



FEATURES

• Modular sensor design ensures easy operation and maintenance.
• Compact and robust design with a lightweight, convenient for different site usage.
• With LCD display to indicate all data index and tactile keypad easy for operation.
• Equipped with sample gas flow meter and needle valve to regulate the inlet gas flow
• In-built sampling pump for the low-pressure application.
• External safety filter to protect analyzer from impurities
• Internal rechargeable Li-ion battery for over 4hrs full function operation
• Internal data logger for up to 1500 sets of data and RS232 COM port for data output.
• Online Heating Value calculation in real-time, freely switchable between MJ / m³ or kcal / m³, and between HHV or LHV.



SPECIFICATION



Display Features Graphic display
Display size 240 x 320 pixels
Operating temperature -5 ~ +45 °C
Shell TPE PC
Protection class IP40
Battery Type Lithium-Ion rechargeable battery pack, 2600 mAh, 3.7 V
Battery life 5 hours (without wireless connection)
Size 88 x 38 x 220 mm
Weight 440 g
Maximum memory 2 MB (250,000 readings)
Storage temperature -20 ~ +50 °C



Testo 350 Portable Flue Gas Analyser In Industrial Sites 0

APPLICATION

The testo 350 flue gas analyzer is specially designed for the analysis of flue gas emissions in industrial sites.
1. Natural gas, liquefied gas, gas leak detection.
2. Municipal gas pipeline leakage.
3.Rapid gas analysis or online analysis.
4. Natural gas pipeline leak monitoring.
5. Pollution source detection.
6. Industrial process site analysis.
7. Scientific research laboratory analysis.
8. Chemical fertilizer production.
9. Metallurgy.
10. Petrochemical.
11. Cement production.
12. Thermal power generation.
Testo 350 Portable Flue Gas Analyser In Industrial Sites 1
